Crankshaft Position Sensor: Installation

  1. INSTALL CRANKSHAFT POSITION SENSOR
    1. Install the sensor with the bolt.

      Torque: 6.5 N*m (66 kgf*cm, 57 in.*lbf)

    2. Connect the sensor connector.

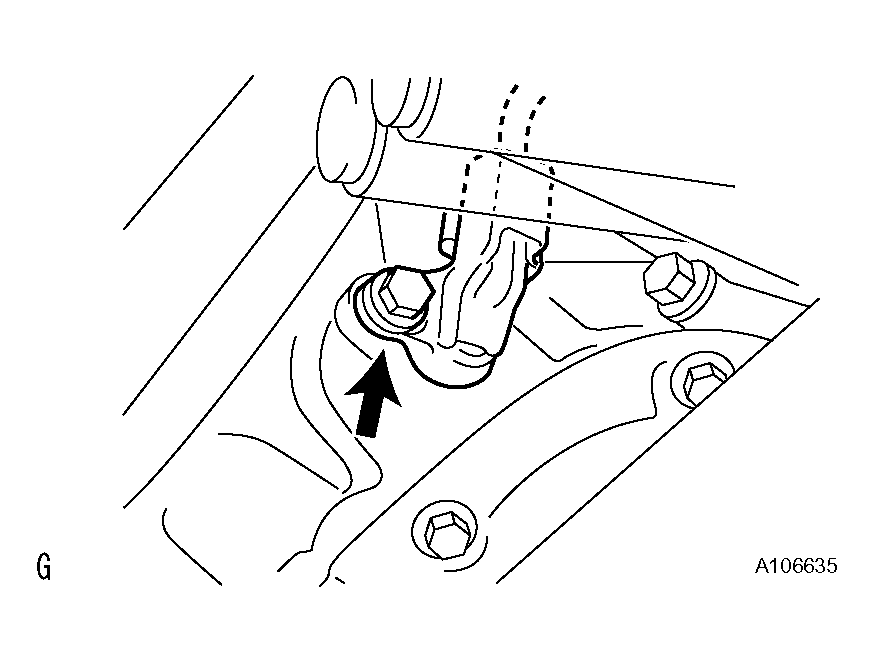

    Fig 1: Installing Crankshaft Position Sensor
    G04435529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 1 ENGINE UNDER COVER (See  INSTALLATION  )
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  4. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
