Crankshaft Position Sensor: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE NO. 1 ENGINE UNDER COVER (See  REMOVAL  )
  3. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.

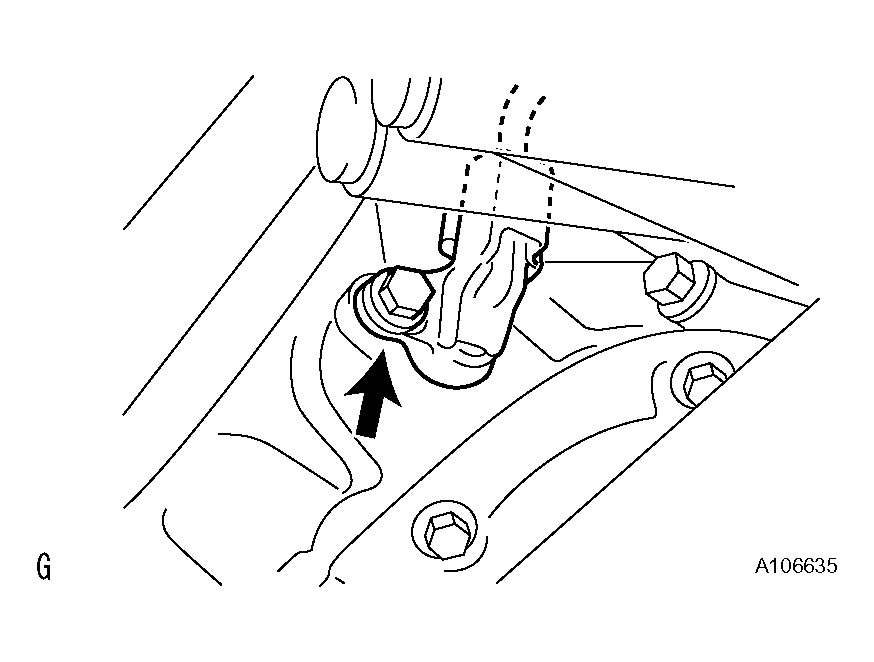

      Fig 1: Removing Crankshaft Position Sensor
      G04435527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
