On-Vehicle Inspection

  1. REMOVE EFI RELAY (Marking: EFI)
    1. Remove the engine room relay block cover.
    2. Remove the relay from the engine room relay block.
  2. CHECK EFI RELAY
    1. Measure the resistance of the relay.

      Standard resistance

      EFI RELAY

      Tester Connection Specified Condition
      1 - 3 10 kΩ or higher
      1 - 3 Below 1 Ω
      (when battery voltage is applied to terminals 2 and 4)

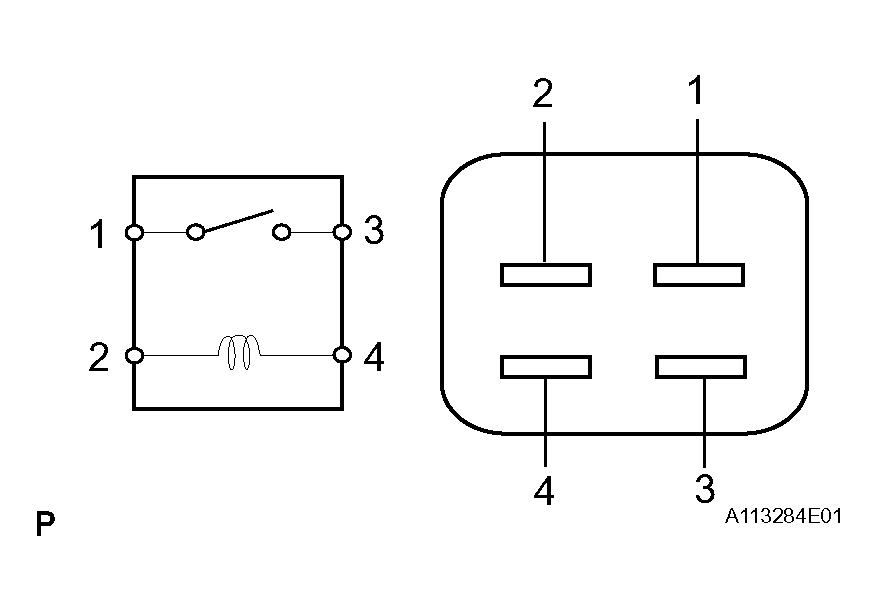

      Fig 1: Checking EFI Relay
      G04435554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the result is not as specified, replace the relay.

  3. INSTALL EFI RELAY
