Monitor Result
Refer to detailed information (see CHECKING MONITOR STATUS ).
The test value and test limit information are described in the following table. This information is included under MONITOR RESULT in the emissions-related DTC sections:
- Monitor Identification Data (MID) is assigned to each emissions-related component.
- Test Identification Data (TID) is assigned to each test value.
- Scaling is used to calculate the test value indicated on generic OBD II scan tools.
Thermostat
MONITOR RESULT
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit | ||
|---|---|---|---|---|---|---|---|

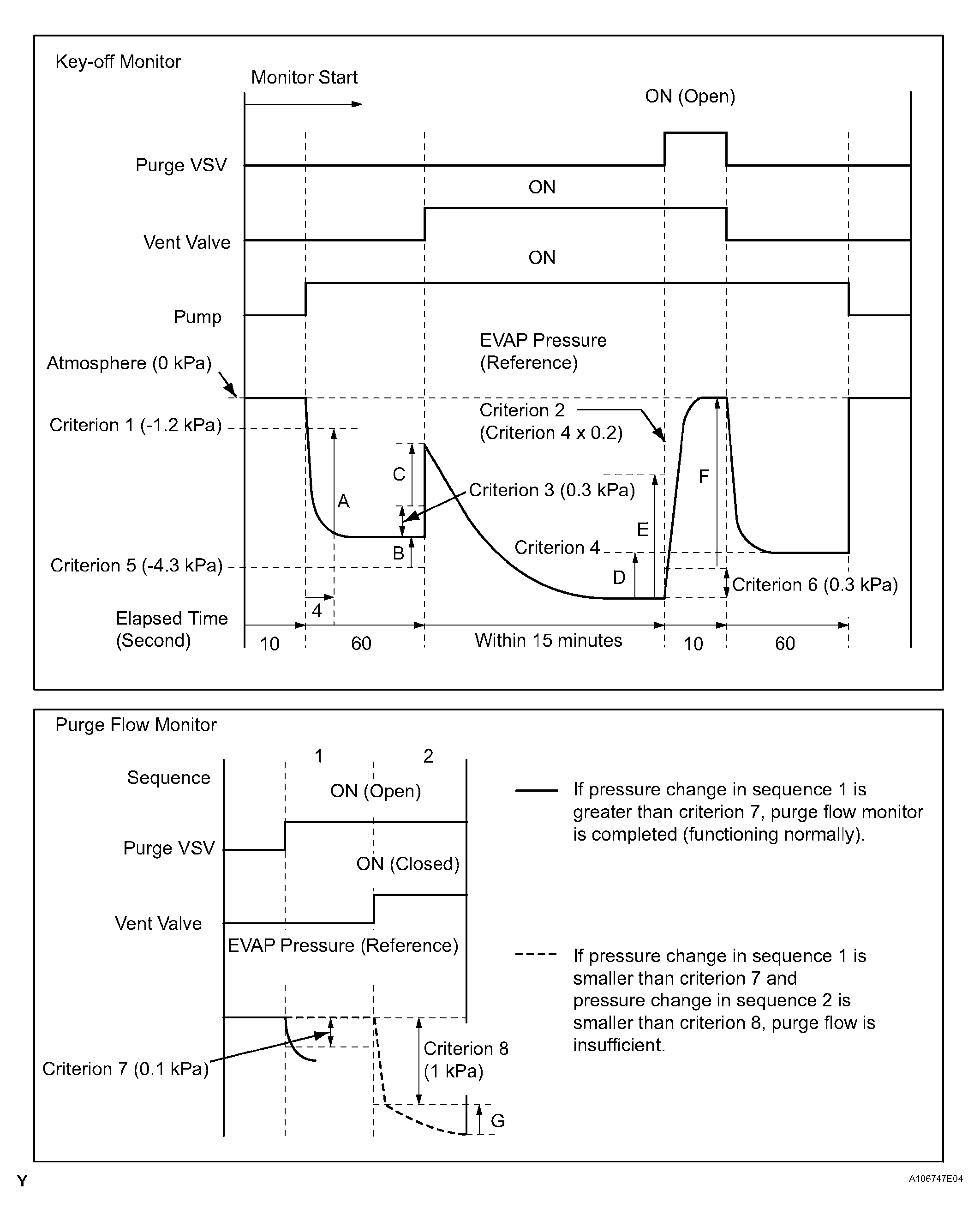

| $3D | $C9 | Multiply by 0.01 [kPa] | Test value for small leak (P0456) Refer to pressure D (1) |
Minimum test limit for small leak | Maximum test limit for small leak | ||
| $3D | $CA | Multiply by 0.01 [kPa] | Test value for gross leak (P0455) Refer to pressure E (1) |
Minimum test limit for gross leak | Maximum test limit for gross leak | ||
| $3D | $CB | Multiply by 0.01 [kPa] | Test value for leak detection pump stuck OFF (P2401) Refer to pressure A (1) |
Minimum test limit for leak detection pump stuck OFF | Maximum test limit for leak detection pump stuck OFF | ||
| $3D | $CD | Multiply by 0.01 [kPa] | Test value for leak detection pump stuck ON (P2402) Refer to pressure A (1) |
Minimum test limit for leak detection pump stuck ON | Maximum test limit for leak detection pump stuck ON | ||
| $3D | $CE | Multiply by 0.01 [kPa] | Test value for vent valve stuck OFF (vent) (P2420) Refer to pressure C (1) |
Minimum test limit for vent valve stuck ON | Maximum test limit for vent valve stuck ON | ||
| $3D | $CF | Multiply by 0.01 [kPa] | Test value for vent valve stuck ON (P2419) Refer to pressure A (1) |
Minimum test limit for vent valve stuck OFF | Maximum test limit for vent valve stuck OFF | ||
| $3D | $D0 | Multiply by 0.01 [kPa] | Test value for reference orifice low flow (P043E) Refer to pressure B (1) |
Minimum test limit for reference orifice low flow | Maximum test limit for reference orifice low flow | ||
| $3D | $D1 | Multiply by 0.01 [kPa] | Test value for reference orifice high flow (P043F) Refer to pressure A (1) |
Minimum test limit for reference orifice high flow | Maximum test limit for reference orifice high flow | ||
| $3D | $D4 | Multiply by 0.01 [kPa] | Test value for purge VSV stuck closed (P0441) Refer to pressure F (1) |
Minimum test limit for purge VSV stuck closed | Maximum test limit for purge VSV stuck closed | ||
| $3D | $D5 | Multiply by 0.01 [kPa] | Test value for purge VSV stuck open (P0441) Refer to pressure E (1) |
Minimum test limit for purge VSV stuck open | Maximum test limit for purge VSV stuck open | ||
| $3D | $D7 | Multiply by 0.01 [kPa] | Test value for purge flow (P0441) Refer to pressure G (1) |
Minimum test limit for purge flow | Maximum test limit for purge flow | ||
|
|||||||
