Knock Sensor: Inspection

INSPECT KNOCK CONTROL SENSOR
1. Measure the resistance between the terminals.
  Standard resistance: 120 to 280 kΩ at 20°C (68°F)

  If the result is not as specified, replace the sensor.

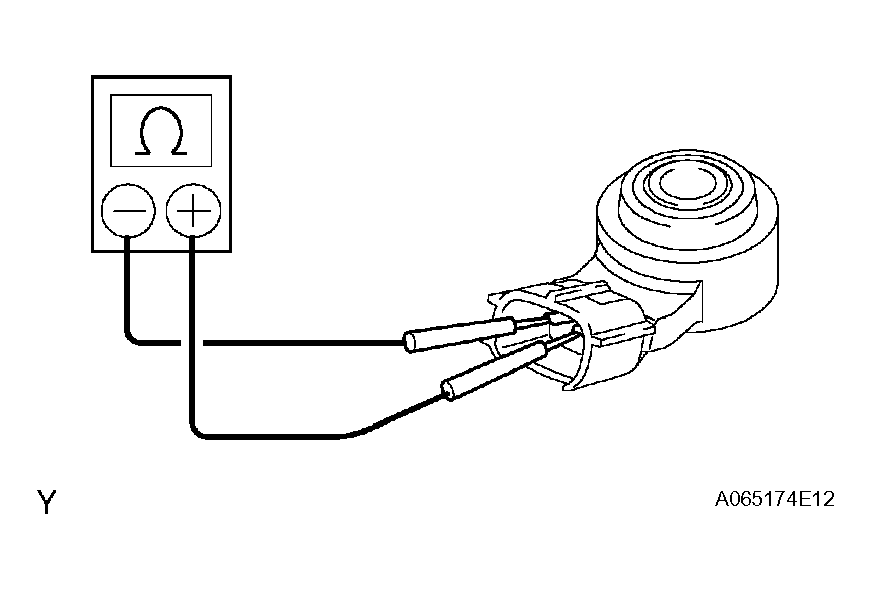

  Fig 1: Inspecting Knock Control Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
