Knock Sensor: Removal

  1. DISCHARGE FUEL SYSTEM PRESSURE (See  ON-VEHICLE INSPECTION  )
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  3. DRAIN ENGINE COOLANT (See  COOLANT  )
  4. REMOVE V-BANK COVER SUB-ASSEMBLY (See  REMOVAL   )
  5. DISCONNECT FUEL RETURN HOSE (See  REMOVAL  )
  6. DISCONNECT FUEL MAIN HOSE (See  REMOVAL  )
  7. REMOVE INTAKE AIR CONNECTOR PIPE (See  REMOVAL   )
  8. REMOVE INTAKE MANIFOLD ASSEMBLY (See  REMOVAL  )
  9. REMOVE AIR PUMP ASSEMBLY (See  REMOVAL  )
  10. REMOVE KNOCK CONTROL SENSOR
    1. Disconnect the 2 knock sensor connectors.
    2. Remove the nut and 2 knock sensors.

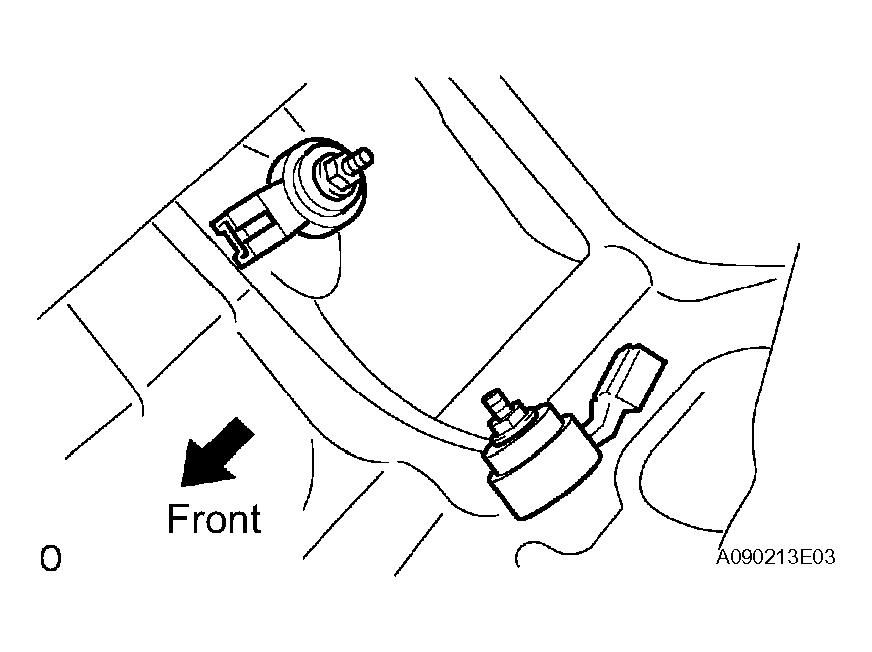

    Fig 1: Removing Knock Control Sensor
    G04435547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
