Inspection Procedure

1. Perform troubleshooting in accordance with REFERENCE TABLE  .
   MILL IS ILLUMINATED



   Condition	Proceed to
   MIL remains ON	A
   MIL does not illuminate	B

B: Go to step   5

A: GO TO NEXT STEP

1. Connect the intelligent tester to the CAN VIM. Then connect the CAN VIM to the DLC3.
2. Turn the ignition switch ON and turn the intelligent tester ON.
3. Check whether any DTCs have been stored (see DIAGNOSTIC TROUBLE CODE TABLE ). Note them down if necessary.
4. Clear the DTC (see DTC CHECK/CLEAR ).
5. Check if the MIL turns off.

   OK: MIL should turn off.

OK: REPAIR CIRCUIT INDICATED BY OUTPUT DTC

NG: GO TO NEXT STEP

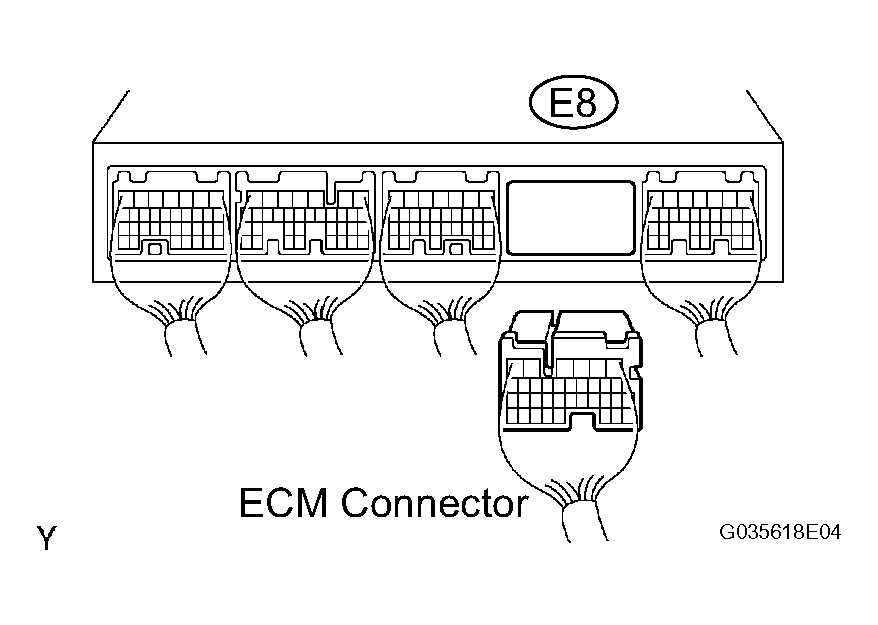

1. Disconnect the E8 ECM connector.
2. Turn the ignition switch ON.
3. Check that the MIL is not illuminated.

   OK: MIL is not illuminated.

Fig 1: Checking Harness & Connector (Check For Short In Wire Harness)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: REPLACE ECM

NG: GO TO NEXT STEP

1. Check harness and connector (see ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).

OK: REPAIR OR REPLACE COMBINATION METER

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

1. Check that the MIL is illuminated when turning the ignition switch ON.

   OK: MIL is illuminated.

OK: SYSTEM OK

NG: GO TO NEXT STEP

1. Turn the ignition switch ON.
2. Start the engine.
   ENGINE STARTS



   Result	Proceed to
   Engine starts	A
   Engine does not start*	B

   HINT:

   *: The intelligent tester cannot communicate with the ECM.

B: GO TO  VC OUTPUT CIRCUIT

A: GO TO NEXT STEP

1. See the combination meter troubleshooting article (see HOW TO PROCEED WITH TROUBLESHOOTING ).

NG: REPAIR OR REPLACE COMBINATION METER

OK: CHECK AND REPLACE HARNESS OR CONNECTOR (COMBINATION METER - ECM)
