Mass Air Flow Meter: Installation

INSTALL MASS AIR FLOW METER
1. Install the MAF meter with the 2 screws.
2. Connect the MAF meter connector.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

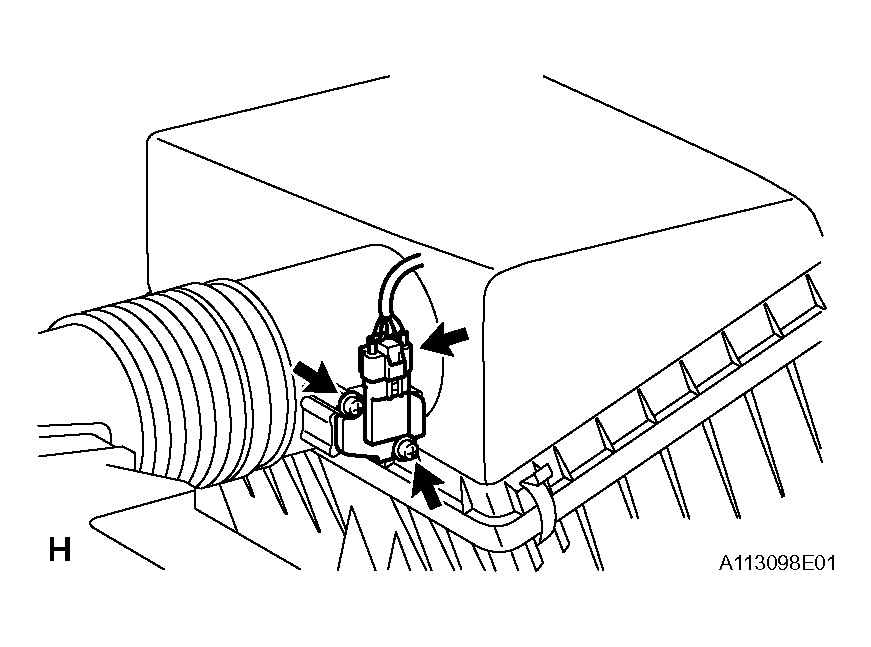

Fig 1: Installing Mass Air Flow Meter
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
