Supplemental Restraint System: SST

SUPPLEMENTAL RESTRAINT SYSTEM

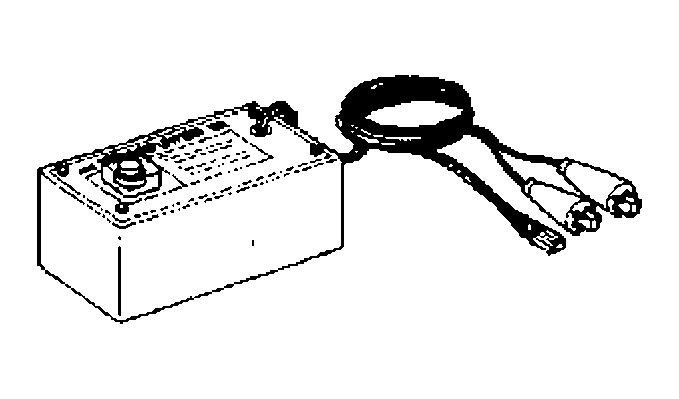

G04434976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00700 SRS Airbag Deployment Tool -

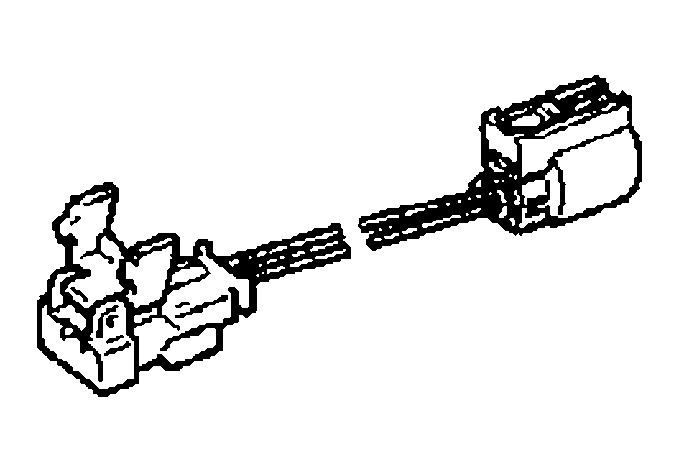

G04434977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00750 Airbag Deployment Wire Sub-harness No.3 -
G04434978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00780 Airbag Deployment Wire Sub-harness No.6 -

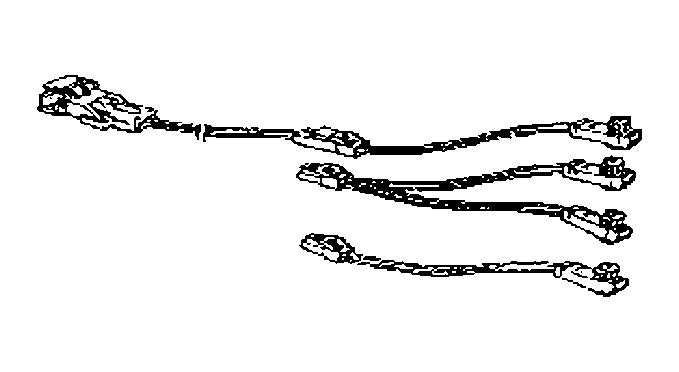

G04434979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00802 Airbag Deployment Wire Sub-Harness No. 8 -

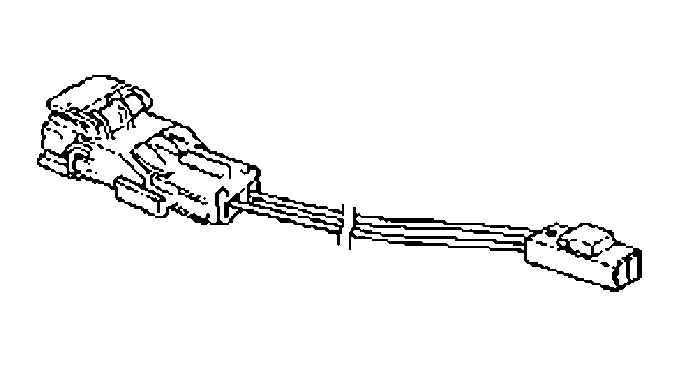

G04434980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09082-10801) Wire A -

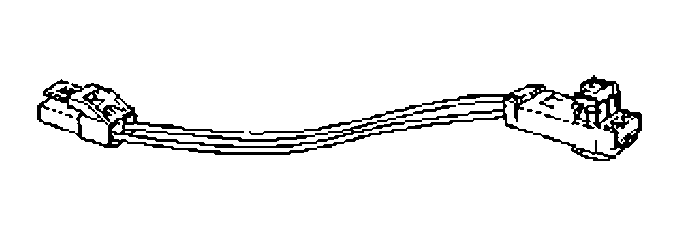

G04434981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09082-20801) Wire B -

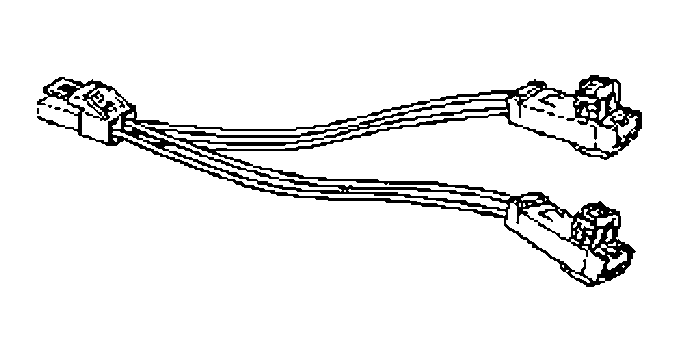

G04434982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09082-30801) Wire C -
