Knock Sensor: Components

Fig 1: Identifying Knock Sensor Components & Replacements (1 Of 3)
G04435544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

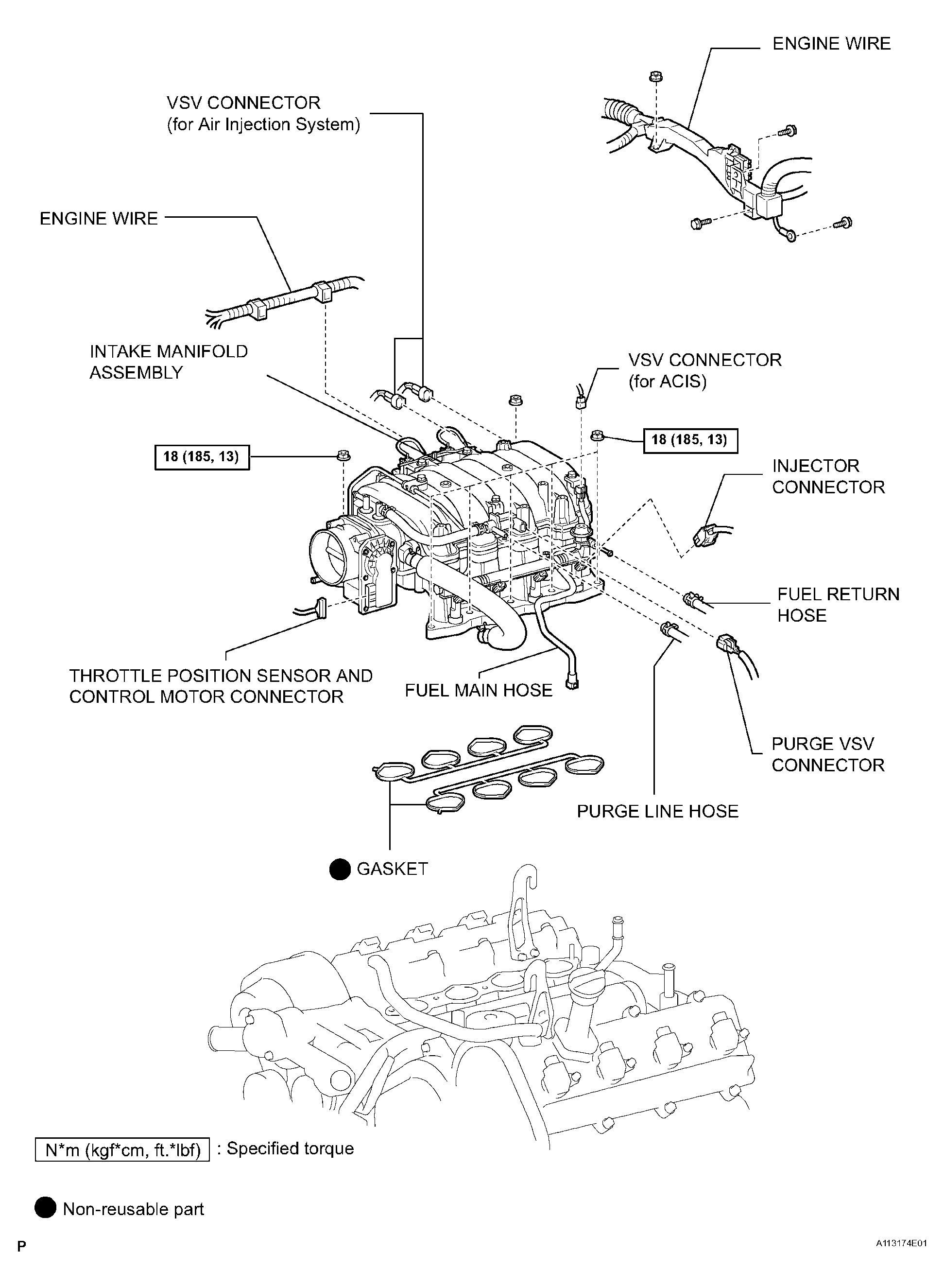

Fig 2: Identifying Knock Sensor Components & Replacements (2 Of 3)
G04435545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

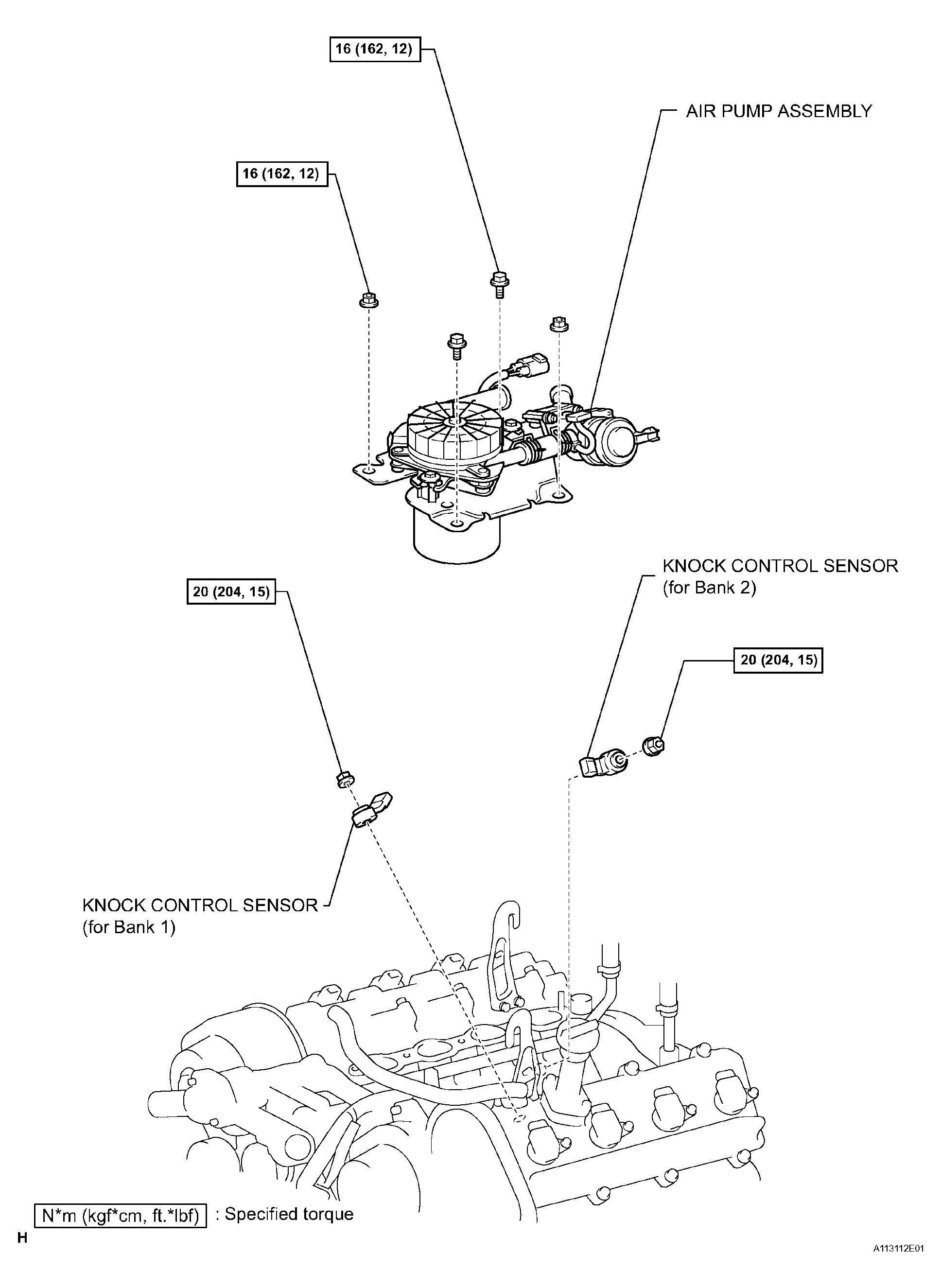

Fig 3: Identifying Knock Sensor Components & Replacements (3 Of 3)
G04435546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
