Throttle Body: Components

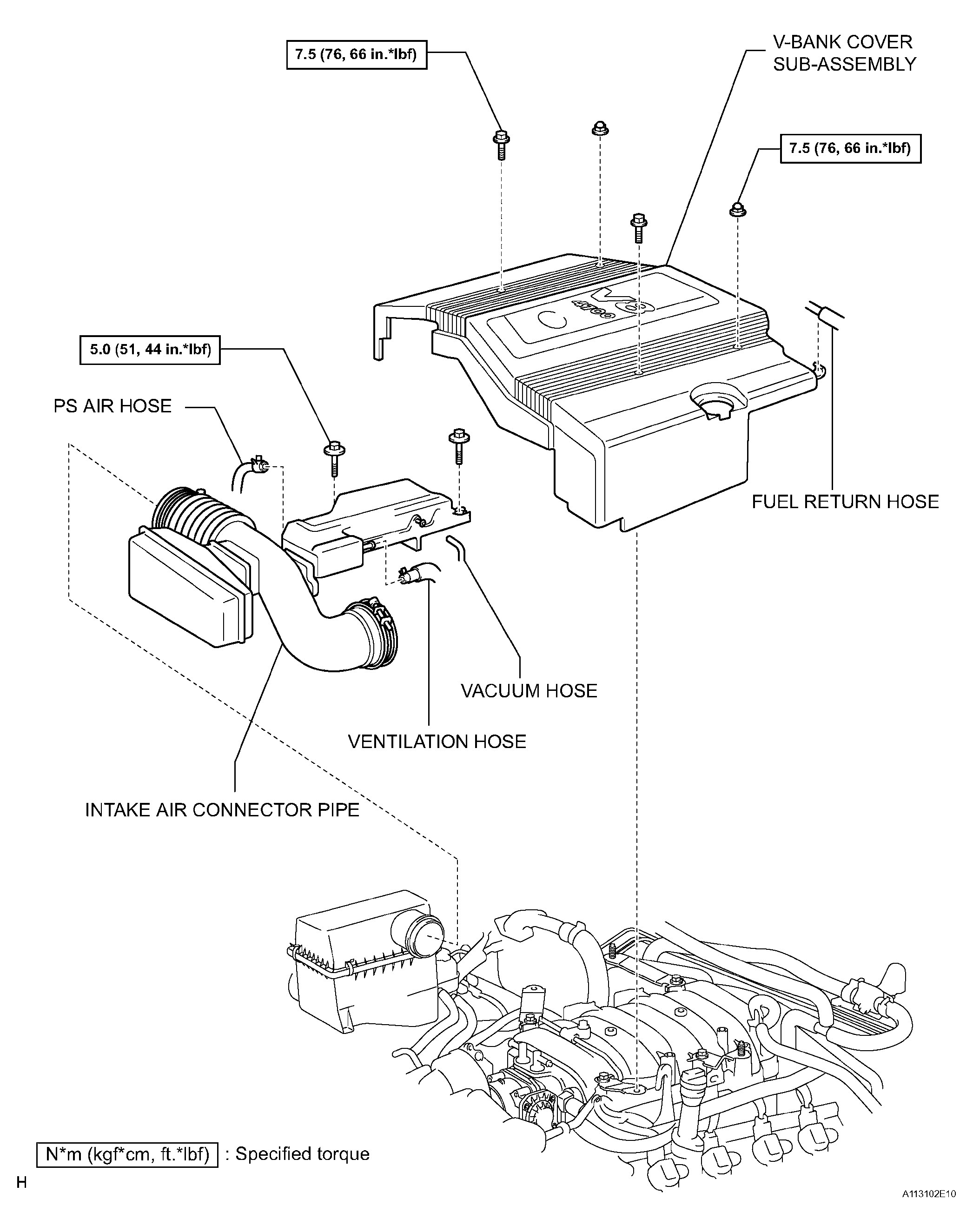

Fig 1: Identifying Throttle Body Components & Replacements (1 Of 2)
G04435535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

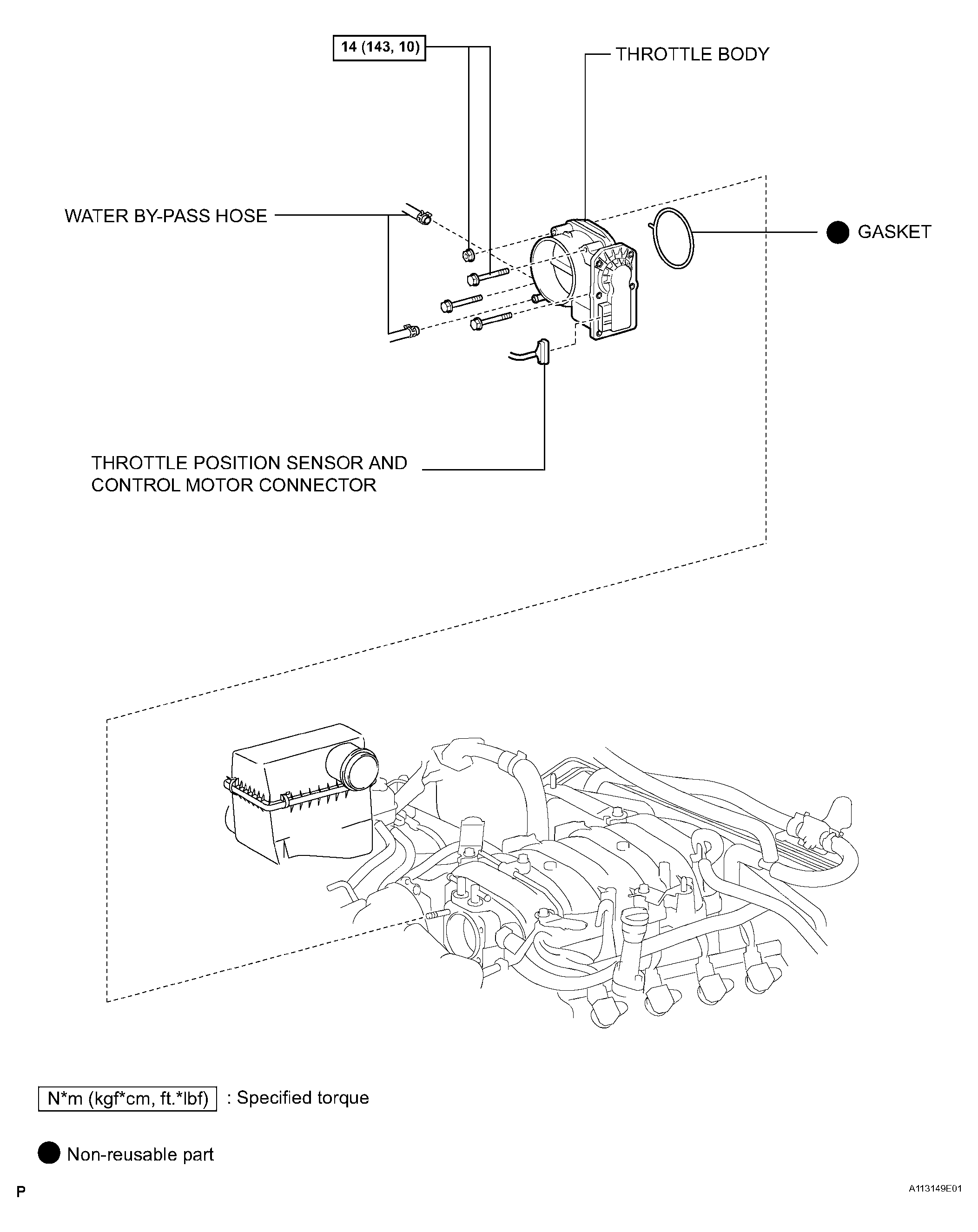

Fig 2: Identifying Throttle Body Components & Replacements (2 Of 2)
G04435536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
