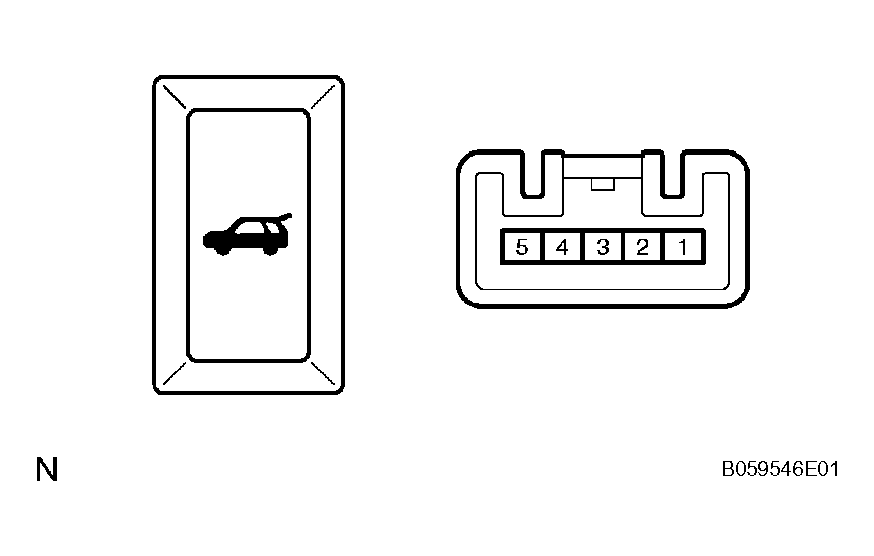

Measure the resistance according to the value(s) in the table below.Standard resistance
TERMINAL NO. AND SPECIFIED CONDITION REFERENCE
| Terminal No. |
Switch Position |
Specified Condition |
| 1 - 3 |
Free |
Below 1 Ω |
| 2 - 3 |
Not pushed |
Below 1 Ω |
If the result is not as specified, replace the switch assembly.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
