Power Window Master Switch: Inspection

  1. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
    1. Measure the resistance of the master switch.

      Standard resistance:

      Driver's switch (Window unlock and lock)

      TESTER CONNECTION AND SPECIFIED CONDITION REFERENCE (DRIVER'S SWITCH (WINDOW UNLOCK AND LOCK))

      Switch Condition Tester Connection Specified Condition
      UP DU (4) - B (6) - B (7) Below 1 Ω
      E (1) - E (3) - DD (9)
      OFF E (1) - E (3) - DU (4) Below 1 Ω
      E (1) - E (3) - DD (9)
      DOWN E (1) - E (3) - DU (4) Below 1 Ω
      B (6) - B (7) - DD (9)
      DOWN AUTO E (1) - E (3) - DU (4) Below 1 Ω
      B (6) - B (7) - DD (9)

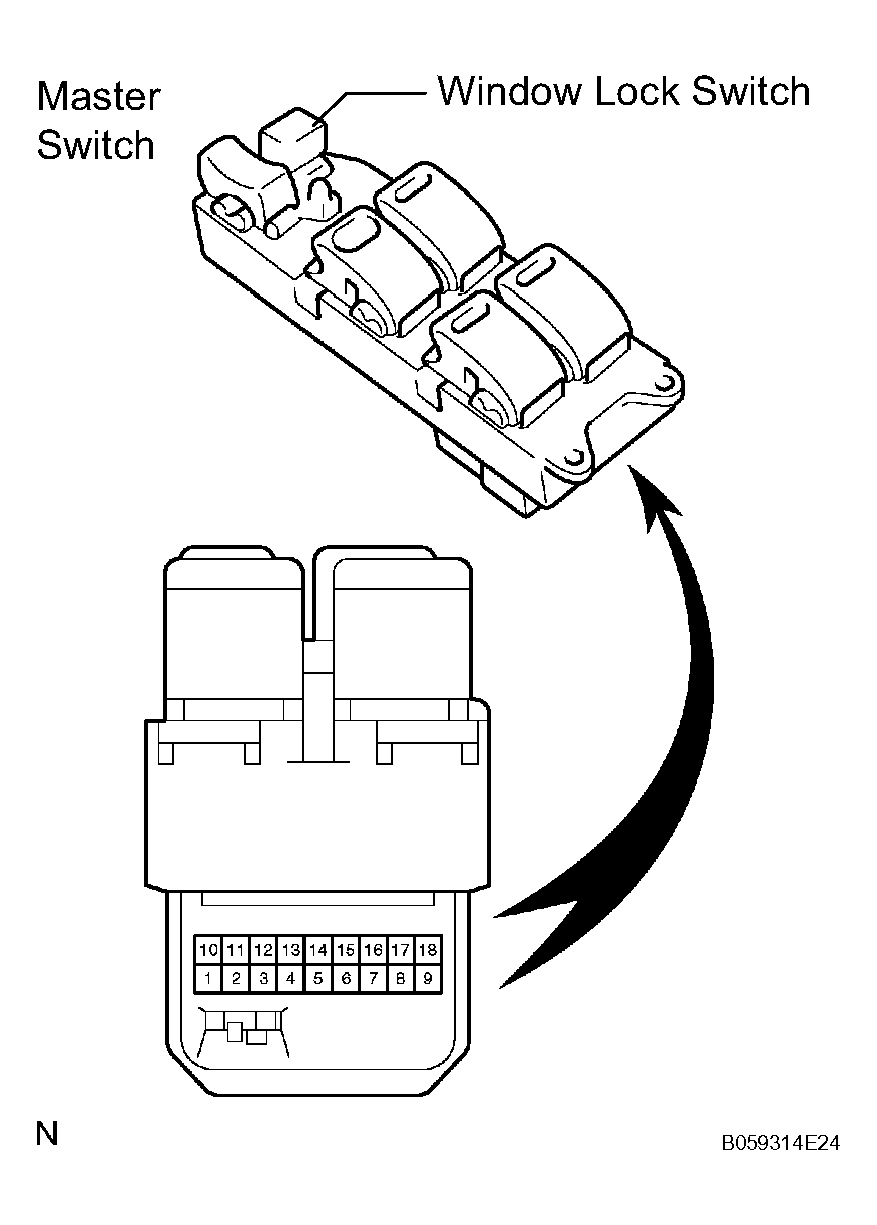

      Fig 1: Inspecting Power Window Regulator Master Switch Assembly
      G04466785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Front passenger's switch (Window unlock)

      TESTER CONNECTION AND SPECIFIED CONDITION REFERENCE (FRONT PASSENGER'S SWITCH (WINDOW UNLOCK))

      Switch Condition Tester Connection Specified Condition
      UP E (1) - E (3) - PD (15) Below 1 Ω
      B (6) - B (7) - PU (18)
      OFF E (1) - E (3) - PD (15) Below 1 Ω
      E (1) - E (3) - PU (18)
      DOWN E (1) - E (3) - PU (18) Below 1 Ω
      B (6) - B (7) - PD (15)

      Front passenger's switch (Window lock)

      TESTER CONNECTION AND SPECIFIED CONDITION REFERENCE (FRONT PASSENGER'S SWITCH (WINDOW LOCK))

      Switch Condition Tester Connection Specified Condition
      UP B (6) - B (7) - PU (18) Below 1 Ω
      OFF PD (15) - PU (18) Below 1 Ω
      DOWN B (6) - B (7) - PD (15) Below 1 Ω

      Rear left switch (Window unlock)

      TESTER CONNECTION AND SPECIFIED CONDITION REFERENCE (REAR LEFT SWITCH (WINDOW UNLOCK))

      Switch Condition Tester Connection Specified Condition
      UP E (1) - E (3) - RLD (13) Below 1 Ω
      B (6) - B (7) - RLU (12)
      OFF E (1) - E (3) - RLD (13) Below 1 Ω
      E (1) - E (3) - RLU (12)
      DOWN E (1) - E (3) - RLU (12) Below 1 Ω
      B (6) - B (7) - RLD (13)

      Rear left switch (Window lock)

      TESTER CONNECTION AND SPECIFIED CONDITION REFERENCE (REAR LEFT SWITCH (WINDOW LOCK))

      Switch Condition Tester Connection Specified Condition
      UP B (6) - B (7) - RLU (12) Below 1 Ω
      OFF RLU (12) - RLD (13) Below 1 Ω
      DOWN B (6) - B (7) - RLD (13) Below 1 Ω

      Rear right switch (Window unlock)

      TESTER CONNECTION AND SPECIFIED CONDITION REFERENCE (REAR RIGHT SWITCH (WINDOW UNLOCK))

      Switch Condition Tester Connection Specified Condition
      UP B (6) - B (7) - RRU (10) Below 1 Ω
      E (1) - E (3) - RRD (16)
      OFF E (1) - E (3) - RRU (10) Below 1 Ω
      E (1) - E (3) - RRD (16)
      DOWN E (1) - E (3) - RRU (10) Below 1 Ω
      B (6) - B (7) - RRD (16)

      Rear right switch (Window lock)

      TESTER CONNECTION AND SPECIFIED CONDITION REFERENCE

      Switch Condition Tester Connection Specified Condition
      UP B (6) - B (7) - RRU (10) Below 1 Ω
      OFF RRU (10) - RRD (16) Below 1 Ω
      DOWN B (6) - B (7) - RRD (16) Below 1 Ω

      If the result is not as specified, replace the master switch.

    2. Inspect the master switch illumination.

      Standard:

      MEASUREMENT CONNECTION AND SPECIFIED CONDITION REFERENCE

      Measurement Condition Specified Condition
      Battery positive (+) --> Terminal 6
      Battery negative (-) --> Terminal 3      		 Switch illumination lights up

      If the result is not as specified, replace the master switch.

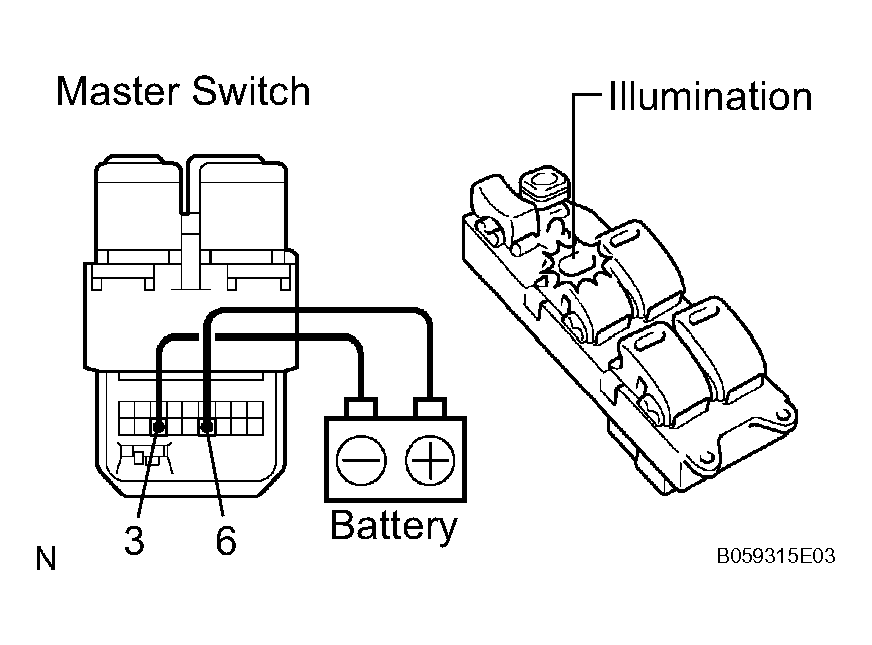

      Fig 2: Inspecting Master Switch Illumination
      G04466786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
