Audio System for Built-In Amplifier: Notes

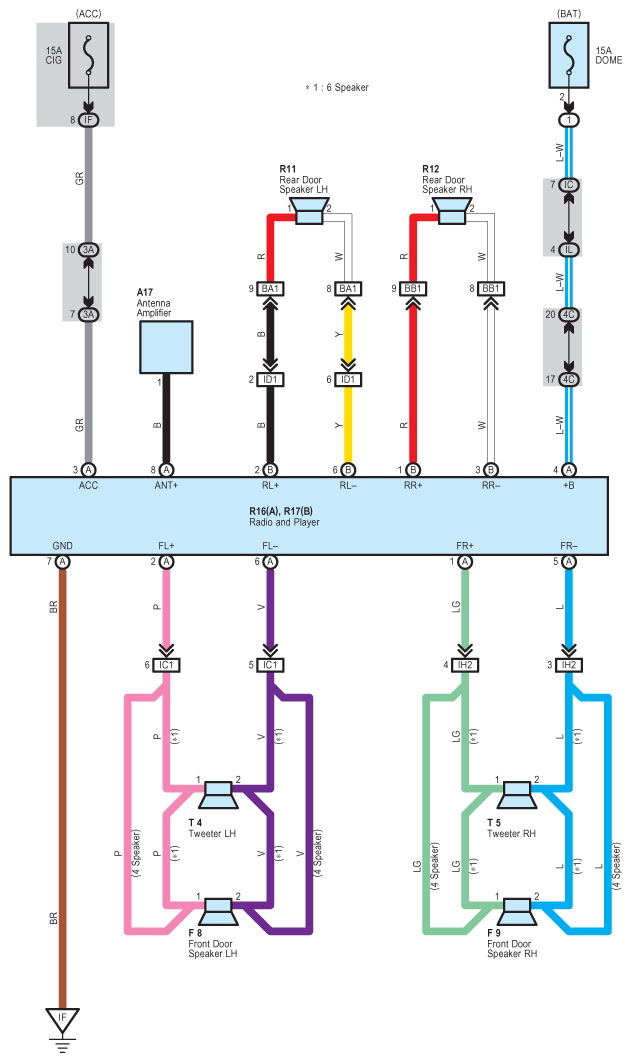

Fig 1: Audio System (For Built-In Amplifier) Wiring Diagram
G08838220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
