Audio System for Separate Amplifier: Notes

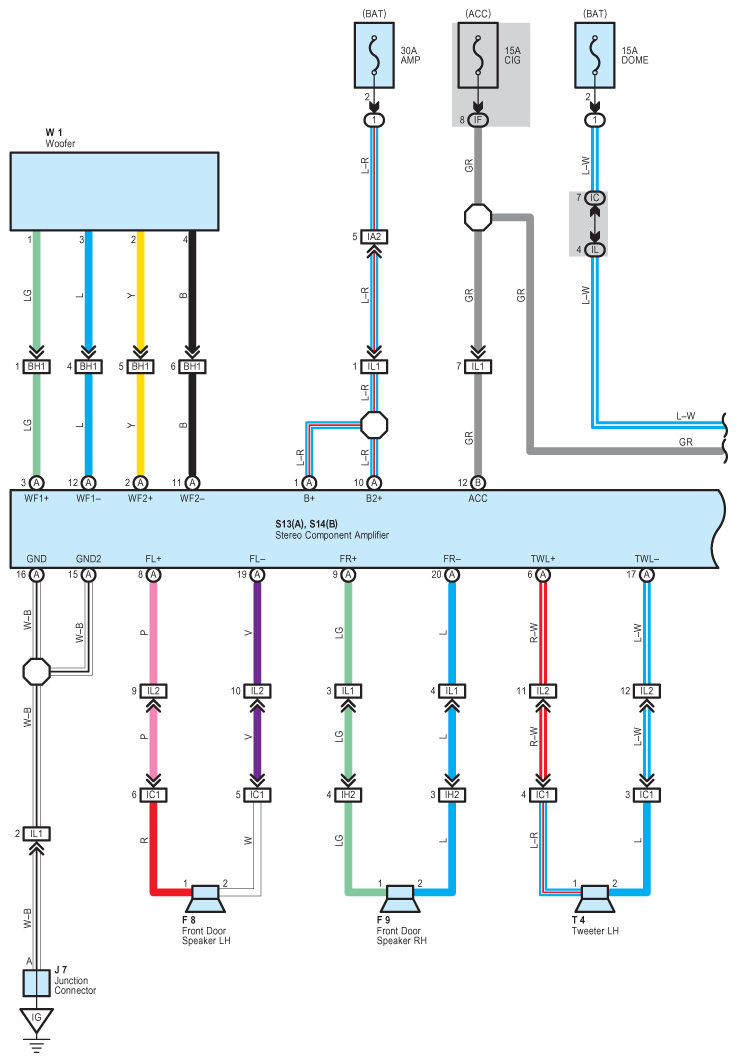

Fig 1: Audio System (For Separate Amplifier) Wiring Diagram (1 Of 2)
G08838218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

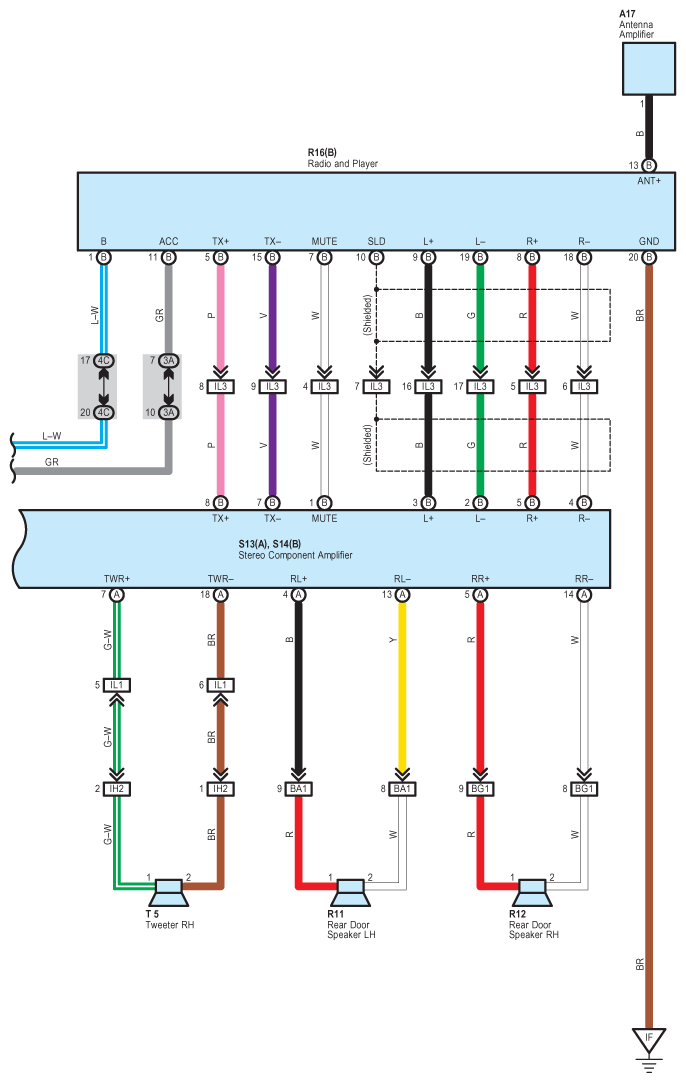

Fig 2: Audio System (For Separate Amplifier) Wiring Diagram (2 Of 2)
G08838219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
