OEM System Circuits: Heater: Notes

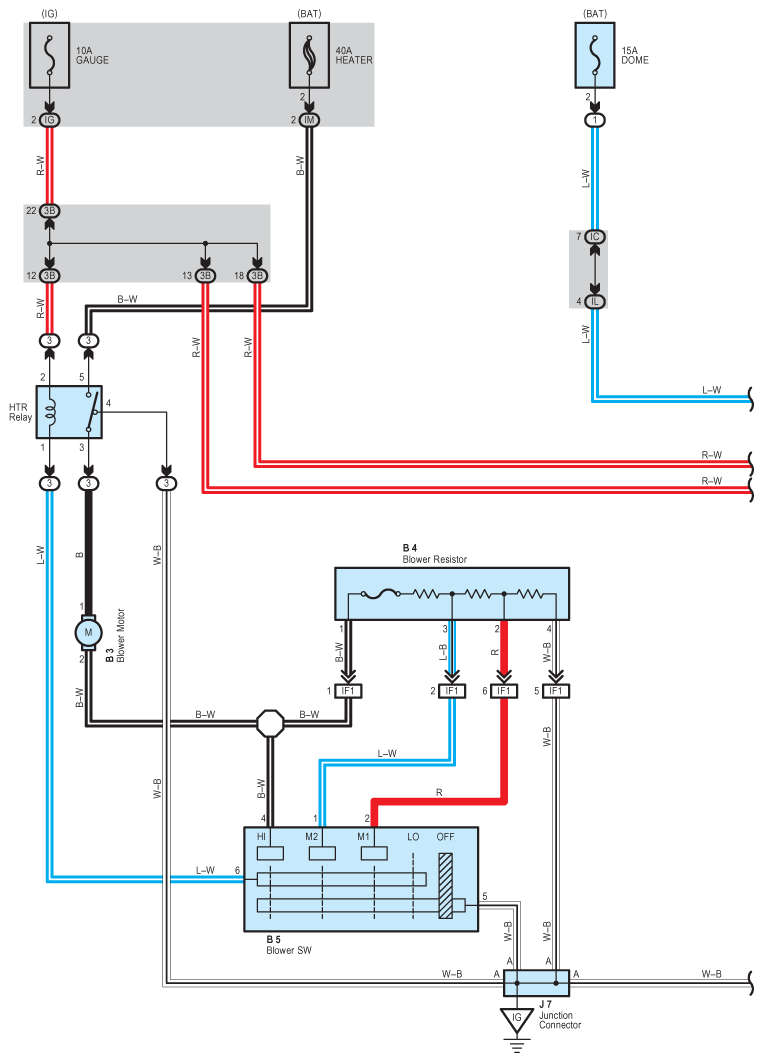

Fig 1: Heater System Wiring Diagram (1 Of 2)
G08838227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

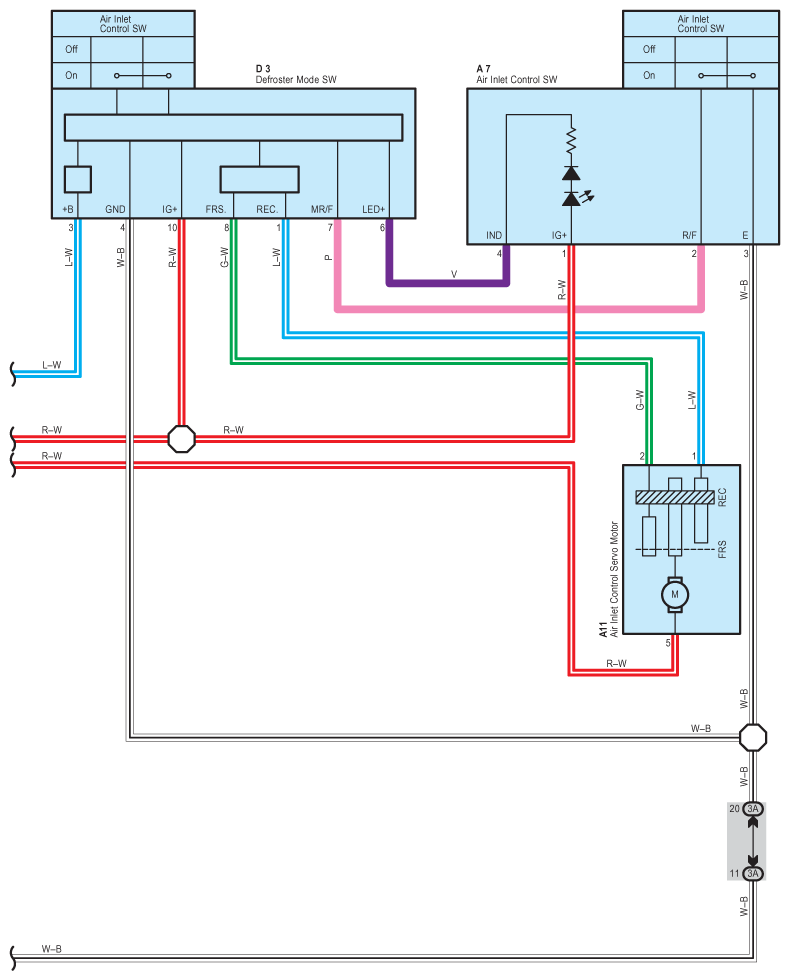

Fig 2: Heater System Wiring Diagram (2 Of 2)
G08838228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
