Light Reminder and Key Reminder: Notes

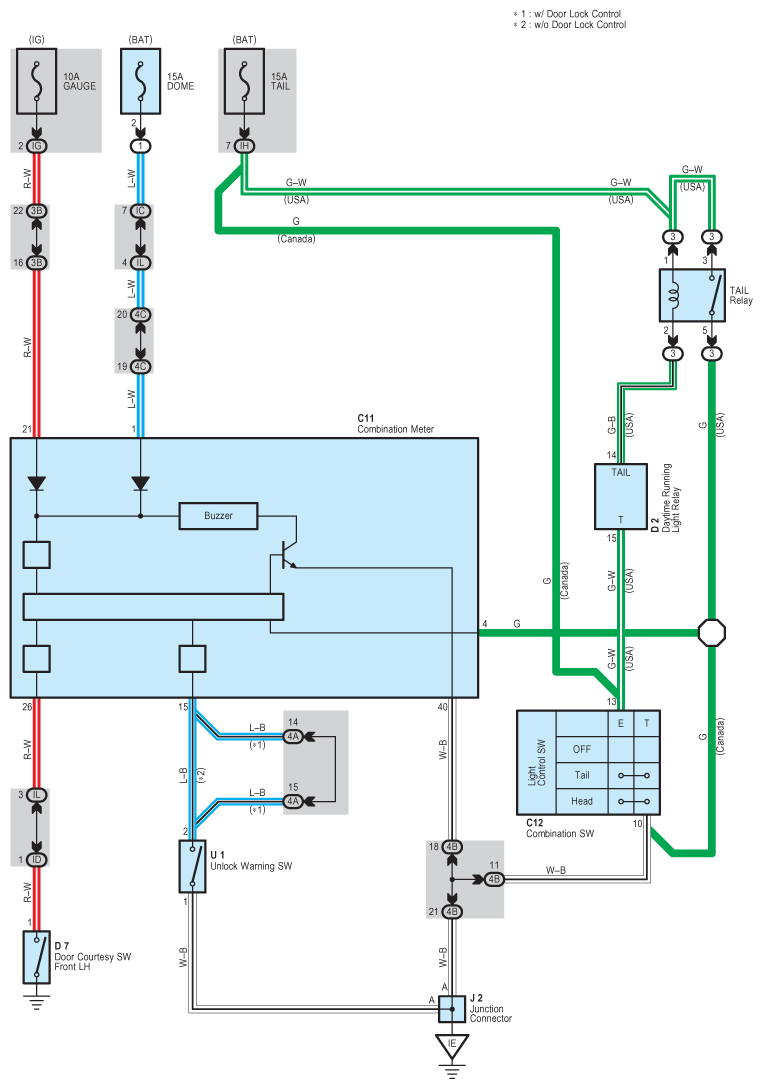

Fig 1: Light Reminder And Key Reminder System Wiring Diagram
G08838213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
