Multiplex Communication System - CAN Bus: Notes

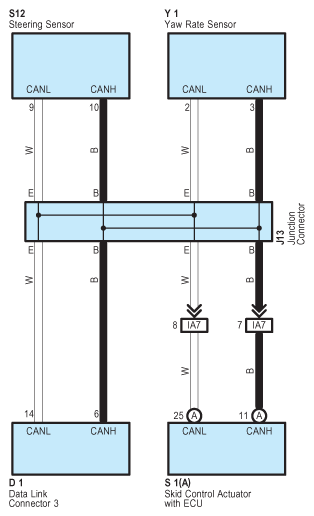

Fig 1: Multiplex Communication System Wiring Diagram (CAN Bus)
G08838149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
