Toyota
>>
2006
>>
Matrix Base, 4WD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Power Outlet for 115V
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Power Outlet for 115V: Notes

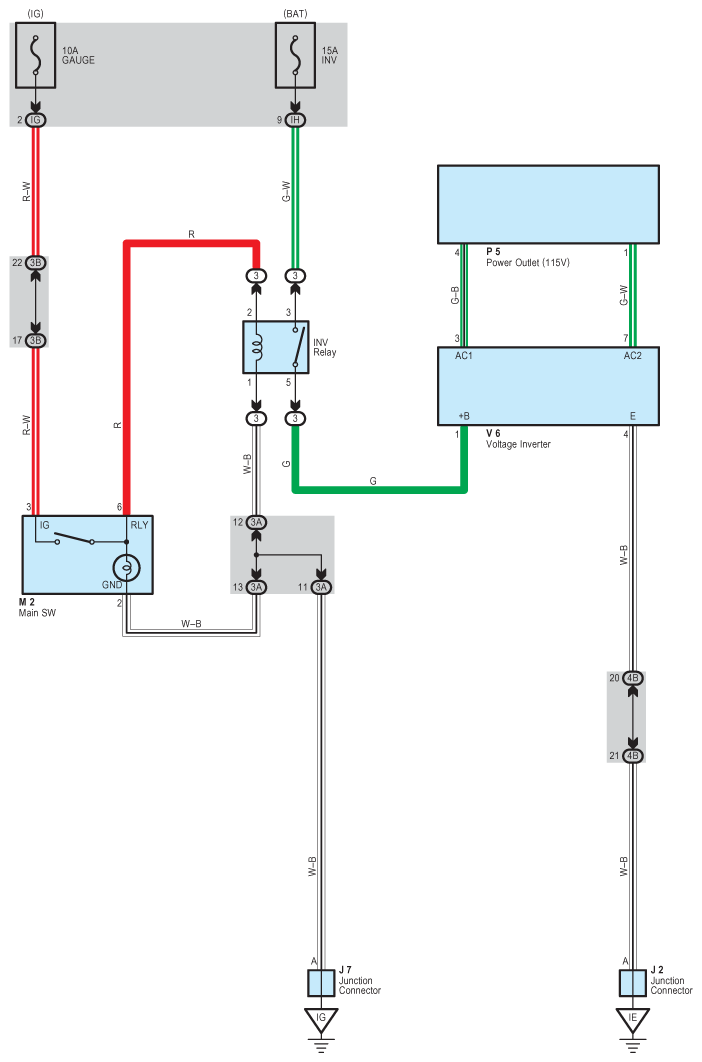

Fig 1: Power Outlet System Wiring Diagram (For 115V)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
