Supplemental Restraint System: SST

SUPPLEMENTAL RESTRAINT SYSTEM SPECIAL SERVICE TOOL

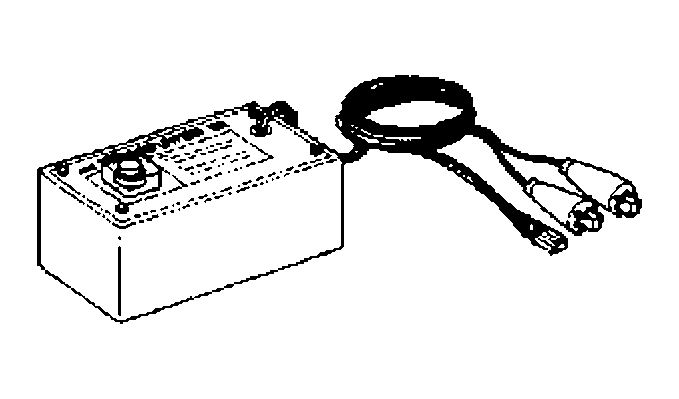

G04459615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00700 SRS Airbag Deployment Tool

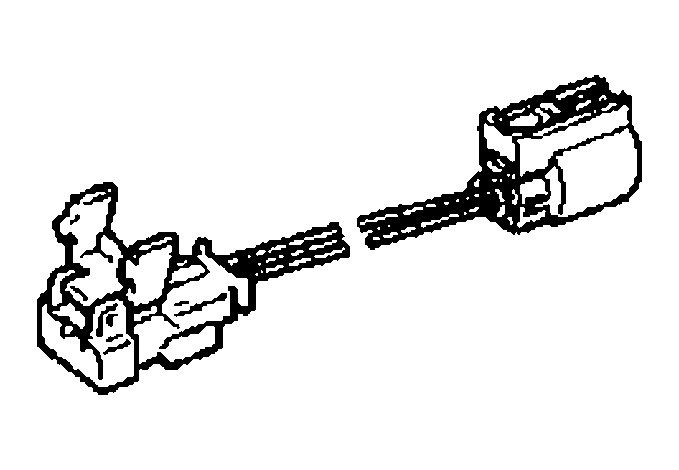

G04459616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00750 Airbag Deployment Wire Sub-harness No.3

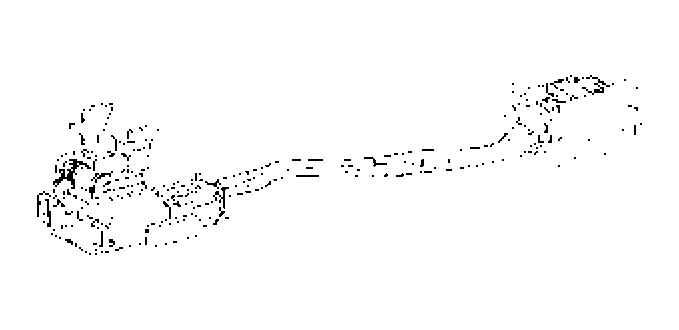

G04459617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00780 Airbag Deployment Wire Sub-harness No.6

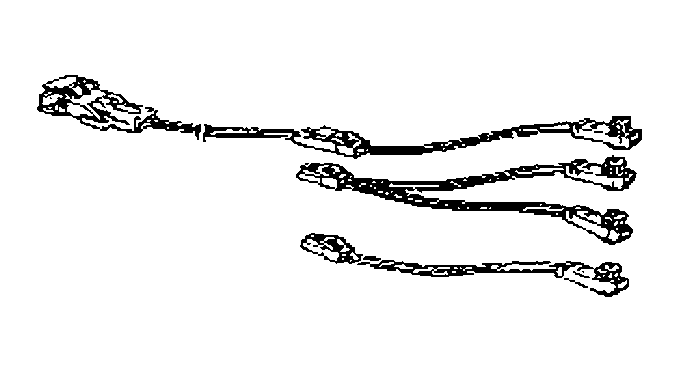

G04459618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00802 Airbag Deployment Wire Sub-Harness No. 8

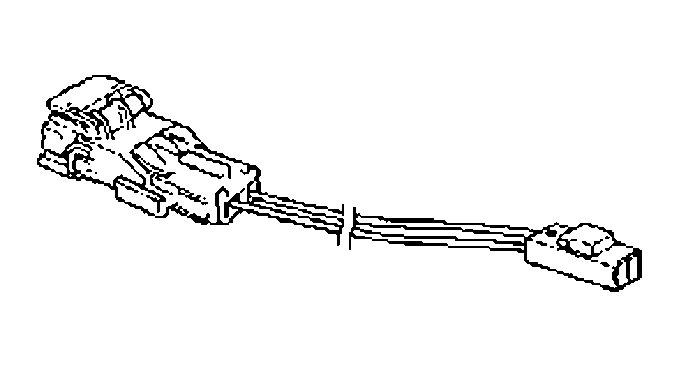

G04459619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09082-10801) Wire A

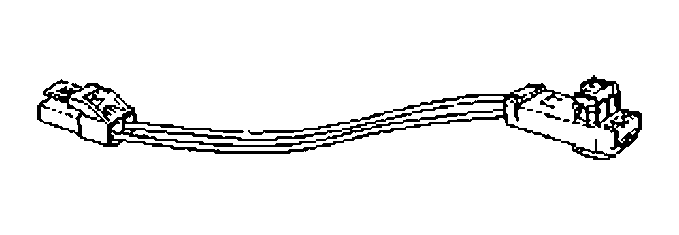

G04459620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09082-20801) Wire B

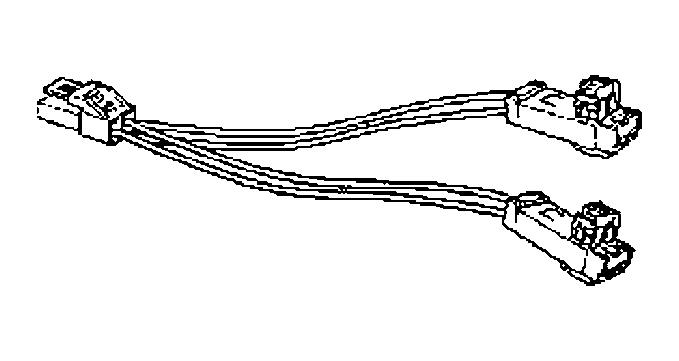

G04459621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09082-30801) Wire C

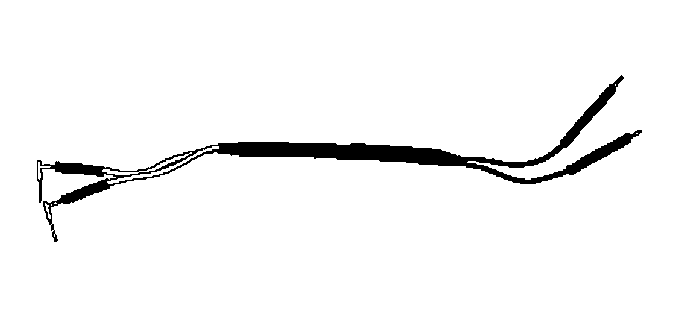

G04459622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09843-18060 SRS Check Wire
