Ignition System: Preparation: Axle: SST

AXLE SPECIAL SERVICE TOOL

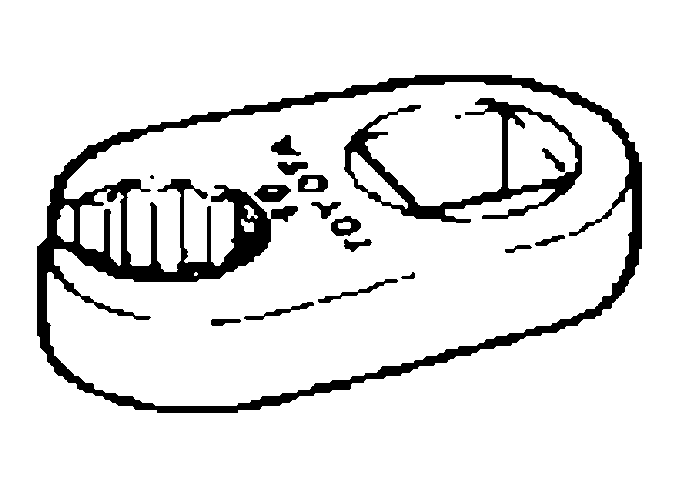

G04459482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
09023-00101 Union Nut Wrench 10 mm
G04459483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

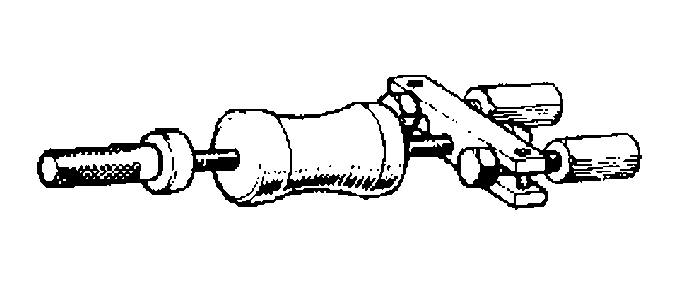

09520-00031 Rear Axle Shaft Puller

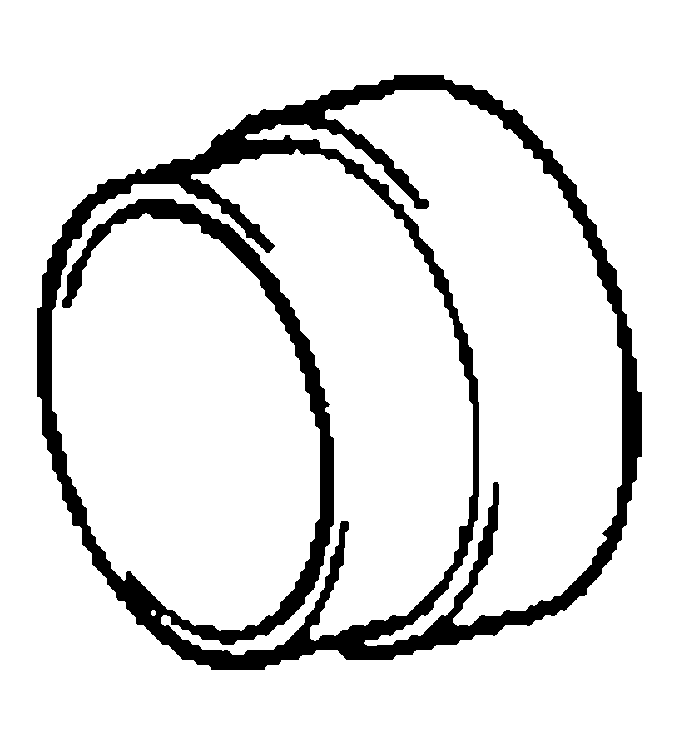

G04459484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
09527-17011 Rear Axle Shaft Bearing Remover
G04459485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

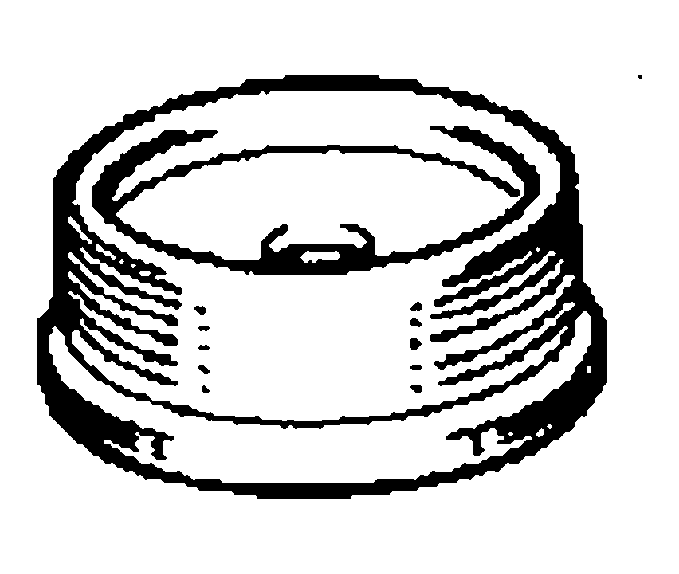

09608-10010 Steering Knuckle Oil Seal Replacer

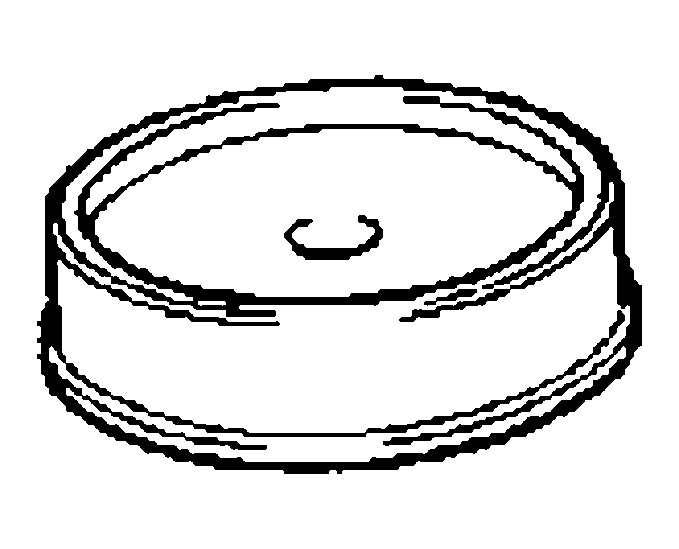

G04459486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
09608-32010 Steering Knuckle Oil Seal Replacer
G04459487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

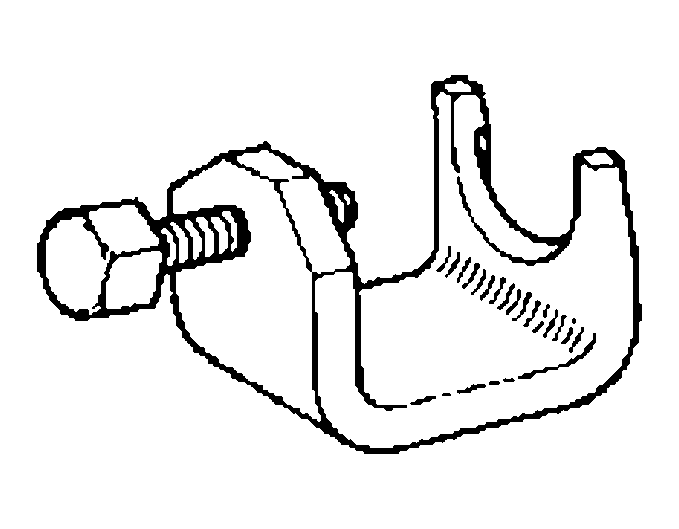

09628-10011 Ball Joint Puller

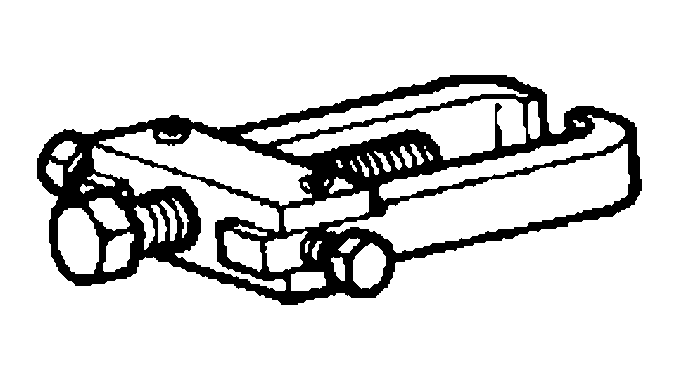

G04459488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
09628-62011 Boll Joint Puller
G04459489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

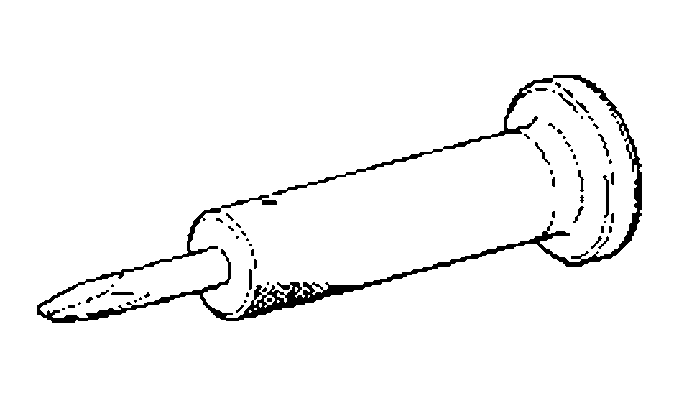

09930-00010 Drive Shaft Nut Chisel

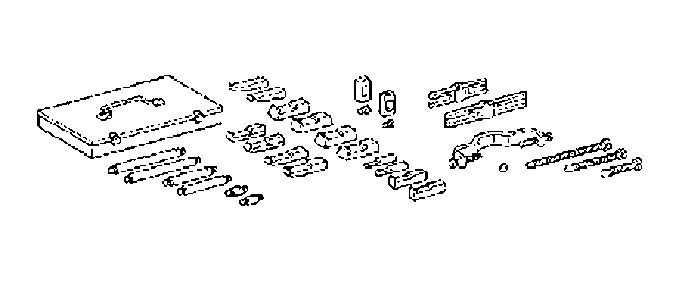

G04459490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
09950-40011 Puller B Set

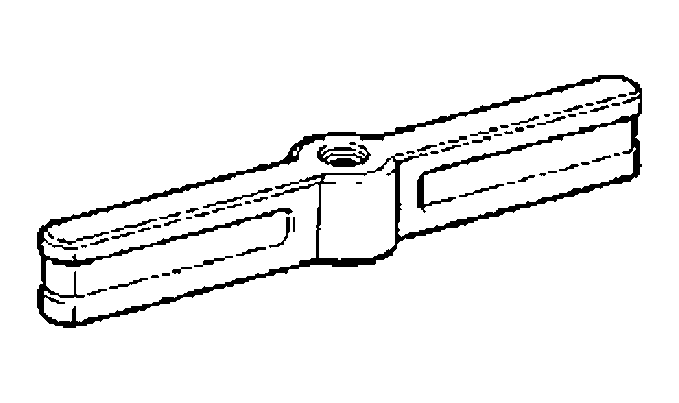

G04459491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
(09951-04020) Hanger 200

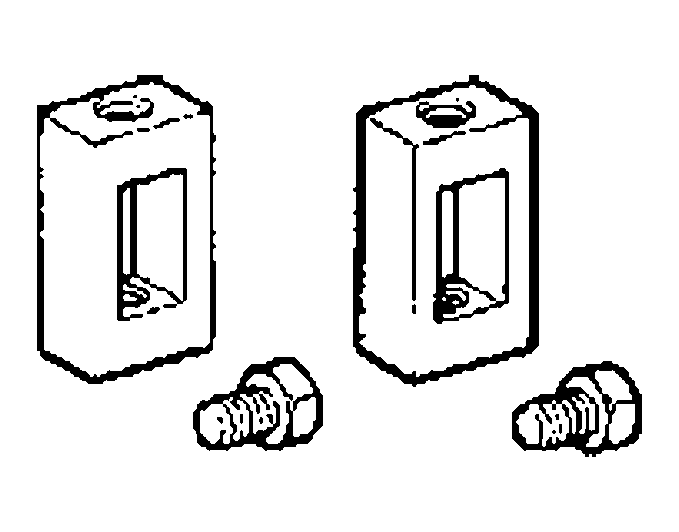

G04459492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
(09952-04010) Slide Arm

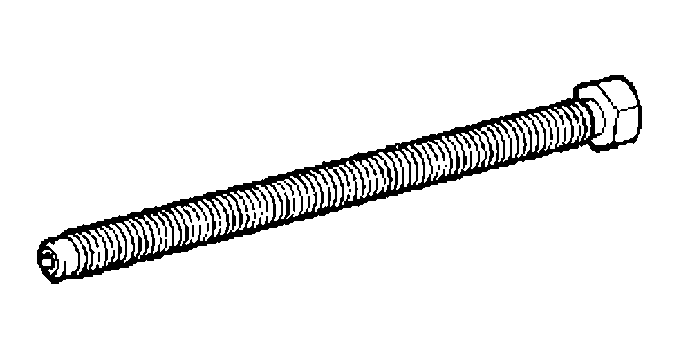

G04459493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
(09953-04030) Center Bolt 200
G04459494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

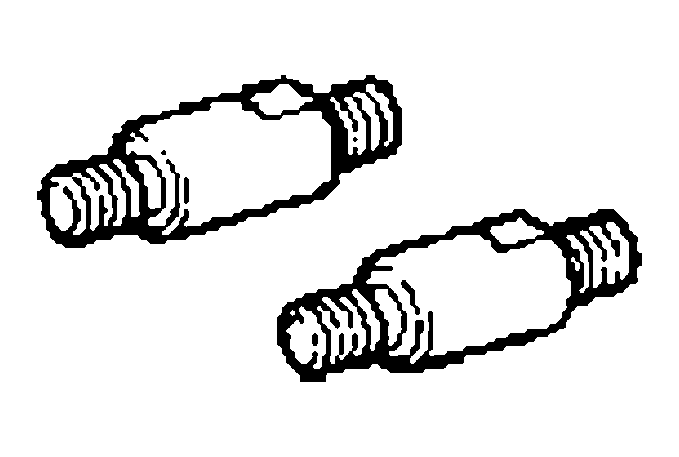

(09954-04010) Arm 25

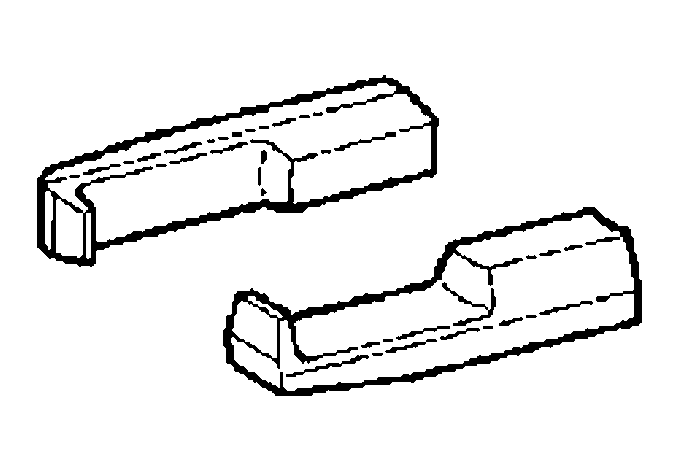

G04459495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
(09955-04061) Claw No.6

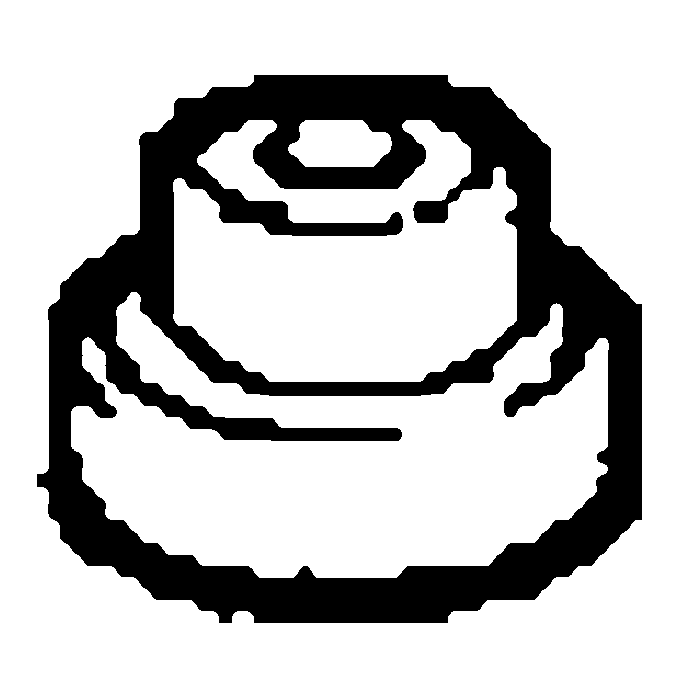

G04459496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
(09957-04010) Attachment
G04459497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

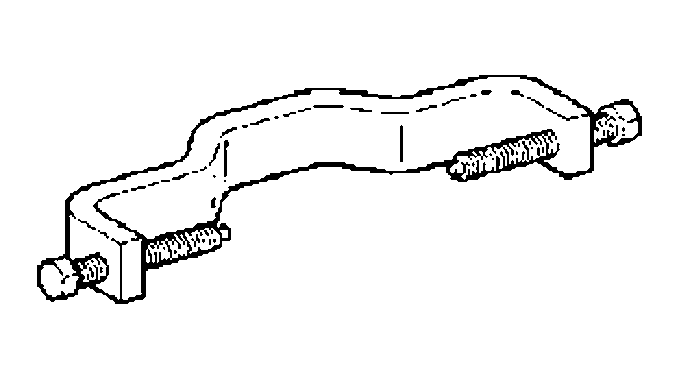

(09958-04011) Holder

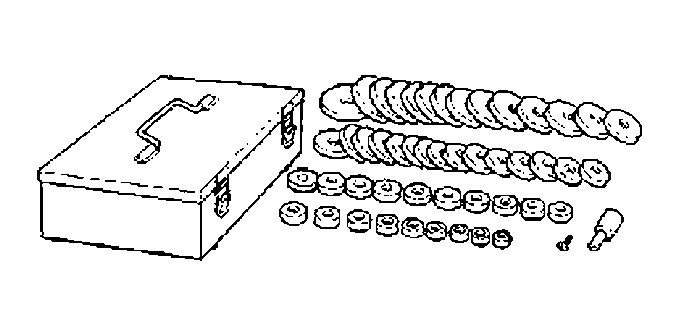

G04459498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
09950-60010 Replacer Set

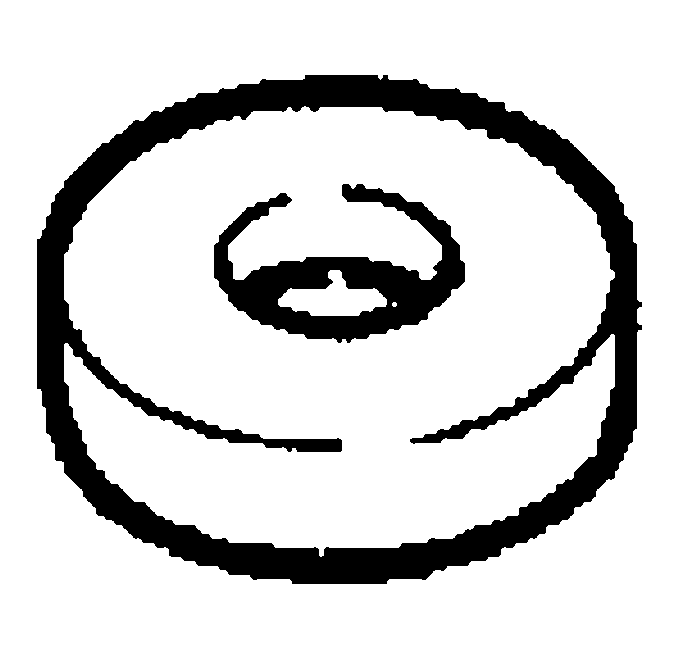

G04459499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
(09951-00370) Replacer 37

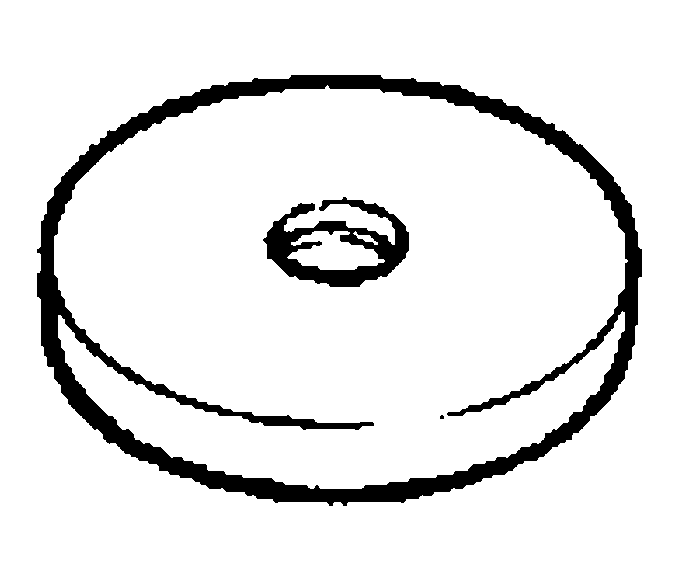

G04459500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
(09951-00600) Replacer 60
G04459501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

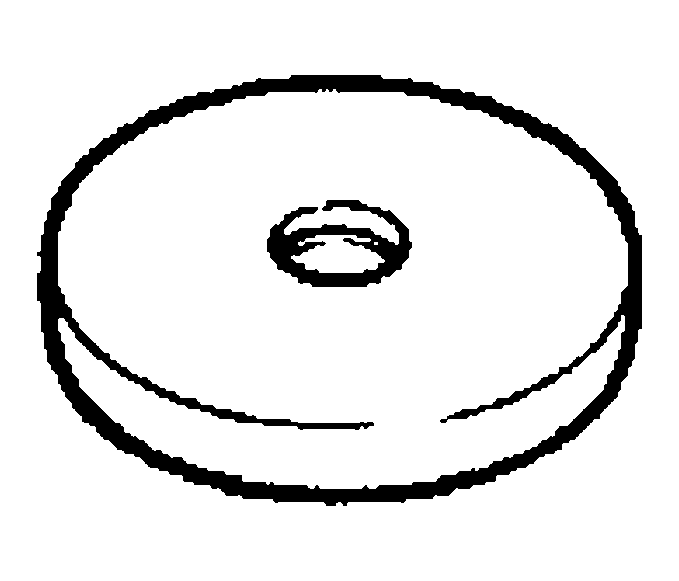

(09951-00640) Replacer 64

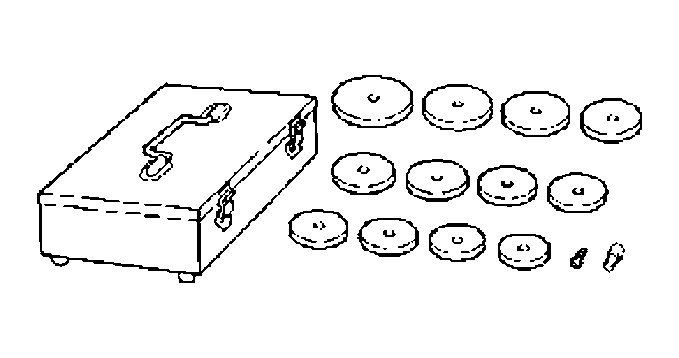

G04459502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
09950-60020 Replacer Set No.2
G04459503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

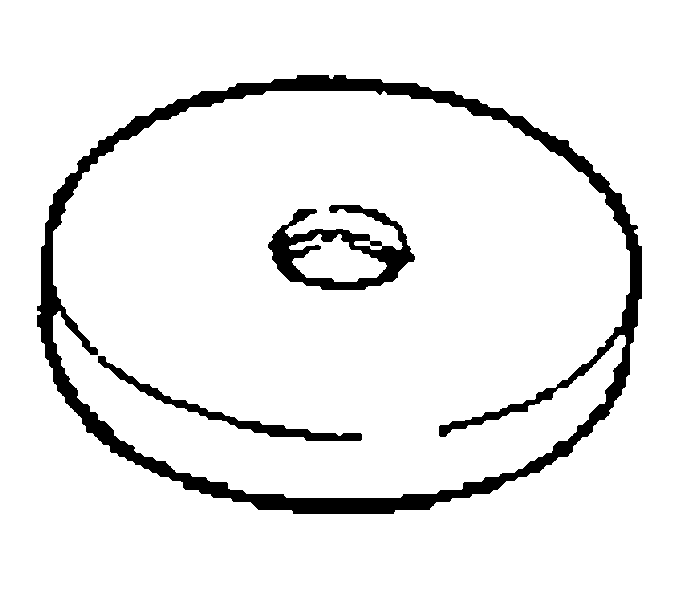

(09951-00680) Replacer 68

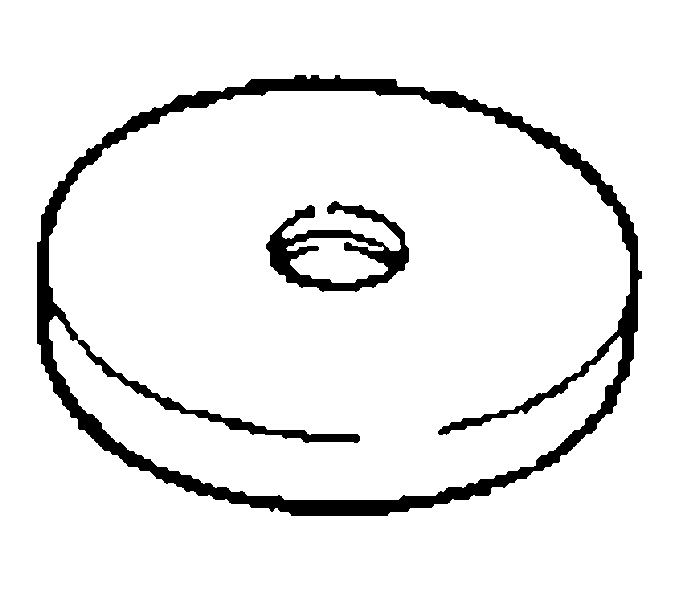

G04459504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
(09951-00720) Replacer 72
G04459505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

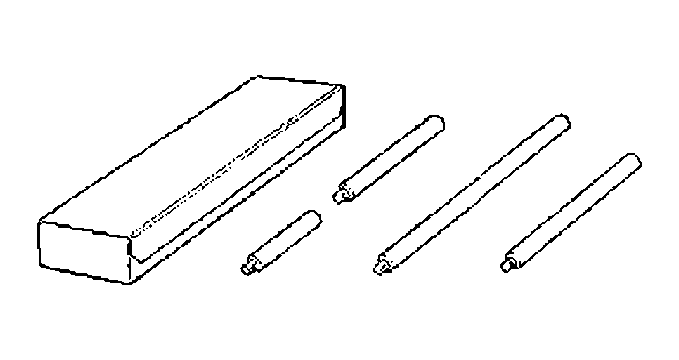

09950-70010 Handle Set

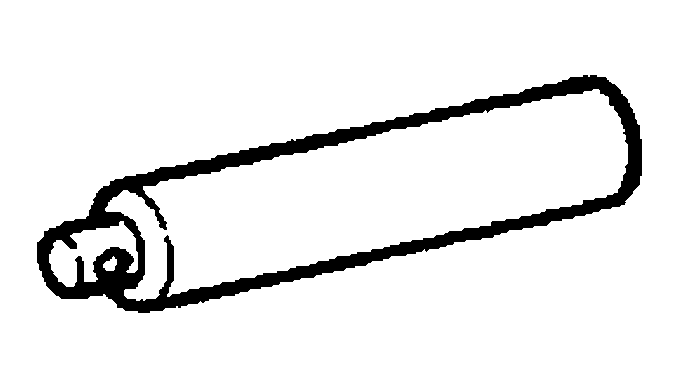

G04459506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
(09951-07100) Handle 100
