Vehicle Identification And Serial Numbers

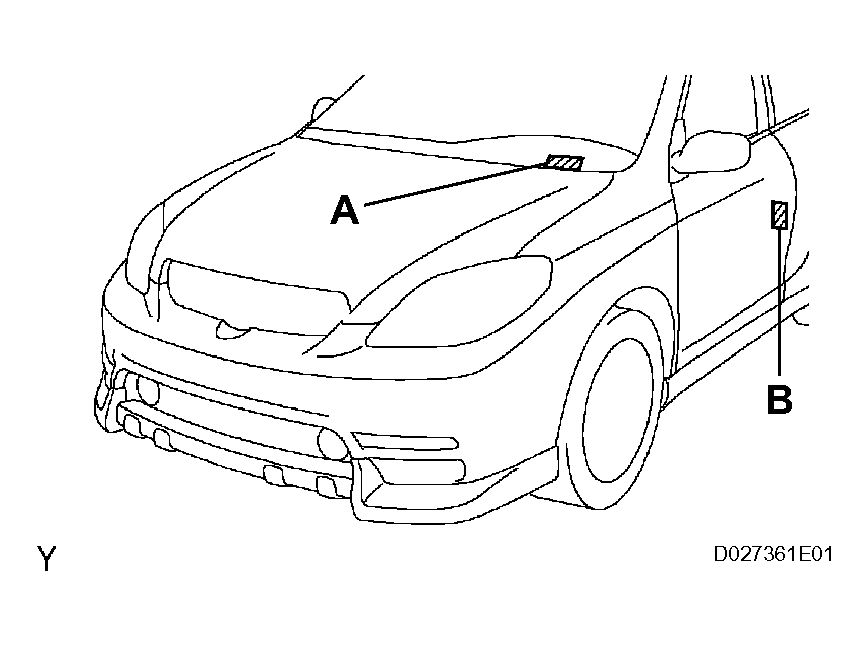

VEHICLE IDENTIFICATION NUMBER
1. The vehicle identification number is stamped on the vehicle body and on the certification label, as shown in the illustration.

  Fig 1: Locating Vehicle Identification And Serial Numbers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Vehicle Identification Number
  2. Certification Label
  3. Frame Number

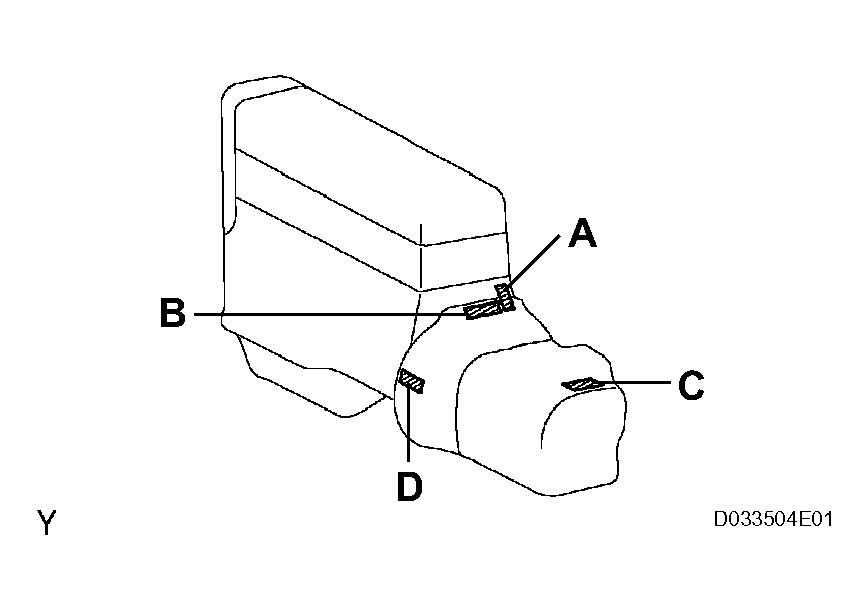

ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER
1. The engine serial number is stamped on the cylinder block of the engine, and the transaxle serial number is stamped on the housing, as shown in the illustration.
  1. 1ZZ-FE, 2ZZ-GE
  2. C59, C60
  3. A246E
  4. U341F

    Fig 2: Locating Engine Serial Number And Transmission Serial Number
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
