Rear Seat Outer Belt Assembly: Components

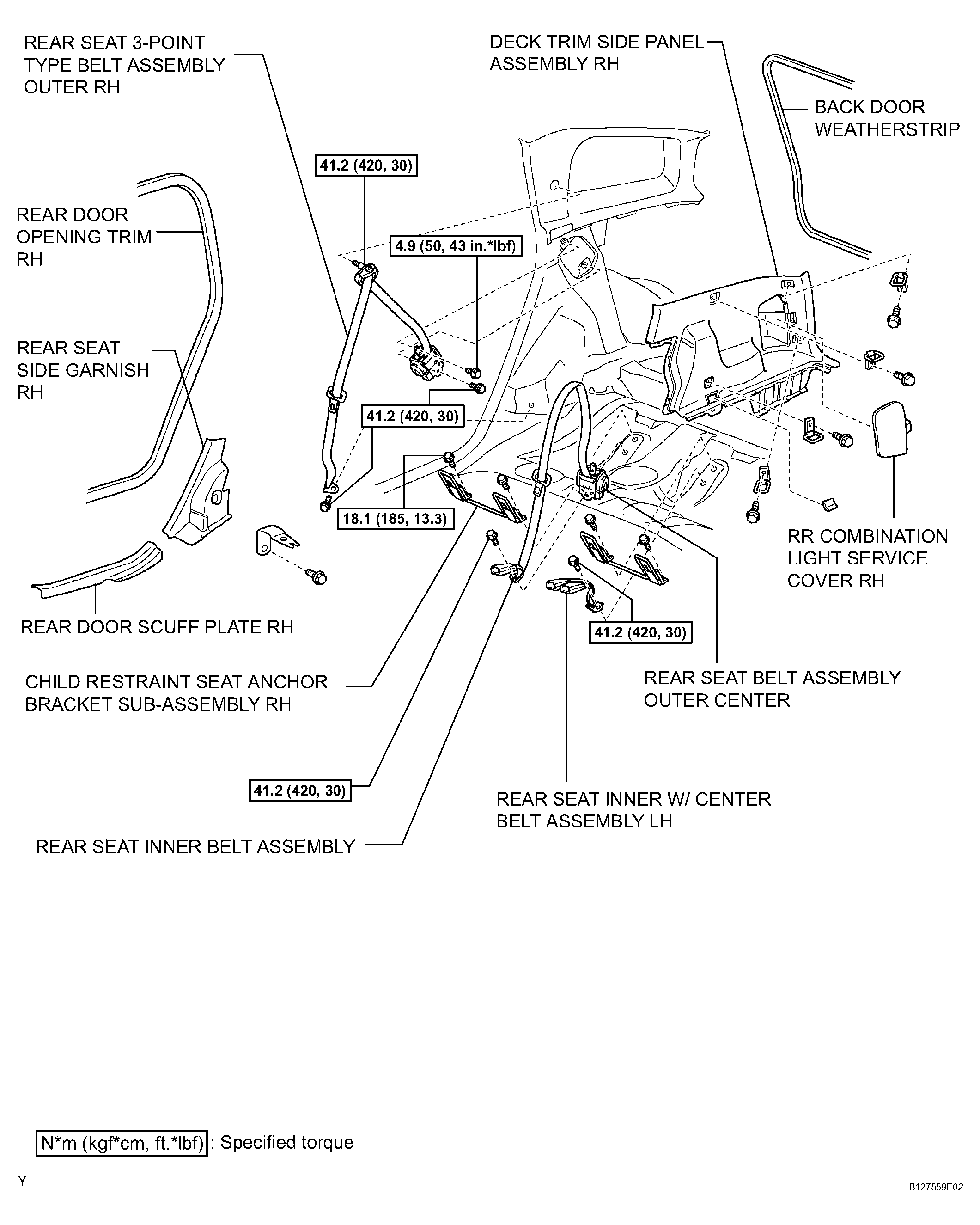

Fig 1: Rear Seat Outer Belt Assembly Replacement Components With Torque Specifications (1 Of 2)
G04466208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Rear Seat Outer Belt Assembly Replacement Components With Torque Specifications (2 Of 2)
G04466209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
