Front Lower Ball Joint: Components

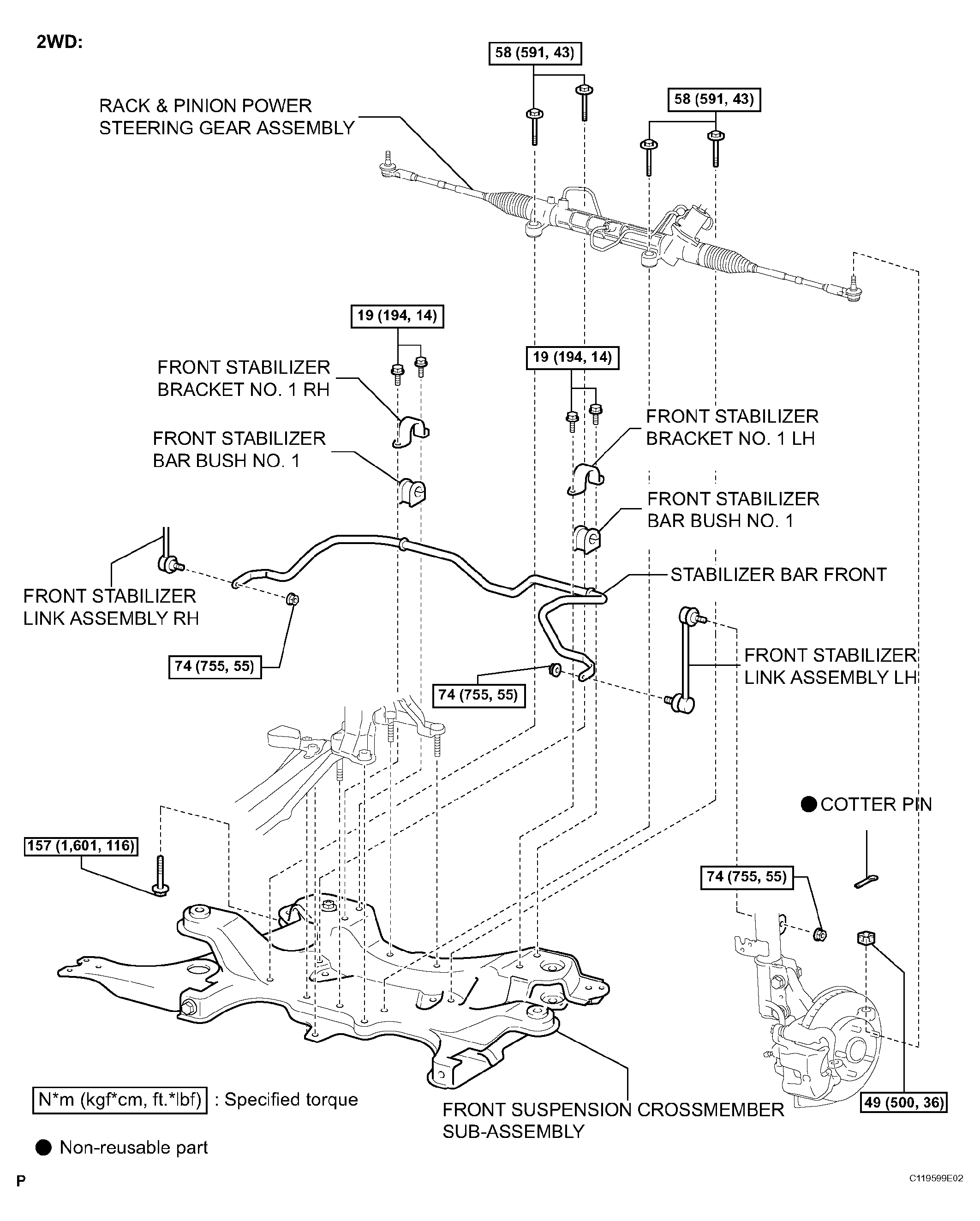

Fig 1: Front Lower Ball Joint Replacement Components With Torque Specifications (1 Of 4)
G04464956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

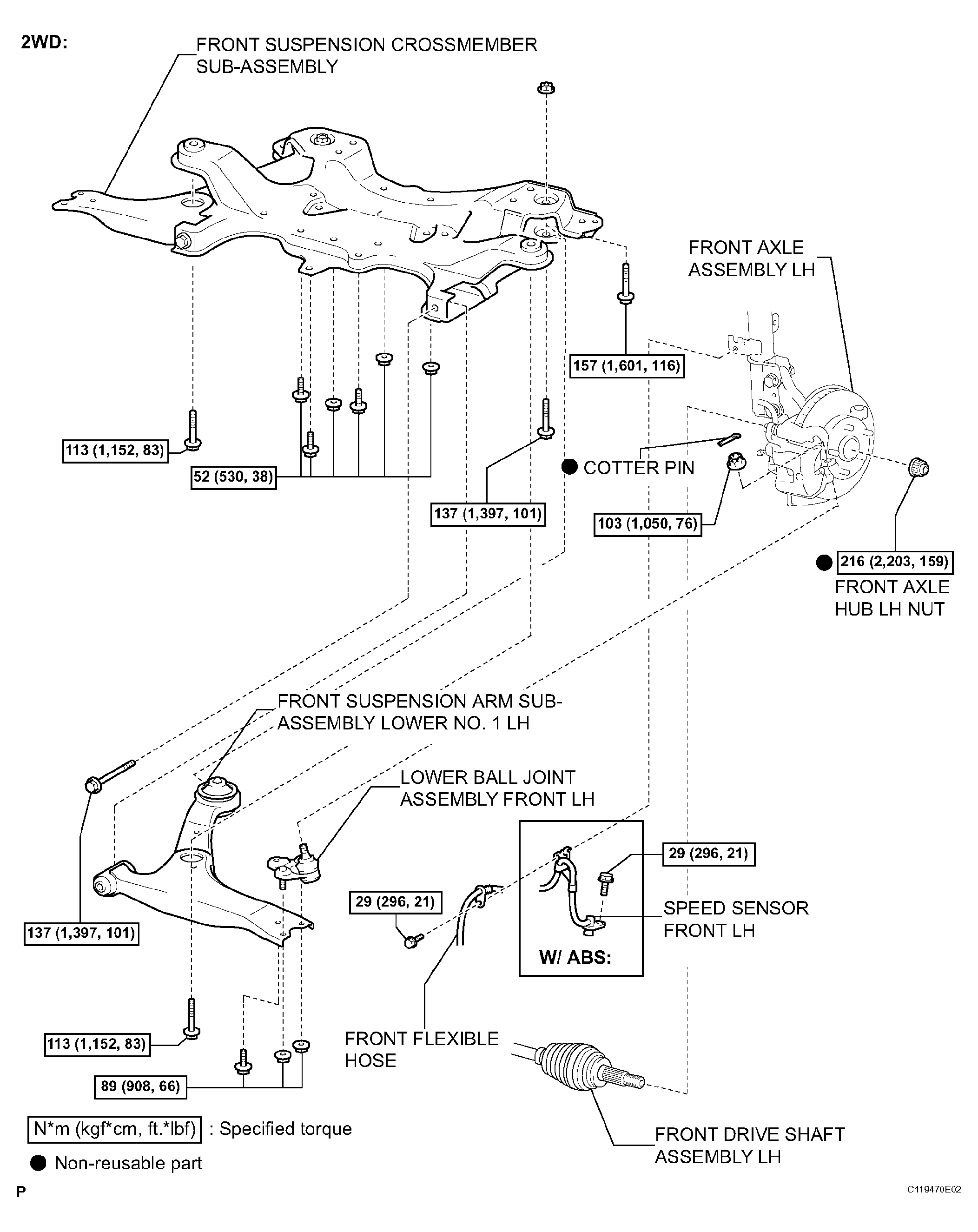

Fig 2: Front Lower Ball Joint Replacement Components With Torque Specifications (2 Of 4)
G04464957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

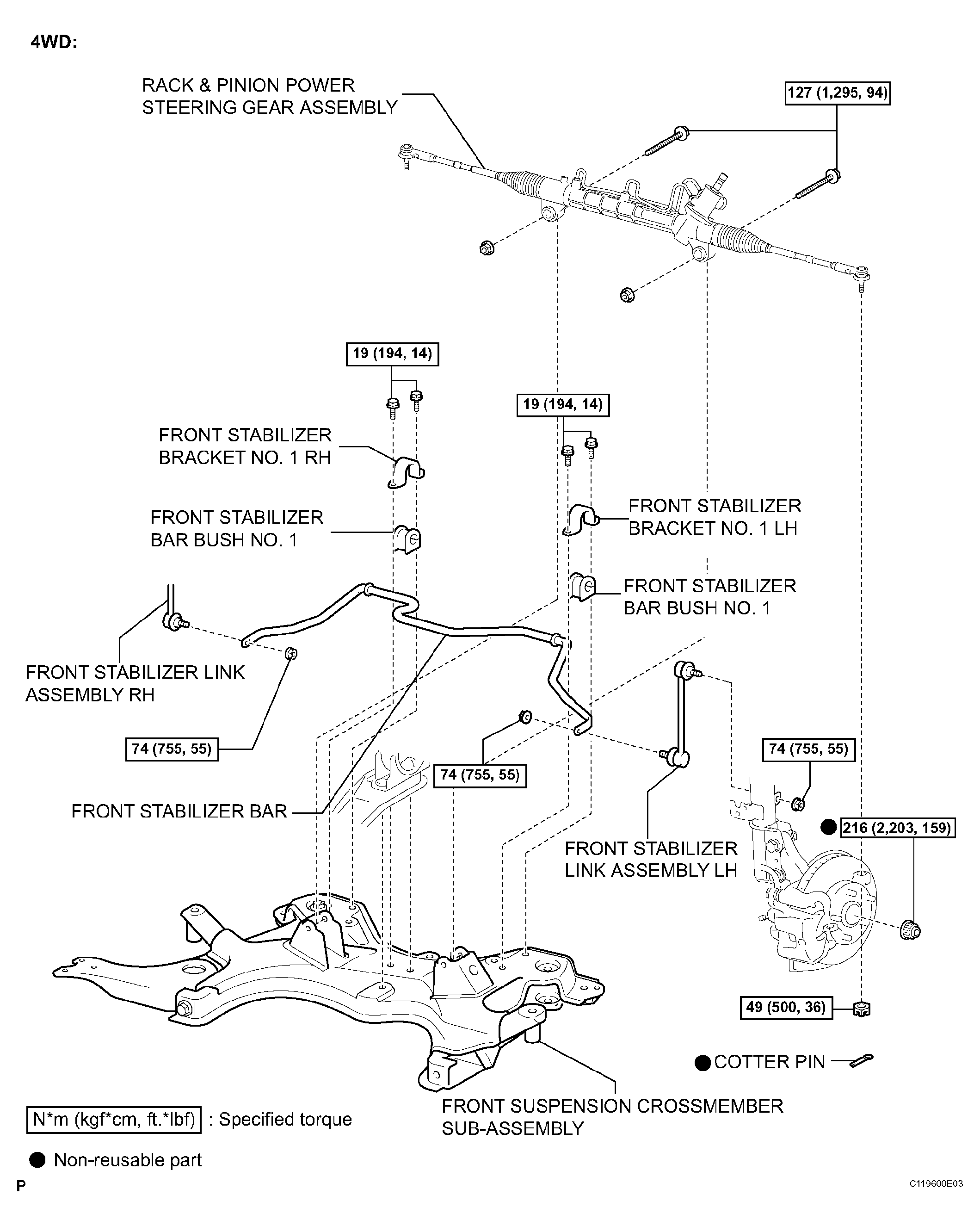

Fig 3: Front Lower Ball Joint Replacement Components With Torque Specifications (3 Of 4)
G04464958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

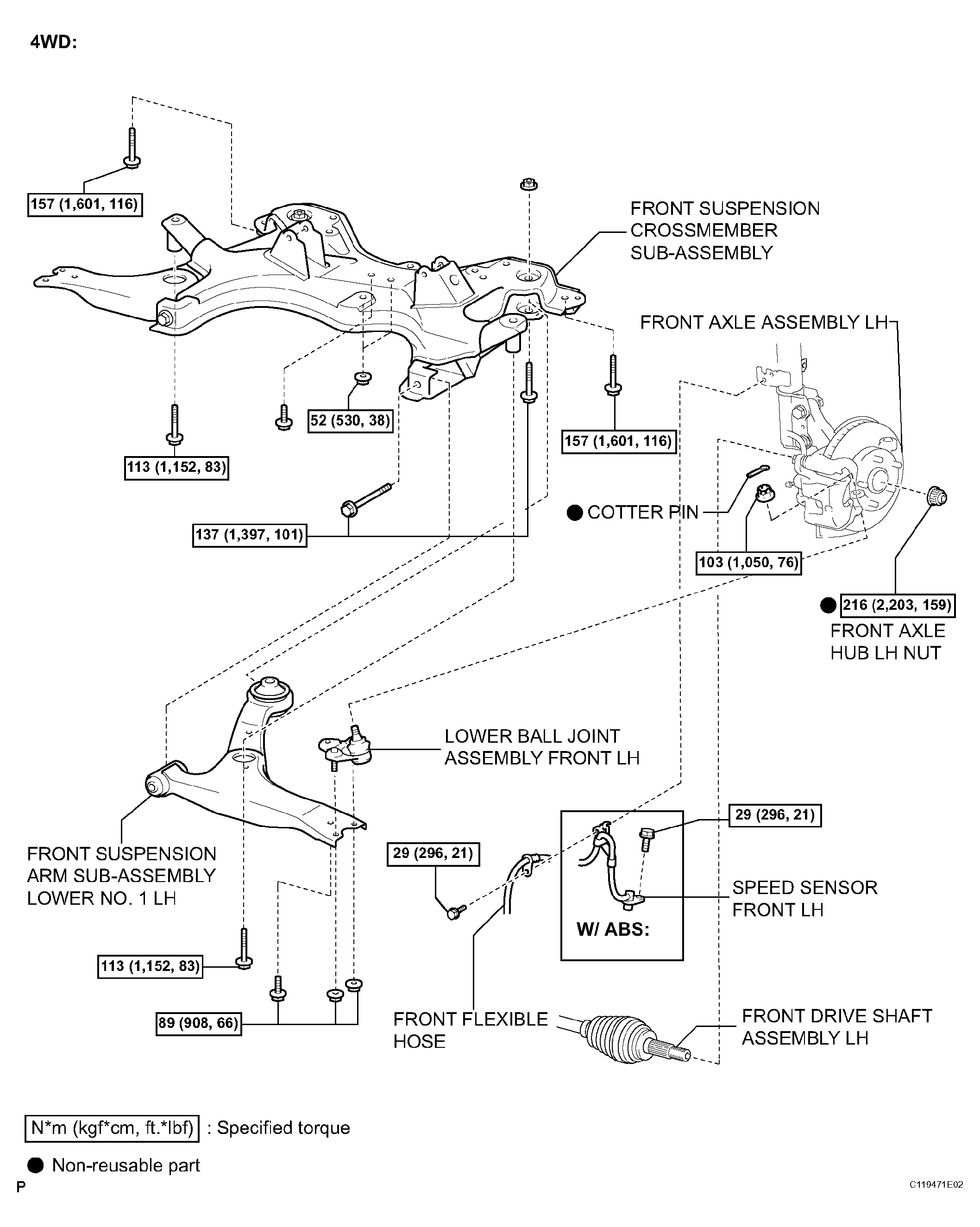

Fig 4: Front Lower Ball Joint Replacement Components With Torque Specifications (4 Of 4)
G04464959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
