Front Stabilizer Bar: Components

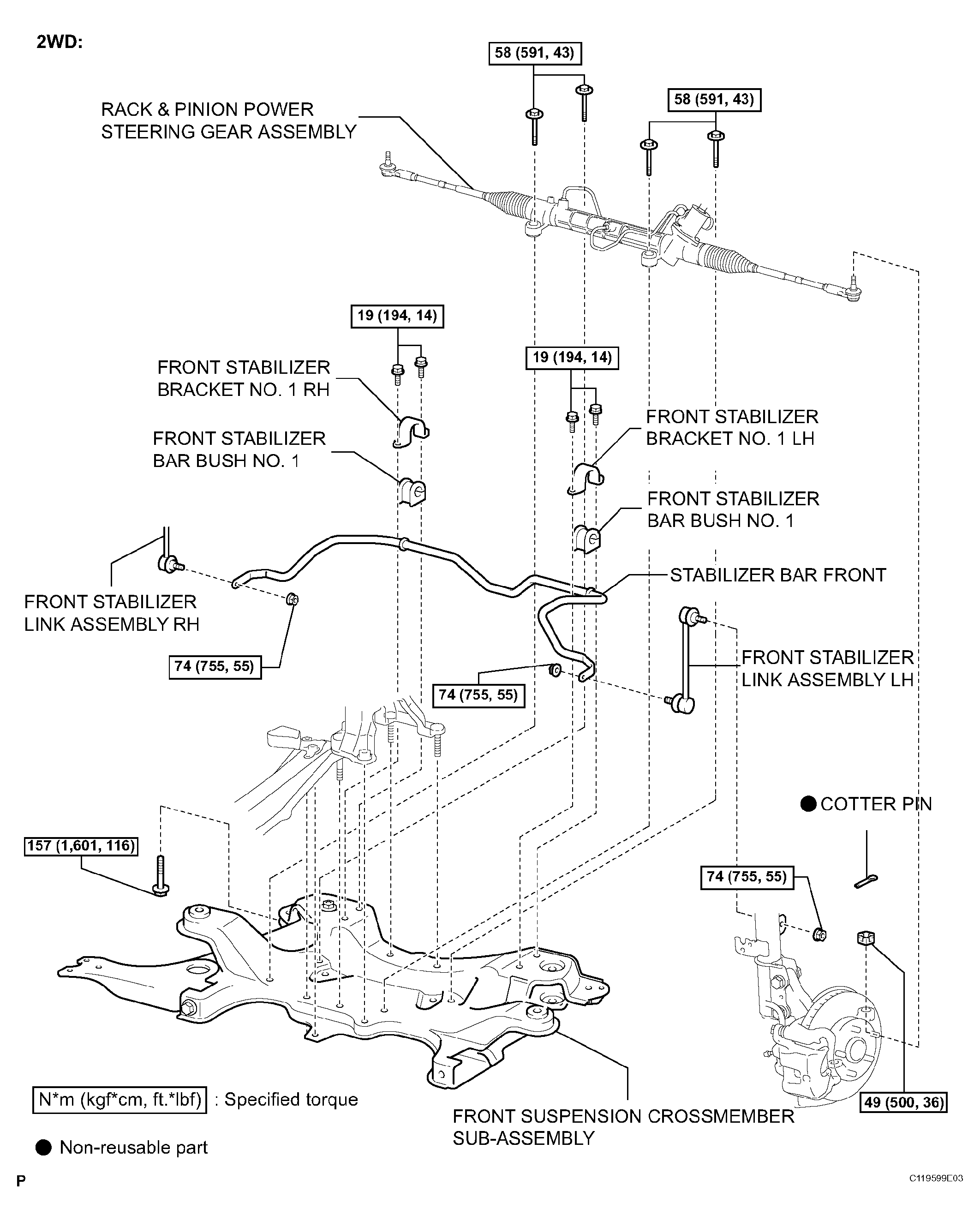

Fig 1: Front Stabilizer Bar Replacement Components With Torque Specifications (1 Of 2)
G04464963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

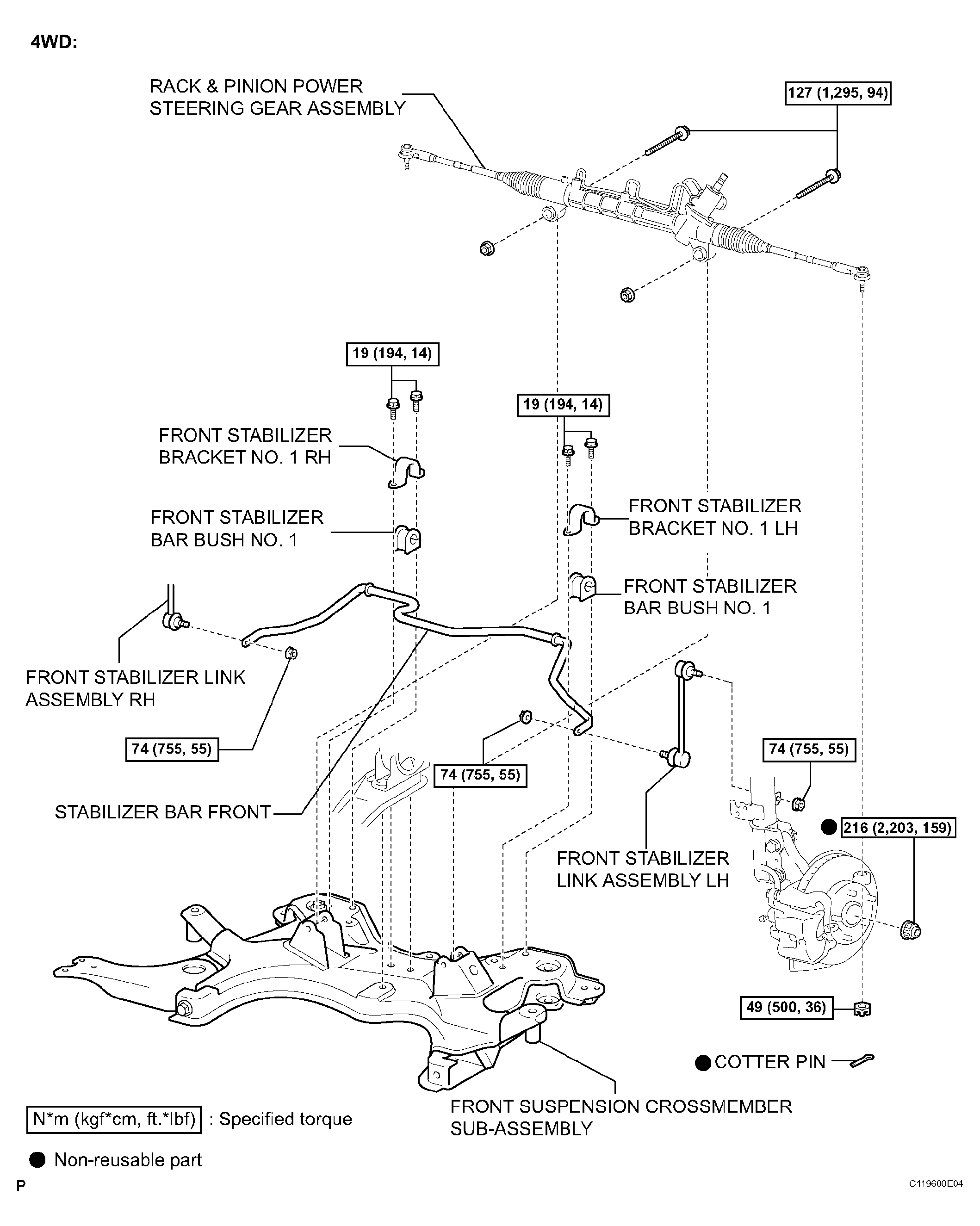

Fig 2: Front Stabilizer Bar Replacement Components With Torque Specifications (2 Of 2)
G04464964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
