Front Stabilizer Bar: Installation

INSTALL STABILIZER BAR FRONT
1. Install 2 front stabilizer bar bushes No. 1, front stabilizer bracket No. 1 LH and front stabilizer bracket No. 1 RH to the stabilizer bar front.
  HINT:

  Install the bushing to the inner side of the bushing stopper on the stabilizer bar.

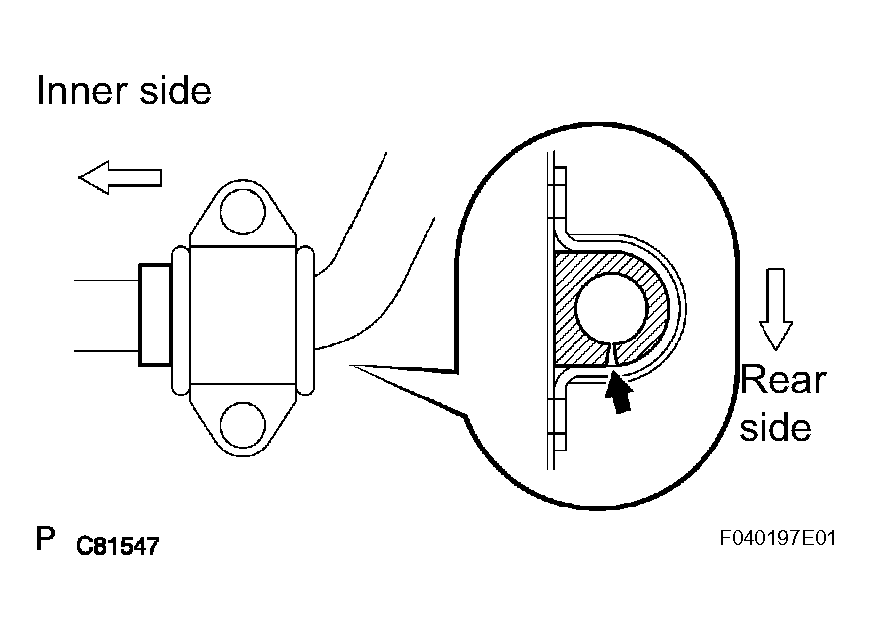

  Fig 1: Installing Front Stabilizer Bar Bushes No. 1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. 2WD:
  Install the stabilizer bar front and 4 bolts to the front suspension crossmember sub-assembly.

  Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)
INSTALL FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY (See INSTALLATION )
INSTALL RACK & PINION POWER STEERING GEAR ASSEMBLY (See INSTALLATION )
INSTALL FRONT SUSPENSION ARM SUB-ASSEMBLY LOWER NO. 1 LH (See INSTALLATION )

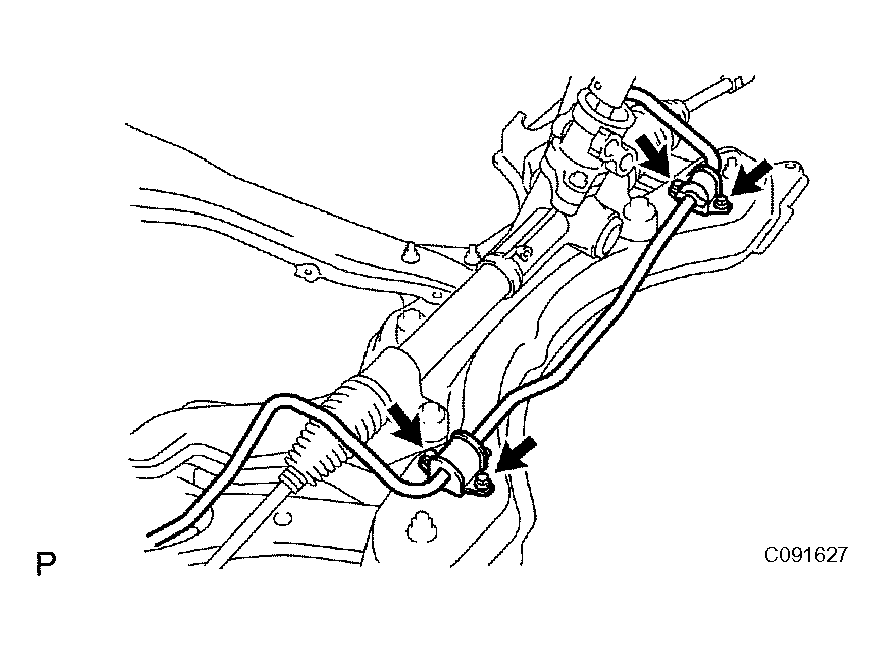

Fig 2: Installing Stabilizer Bar Front And Bolts To Front Suspension Crossmember Sub-Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SUSPENSION ARM SUB-ASSEMBLY LOWER NO. 1 RH
HINT:

Install the RH side by the same procedures as the LH side.
INSTALL FRONT STABILIZER LINK ASSEMBLY LH
1. Install the stabilizer bar link with the 2 nuts.
  Torque: 74 N*m (755 kgf*cm, 55 ft.*lbf)

  HINT:

  If the ball joint turns together with the nut, use a hexagon wrench (6 mm) to hold the stud.
INSTALL FRONT STABILIZER LINK ASSEMBLY RH
HINT:

Install the RH side by the same procedure as the LH side.
INSTALL FRONT WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
HINT:

See ADJUSTMENT
