REAR AXLE BEAM (for 2WD): Components

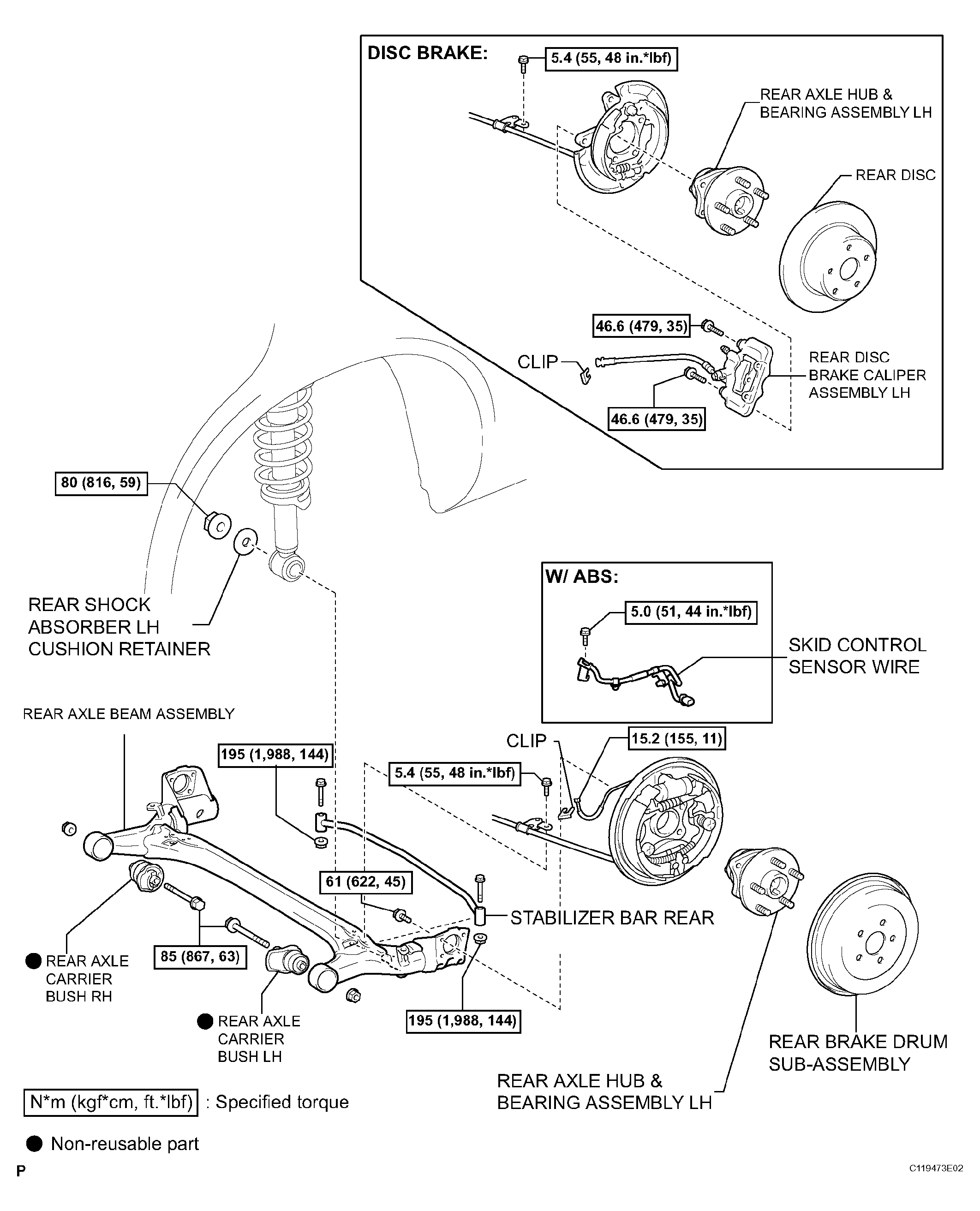

Fig 1: Rear Axle Beam (2Wd) Replacement Components With Torque Specifications
G04465000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
