Front Shock Absorber: Inspection

INSPECT SHOCK ABSORBER ASSEMBLY FRONT LH
1. Compress and extend the shock absorber rod and check that there is no abnormal resistance or unusual sound during operation.
  If there is any abnormality, replace the shock absorber with a new one.

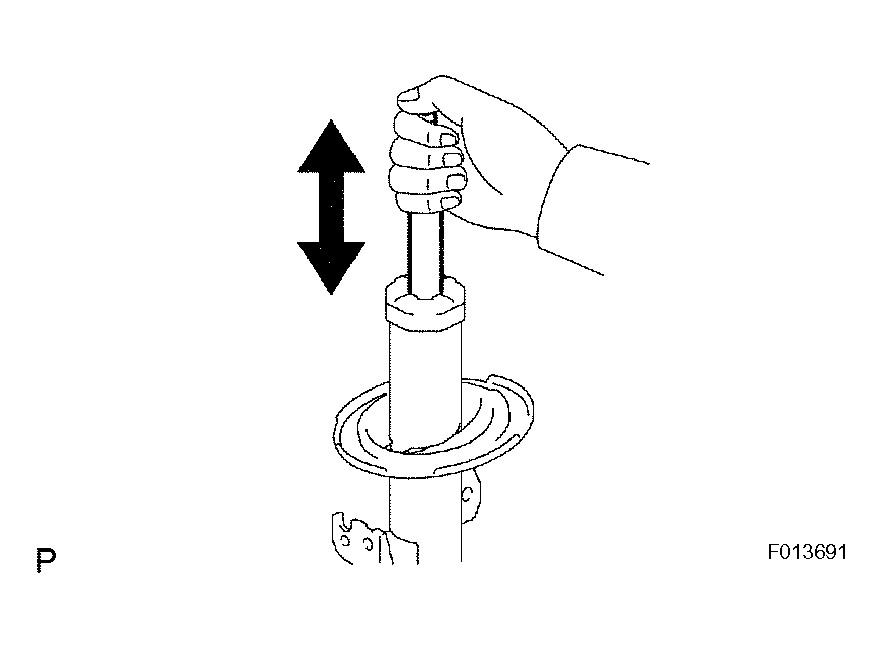

  Fig 1: Inspecting Shock Absorber Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
