Back Door Glass: Removal

REMOVE BACK DOOR PANEL SUB-ASSEMBLY UPPER OUTER
1. Remove the center stop light.
2. Using a torx wrench (T30), remove the 4 screws.
3. Remove the 4 nuts.

  Fig 1: Removing Screws Using Torx Wrench
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the hose.

  Fig 2: Removing Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Using a knife, cut off the adhesive tape as shown in the illustration.
  NOTE: Do not damage the back door glass with the knife.
6. Remove the back door panel upper outer, and then disconnect the clamp.
REMOVE REAR WIPER ARM ASSEMBLY (See REMOVAL )

Fig 3: Cutting Off Adhesive Tape
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR WIPER LINK CAP
REMOVE W/WASHER PACKING NUT REAR WIPER LINK PIVOT
REMOVE RR WIPER MOTOR COVER
REMOVE WINDSHIELD WIPER MOTOR ASSEMBLY (See REMOVAL )
REMOVE BACK DOOR GLASS
1. Using a screwdriver, remove the back door stay from the back door panel.
  HINT:

  While supporting the back door by hand, remove the back door stay.

  Fig 4: Removing Back Door Stay From Back Door Panel Using Screwdriver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

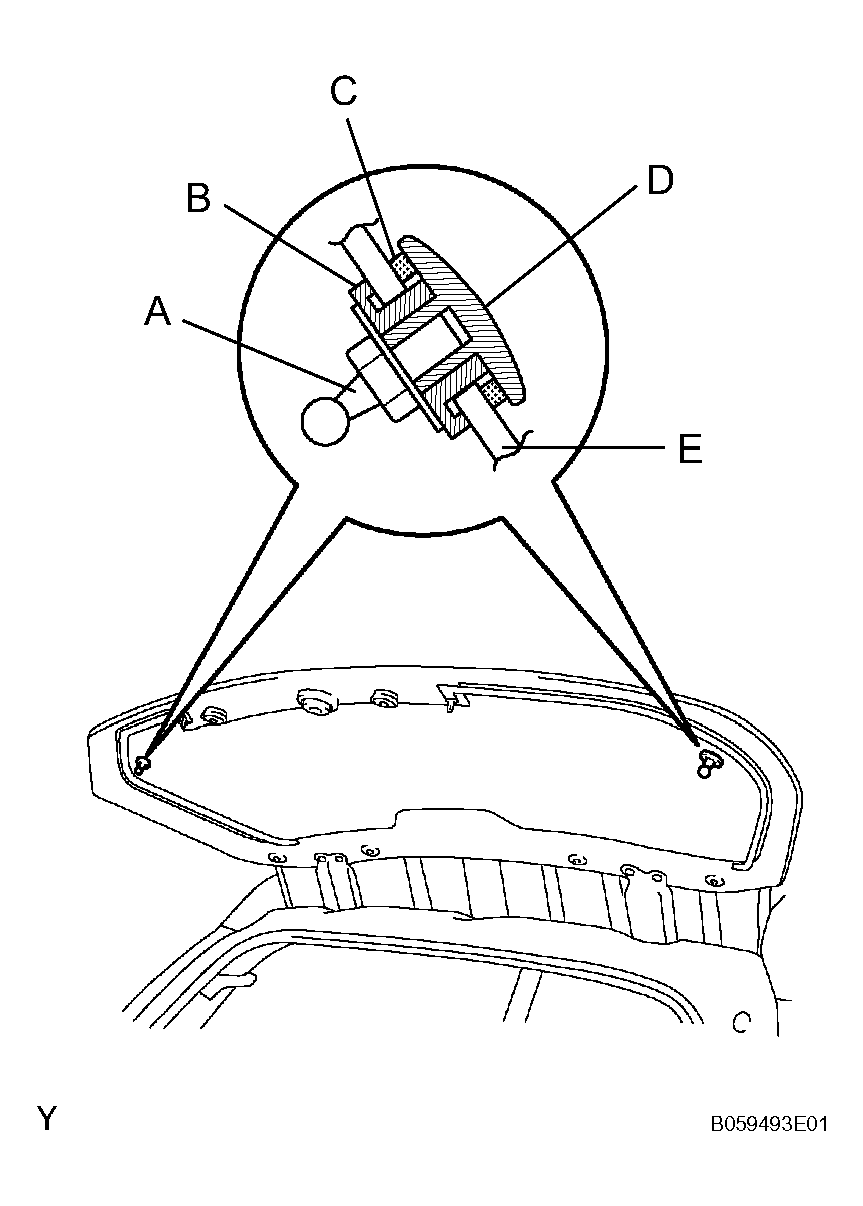

2. Remove the back door stay bolt No. 1, back door stay retainer and back door stay packing No. 2 from the back door glass.
  HINT:

  A: Back door stay bolt No. 1

  B: Back door stay packing No. 2

  C: Back door stay packing No. 1

  D: Back door stay retainer

  E: Back door glass

  Fig 5: Removing Back Door Stay Bolt No. 1, Back Door Stay Retainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 4 nuts and back door glass.
REMOVE BACK DOOR HINGE ASSEMBLY RH
1. Remove the 2 nuts, window glass spacer No. 1, back door hinge male pad and back door glass from the back door hinge assembly RH.
REMOVE BACK DOOR HINGE ASSEMBLY LH

Fig 6: Removing Back Door Hinge Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
