Engine Control System (2ZZ-GE): ECM: Installation

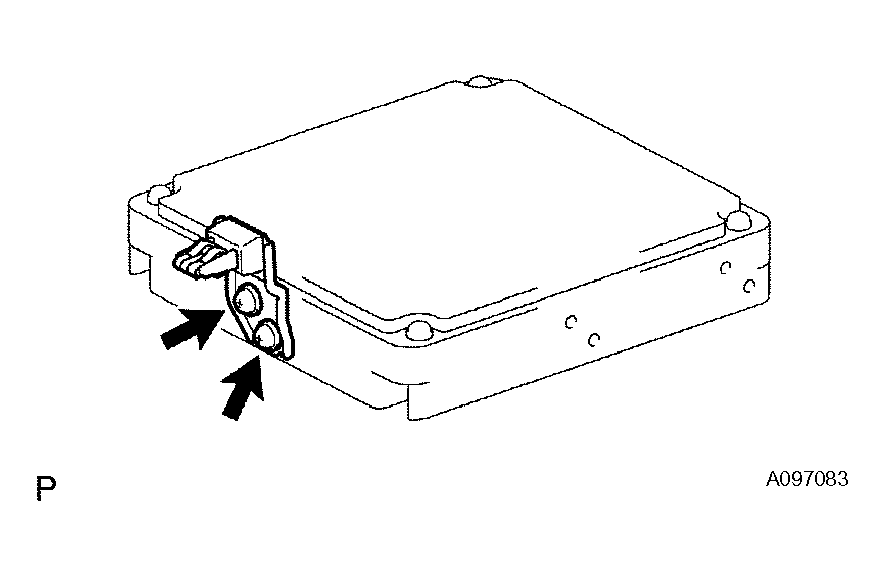

INSTALL ECM BRACKET NO.3 (for DENSO Made)
1. Install the ECM bracket No. 3 with the 2 screws.
  Torque: 3.2 N*m (33 kgf*cm, 28 in.*lbf)

  Fig 1: Installing ECM Bracket No.3 (For DENSO Made)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

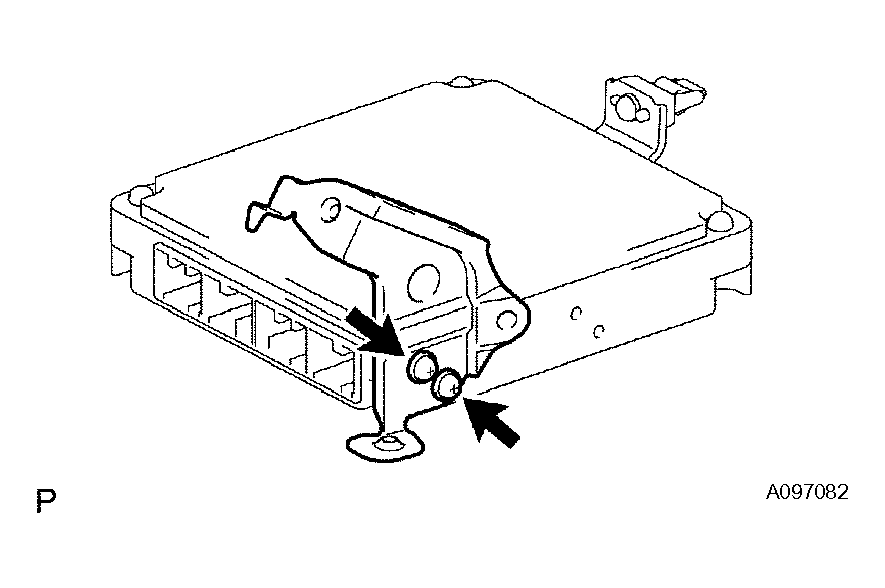

INSTALL ECM BRACKET NO.2 (for DENSO Made)
1. Install the ECM bracket No. 2 with the 2 screws.
  Torque: 3.2 N*m (33 kgf*cm, 28 in.*lbf)

  Fig 2: Installing ECM Bracket No.2 (For DENSO Made)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

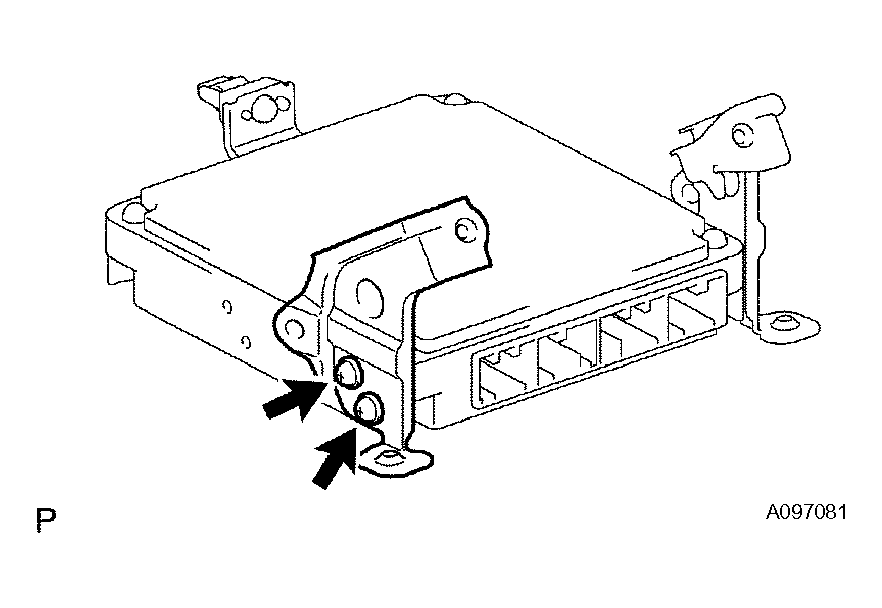

INSTALL ECM BRACKET (for DENSO Made)
1. Install the ECM bracket with the 2 screws.
  Torque: 3.2 N*m (33 kgf*cm, 28 in.*lbf)

  Fig 3: Installing ECM Bracket (For DENSO Made)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

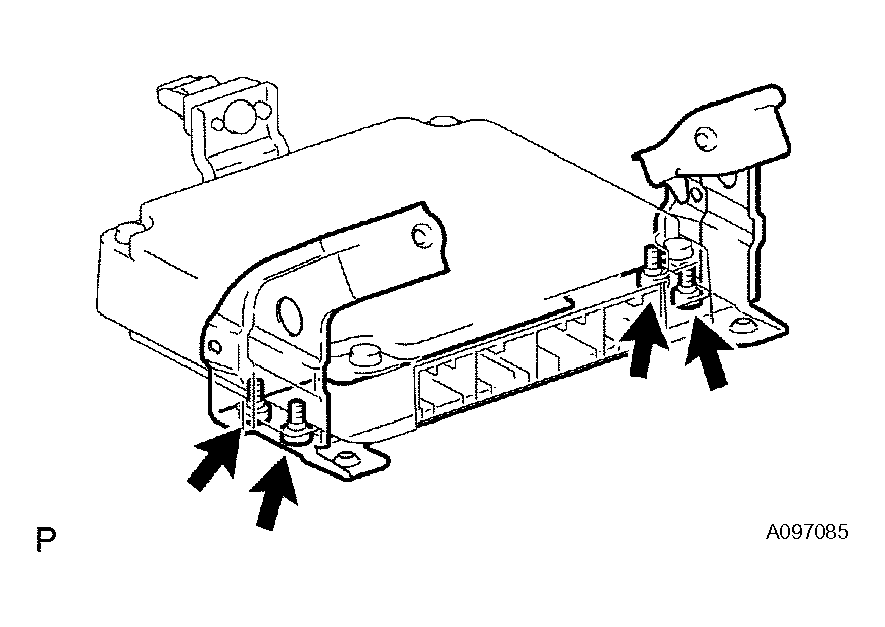

INSTALL ECM BRACKET (for DELCO Made)
1. Install the ECM bracket with the 4 screws.
  Torque: 3.2 N*m (33 kgf*cm, 28 in.*lbf)

  Fig 4: Installing ECM Bracket (For DELCO Made)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

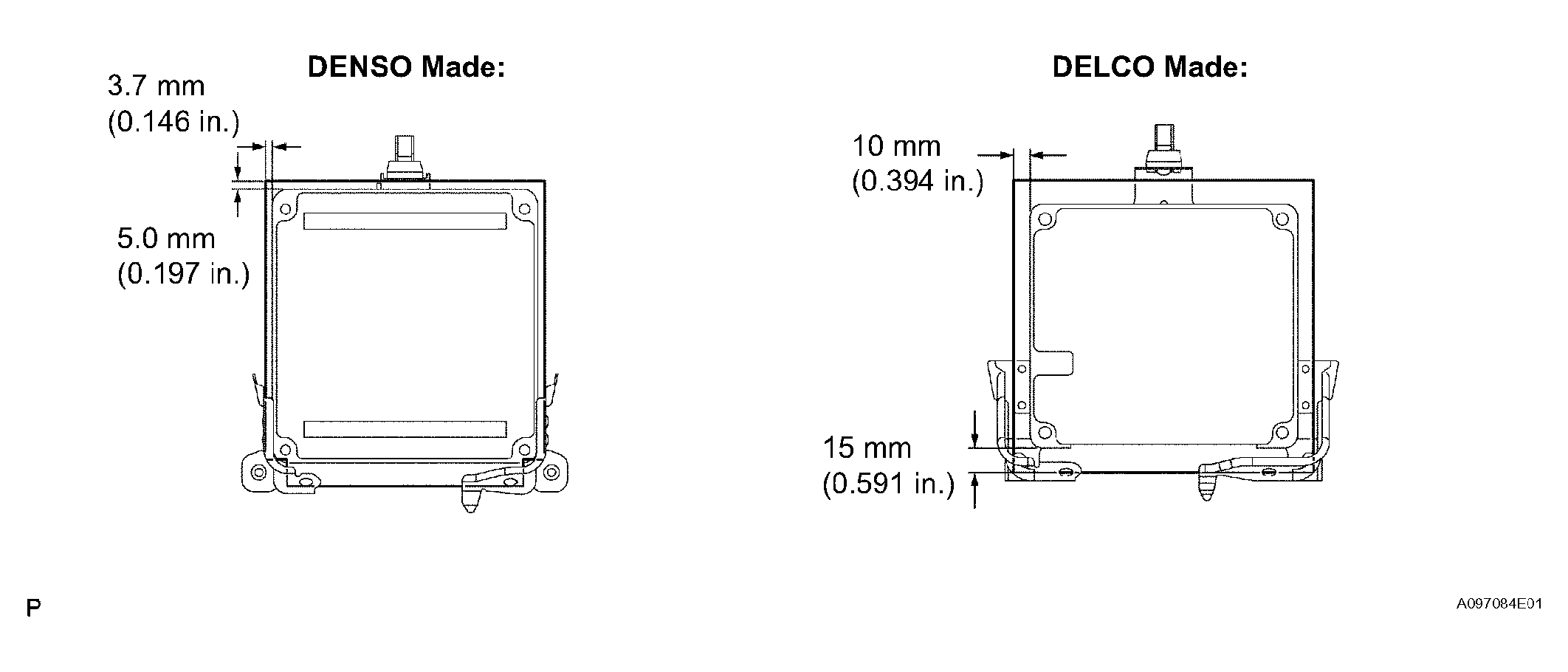

INSTALL ECM COVER
1. Install a new ECM cover onto the ECM as shown in the illustration.

  Fig 5: Installing ECM Cover Onto ECM
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

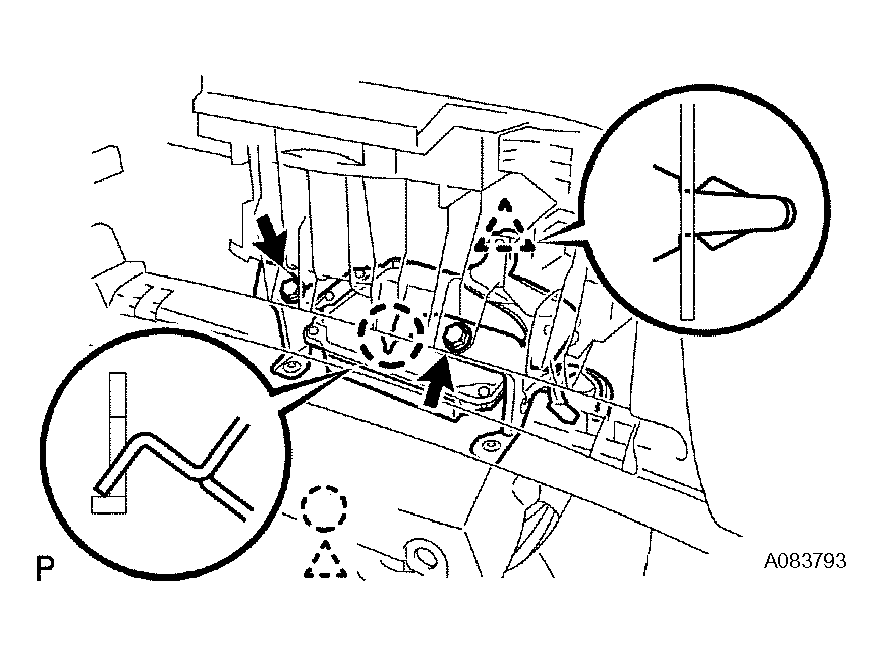

INSTALL ECM
1. Install the ECM with the 2 screws.
  Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)

  Fig 6: Installing ECM With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

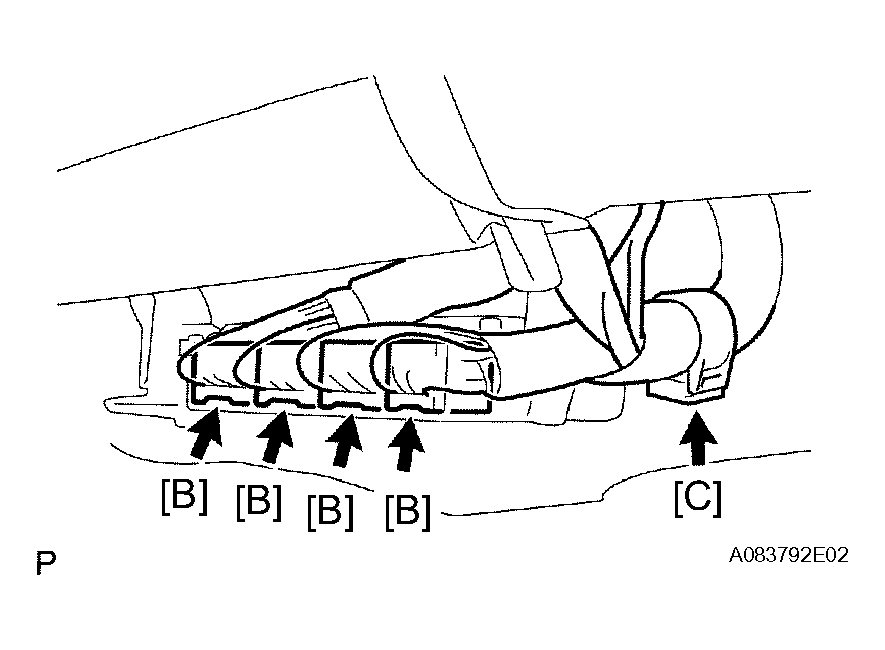

2. Connect the 4 ECM connectors [B].
3. Install the wire harness clamp [C].

  Fig 7: Connecting ECM Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

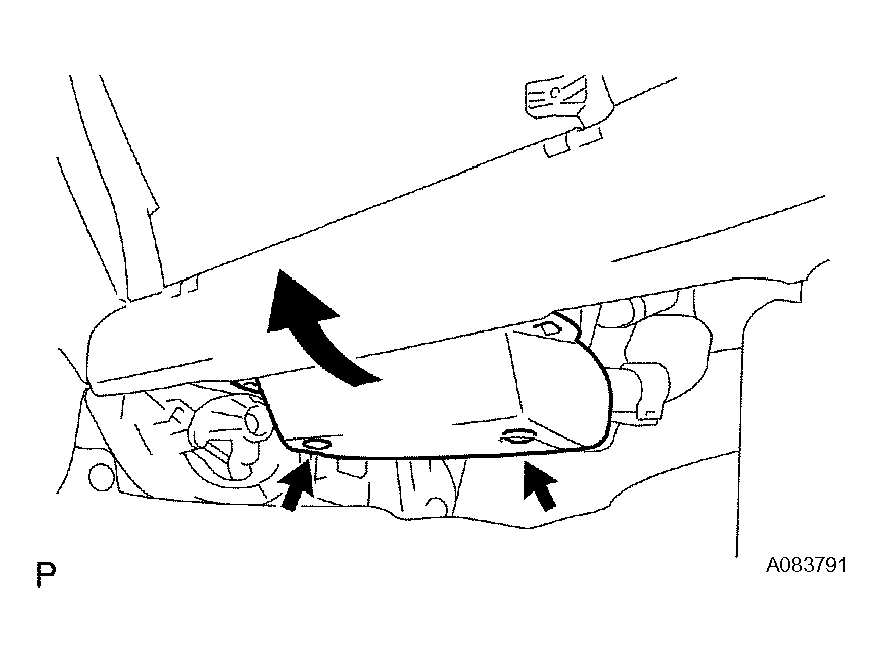

4. Install the cover with the 2 clips.
INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
CONNECT BATTERY NEGATIVE TERMINAL
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
REGISTRATION VIN (See BASIC INSPECTION )

Fig 8: Installing Cover With Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
