Knock Sensor: Inspection

  1. INSPECT KNOCK SENSOR
    1. Check the resistance.
      1. Using an ohmmeter, measure the resistance between the terminals.

        Resistance

        RESISTANCE SPECIFIED CONDITIONS

        Tester Connection Specified Condition
        1 (Ground) - 2 (Output) 120 to 280 k at 20°C (68°F)

        If the result is not as specified, replace the knock sensor.

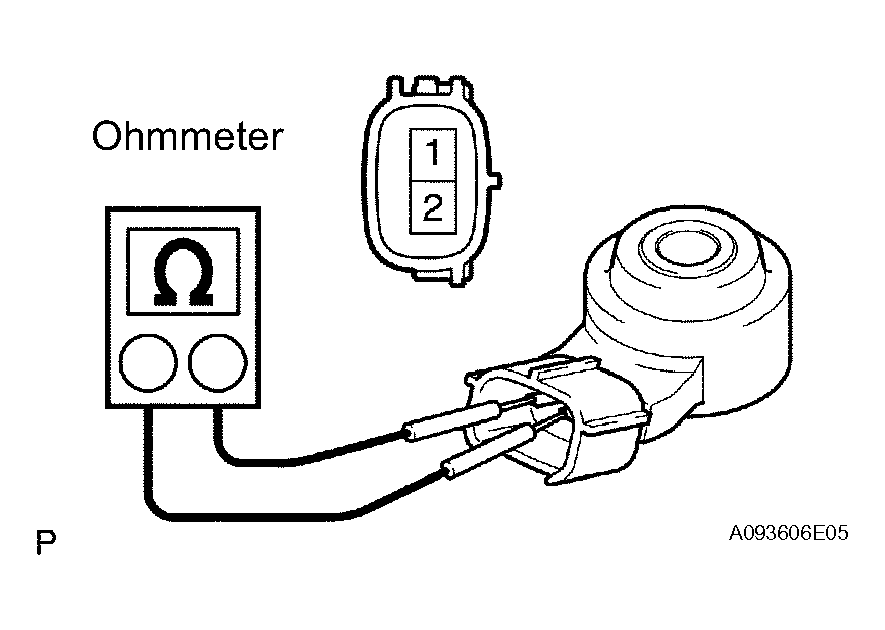

        Fig 1: Checking Knock Sensor Resistance
        G04460906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
