Throttle Body: Reassembly

INSTALL THROTTLE BODY IDLE AIR CONTROL VALVE ASSEMBLY
1. Install a new gasket onto the throttle body.
2. Install the throttle body idle air control valve assembly with the 3 screws [B].
  Torque: 3.7 N*m (38 kgf*cm, 33 in.*lbf)

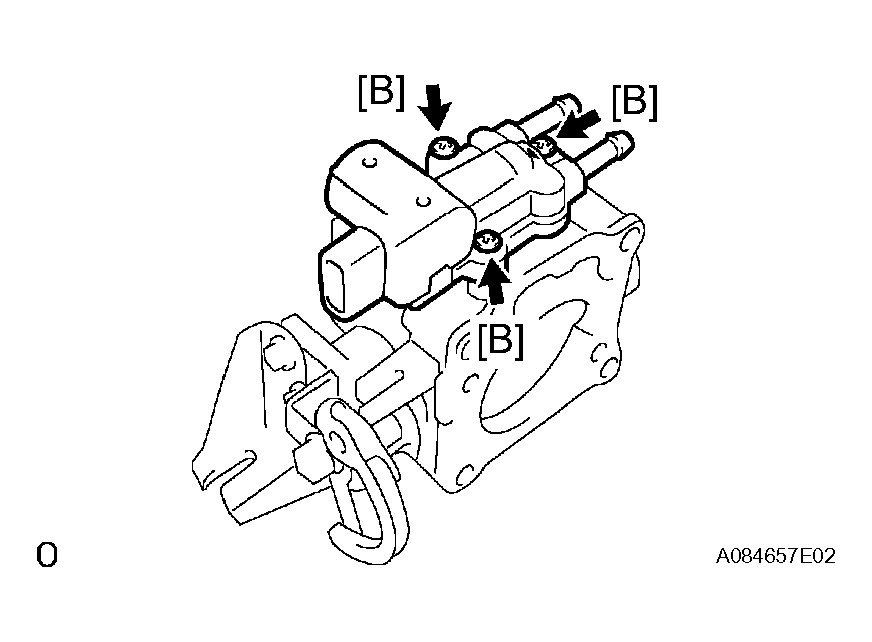

  Fig 1: Installing Throttle Body Idle Air Control Valve Assembly With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL E.F.I. THROTTLE POSITION SENSOR
1. Make sure that the throttle valve is fully closed.
2. With the throttle position sensor rotated 30° to 45° counterclockwise about the fully-closed position of the throttle valve, install the throttle position sensor onto the throttle body.
3. Rotate the throttle position sensor clockwise, then secure it with the 2 screws.
  Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)

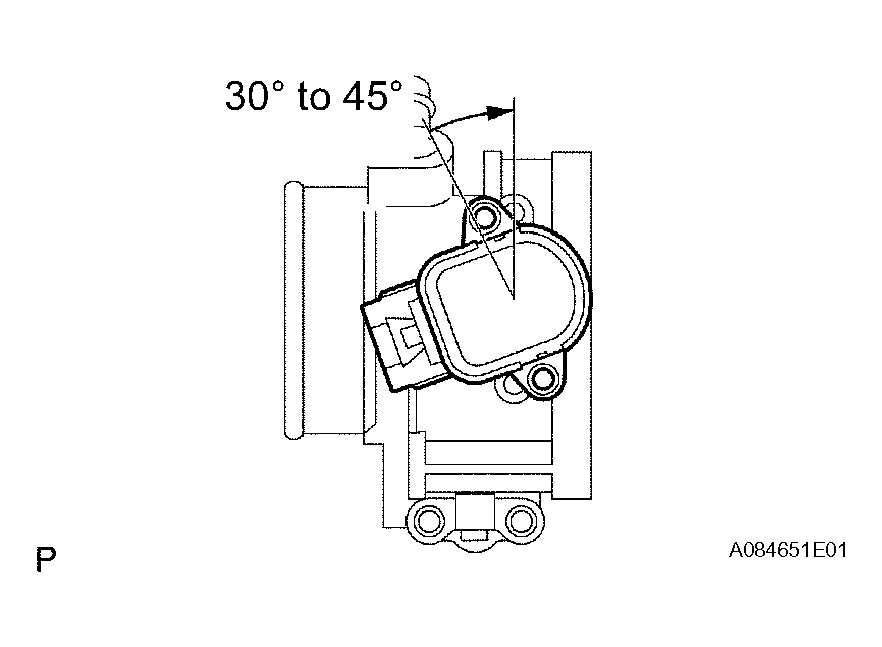

  Fig 2: Identifying Throttle Position Sensor Rotating Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
