Throttle Body: Removal

DRAIN ENGINE COOLANT
DISCONNECT BATTERY NEGATIVE TERMINAL
REMOVE CYLINDER HEAD COVER NO. 2
1. Remove the 3 bolts and nut, then remove the cylinder head cover No. 2.

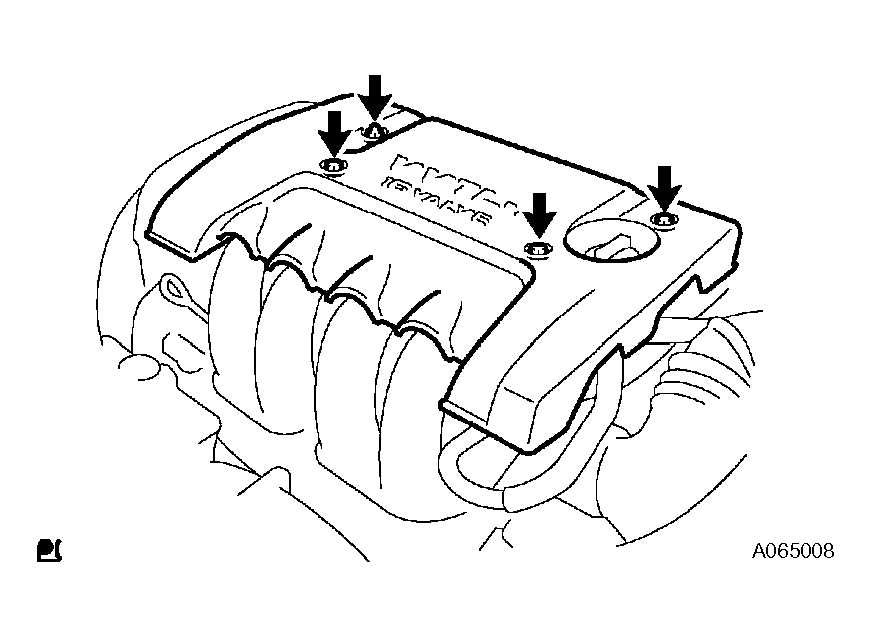

  Fig 1: Removing Cylinder Head Cover No.2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SEPARATE ACCELERATOR CONTROL CABLE ASSEMBLY
1. Remove the wire of the accelerator control cable from the accelerator control cable support No. 2 [A].
2. Loosen the nut [B].
3. Remove the cable end [C] from the throttle lever, then separate the accelerator control cable.

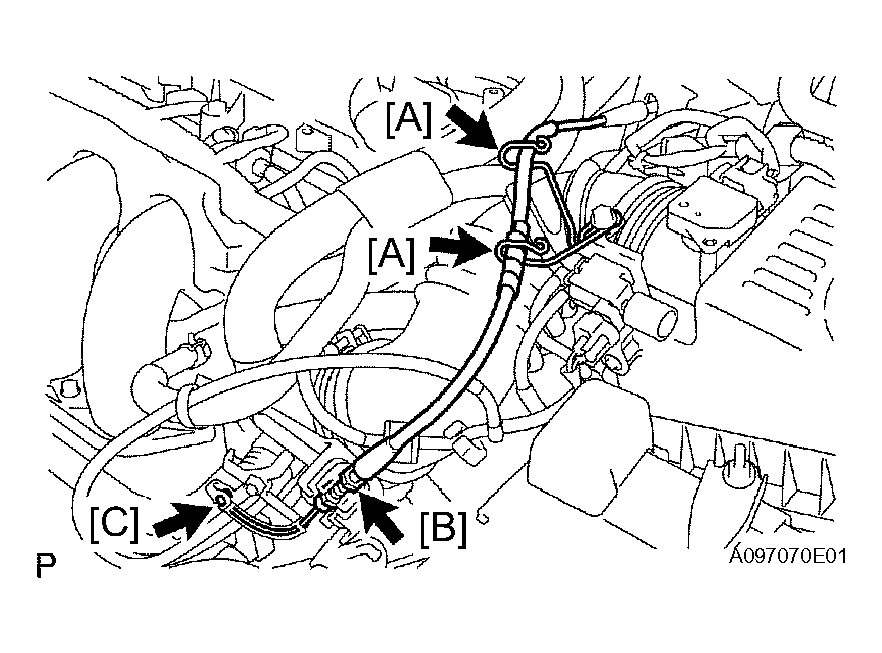

  Fig 2: Separating Accelerator Control Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR CLEANER CAP SUB-ASSEMBLY
1. Disconnect the mass air flow meter connector [A].
2. Disconnect the 2 VSV connectors [B].
3. Remove the 2 wire harness clamps [C].
4. Disconnect the fuel vapor feed hose No. 1 [D] from the VSV.
5. Disconnect the fuel vapor feed hose No. 3 [E] from the VSV.
6. Disconnect the 3 vacuum hoses [F].
7. Loosen the air cleaner hose clamp bolt [G].
8. Unlock the 2 clamp hooks [H].
9. Remove the air cleaner cap together with the air cleaner hose.

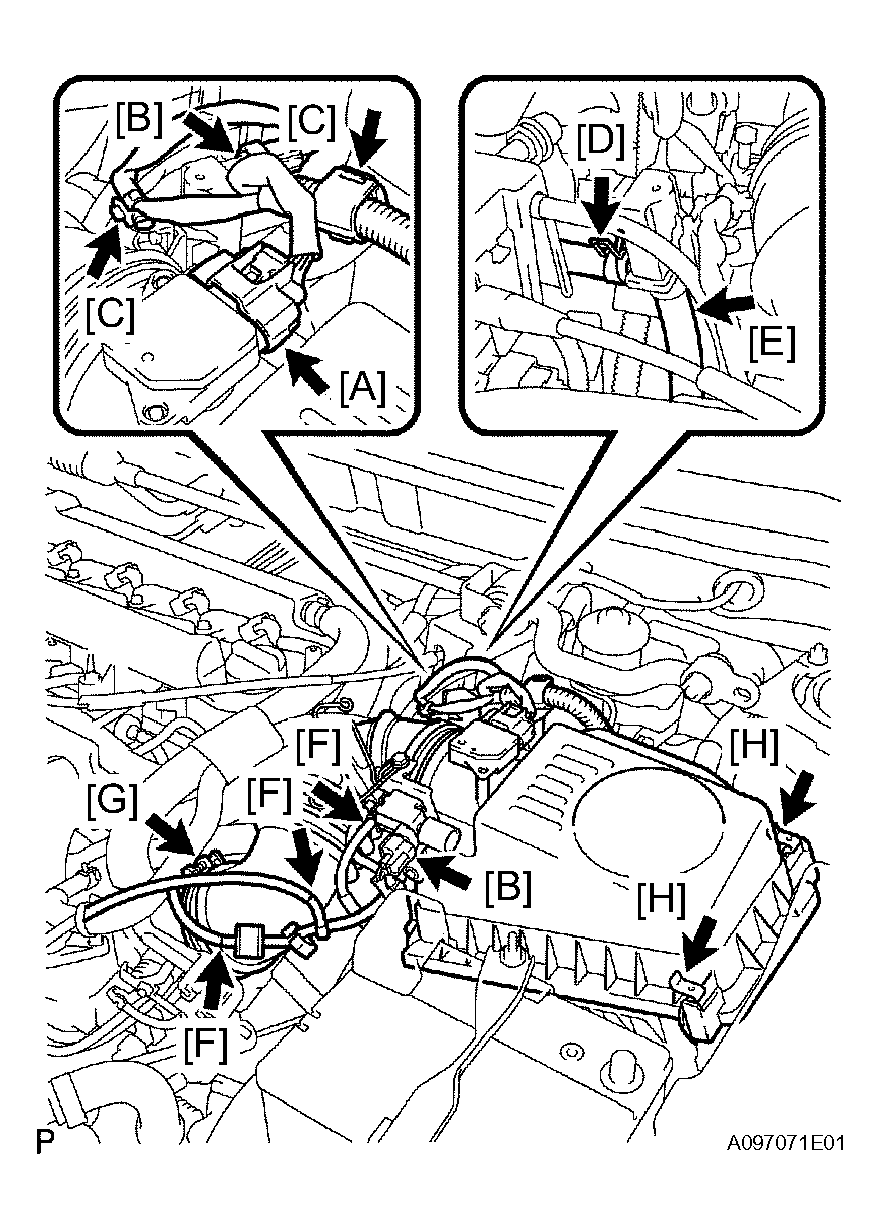

  Fig 3: Removing Air Cleaner Cap Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE THROTTLE BODY ASSEMBLY
1. Disconnect the throttle position sensor connector [A].
2. Disconnect the ISC valve connector [B].
3. Disconnect the ventilation hose [C].

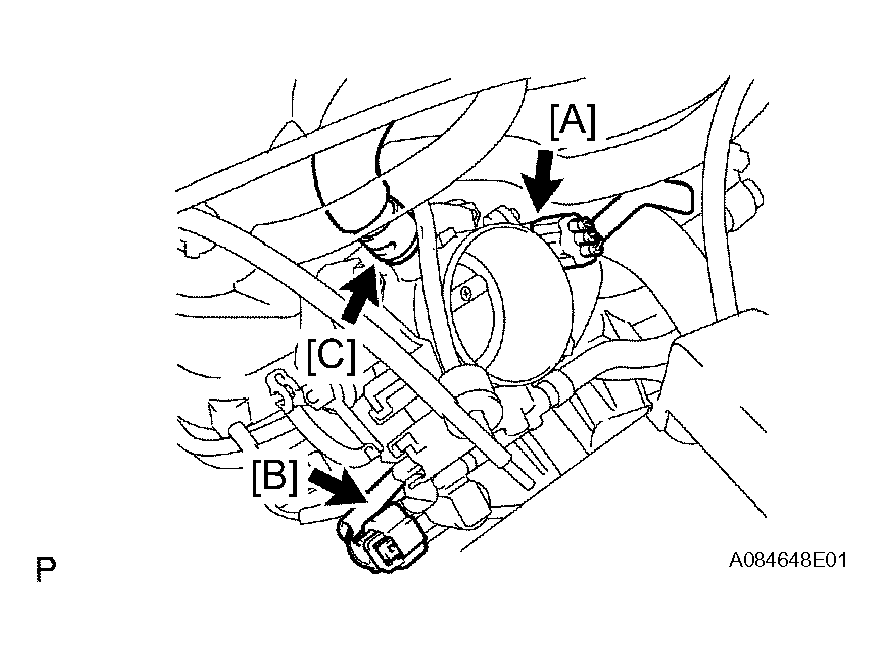

  Fig 4: Removing Throttle Body Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disconnect the water by-pass hose No. 3 [D].
5. Disconnect the water by-pass hose No. 2 [E].

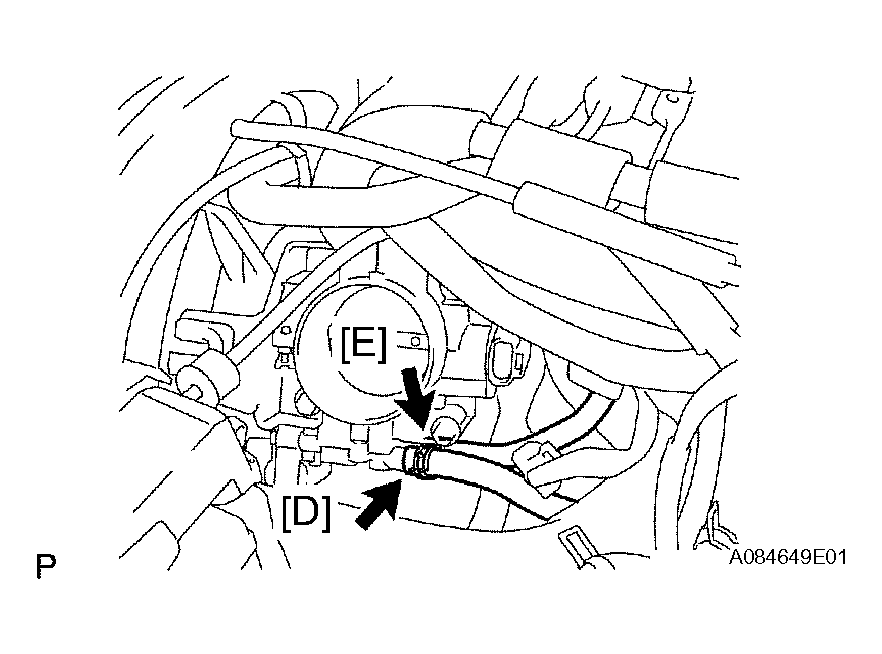

  Fig 5: Disconnecting Water By-Pass Hose No.2 And 3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the 2 bolts and 2 nuts [F], then remove the accelerator control cable bracket and throttle body.
7. Remove the gasket from the intake manifold.

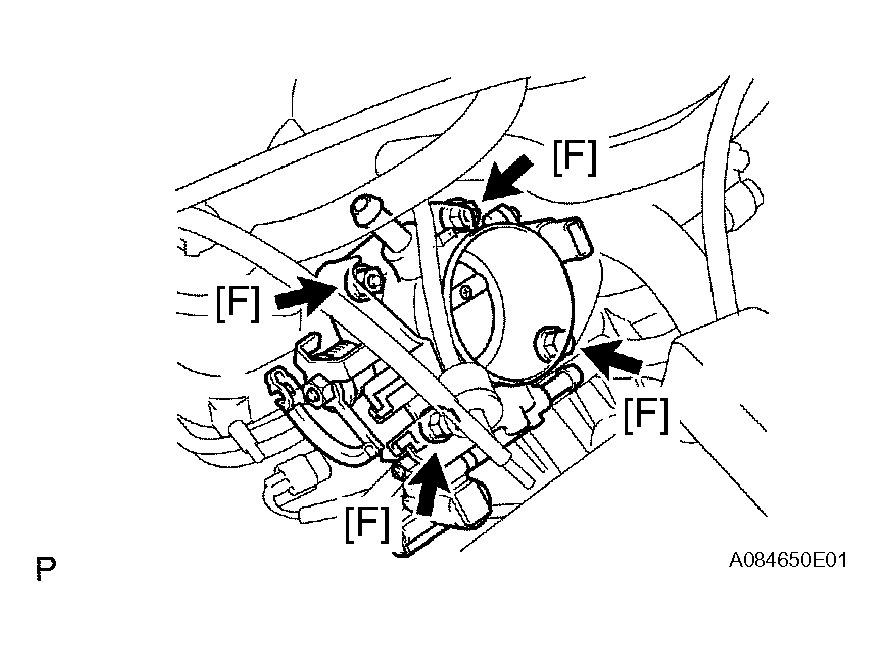

  Fig 6: Removing Bolts And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
