Brake Actuator: Components

Fig 1: Identifying Brake Actuator Components (1 Of 4)
G04474701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Brake Actuator Components (2 Of 4)
G04474702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

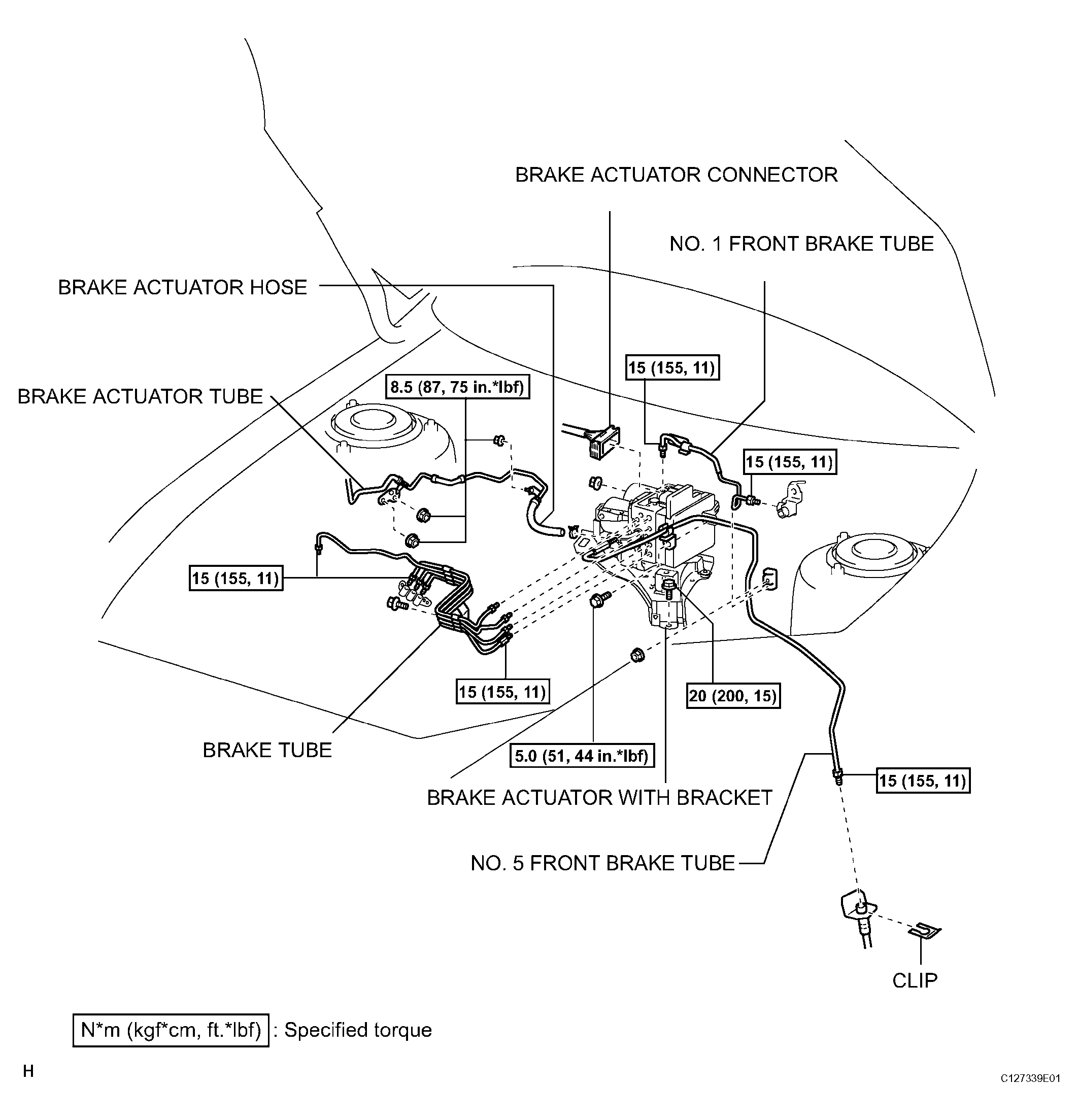

Fig 3: Identifying Brake Actuator Components (3 Of 4)
G04474703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

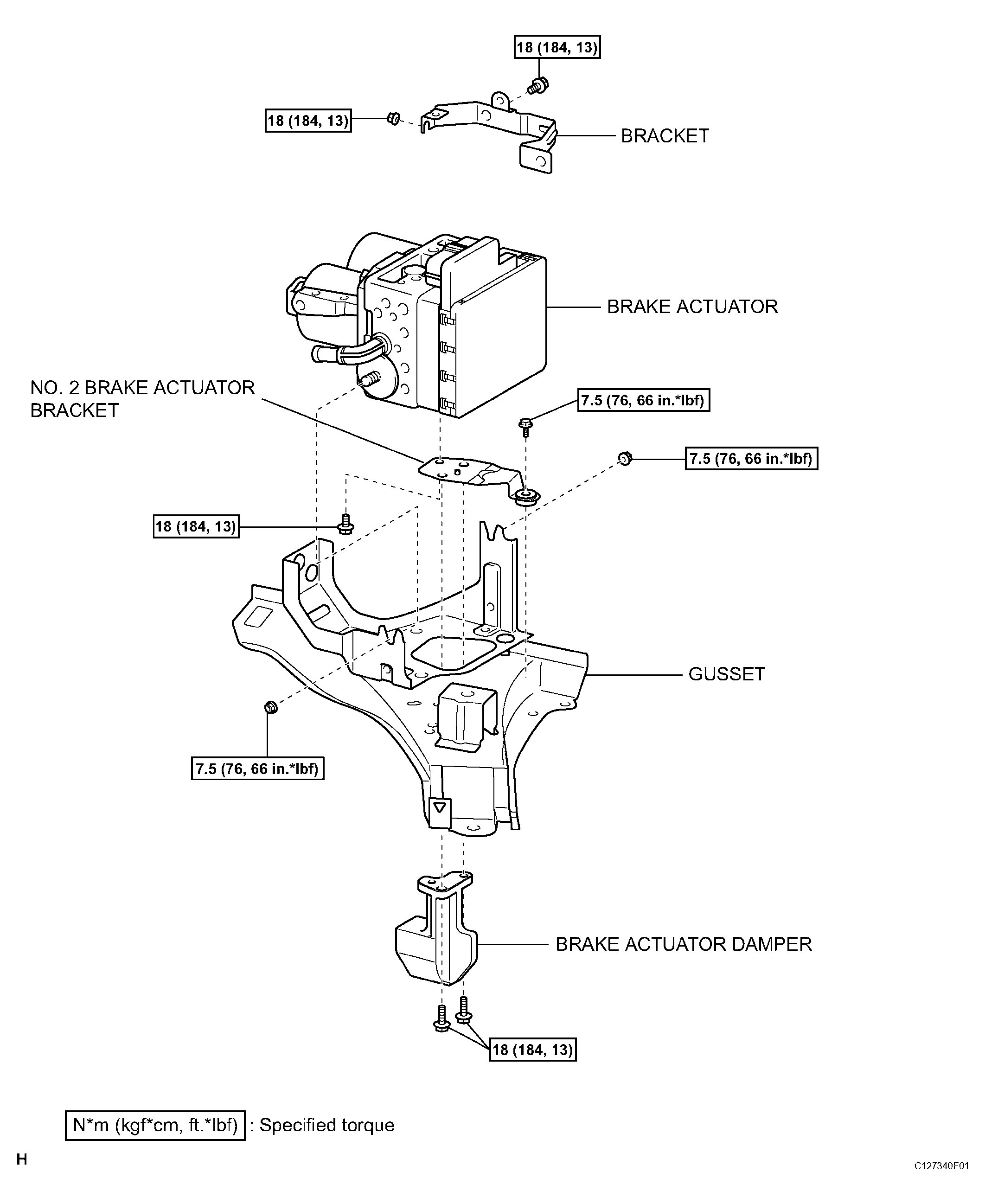

Fig 4: Identifying Brake Actuator Components (4 Of 4)
G04474704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
