Brake Actuator: Replacement

HINT:

Refer to the procedures from the removal of the front wiper arm LH/RH up until the removal of the windshield wiper motor and link assembly.

1. Move the shift lever to the P position. Apply the parking brake and connect the intelligent tester to the DLC3.
2. Turn the power switch ON (IG).
3. Turn on the intelligent tester. Select "ZERO DOWN".
   NOTE: Keep the fluid inside the reservoir above the "LOW" level by replenishing.

   HINT:

   • Accumulator pressure is released and accumulated repeatedly, which circulates the fluid inside the accumulator when performing this procedure.
   • The pump motor rotates and the accumulator is pressurized every time turning the power switch from OFF to ON (IG).
4. Turn the power switch OFF.

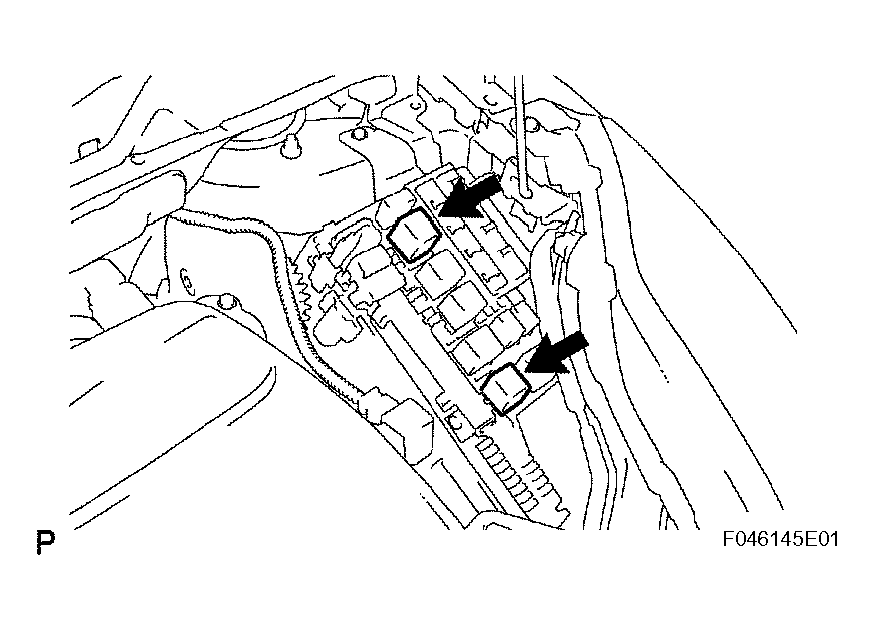

1. With the power switch OFF to prohibit brake control, remove the No. 1 and No. 2 motor relays.
   NOTE: If the pump motor operates while there is air remaining inside the brake actuator hose, the air will enter the actuator, resulting in difficulty in air bleeding.

Fig 1: Removing No. 1 And No. 2 Motor Relays

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Refer to the procedures from the removal of the engine under cover LH up until the removal of the inverter with converter.

1. Disconnect the connector.
2. Remove the 2 bolts and disconnect the water pump from the gusset.
   Fig 2: Removing Bolts And Disconnecting Water Pump From The Gusset

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

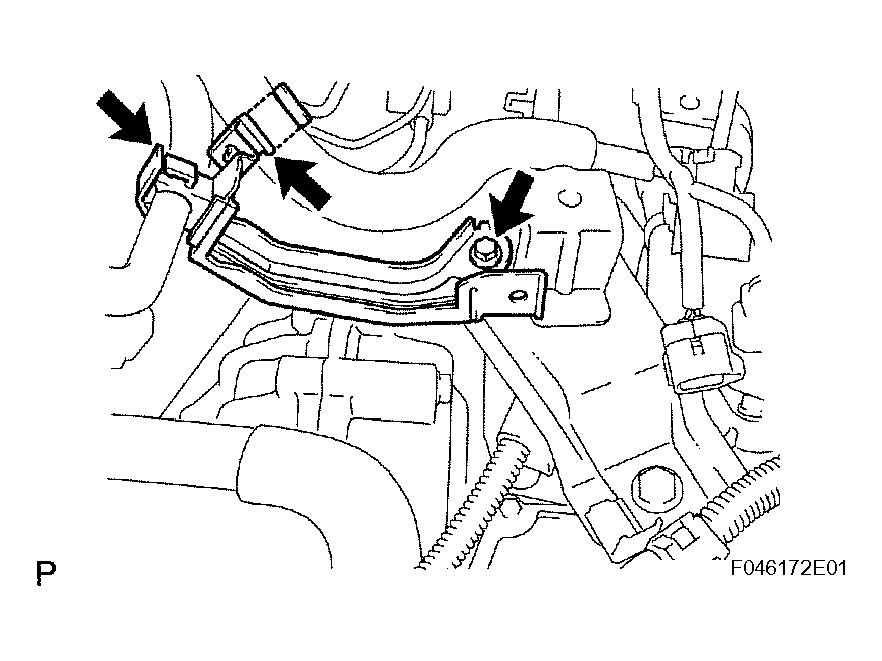

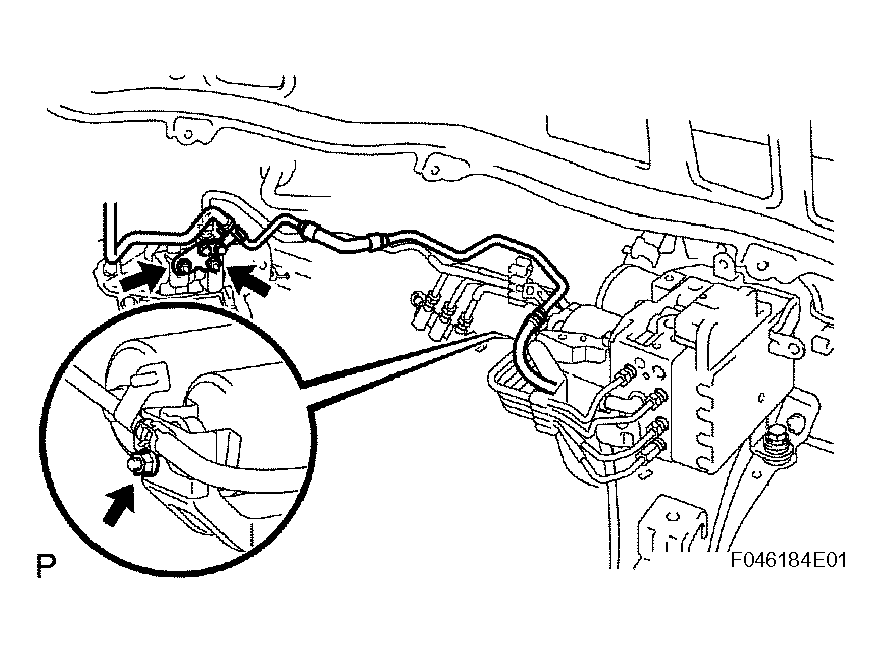

3. Remove the 2 clamps, bolt and heater hose bracket from the gusset.
   Fig 3: Removing Bolt And Heater Hose Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

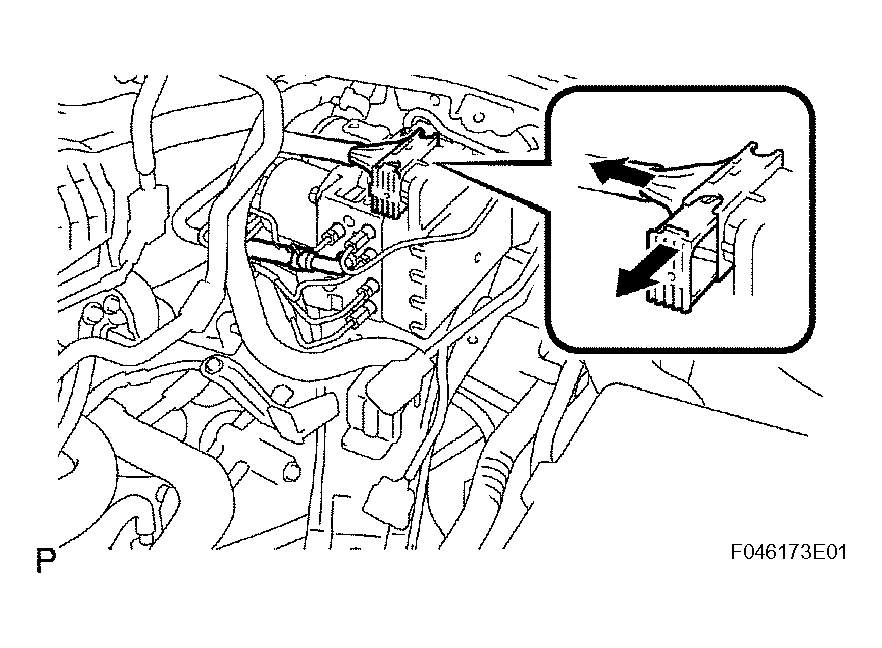

1. Release the lock and disconnect the brake actuator connector.
2. Remove the clip and disconnect the No. 2 brake actuator hose from the brake actuator.
   Fig 4: Disconnecting Brake Actuator Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST, disconnect the No. 5 front brake tube from the brake actuator and front brake flexible hose.

   SST 09023-00101

4. Remove the bolt and No. 5 front brake tube from the bracket of the brake actuator.

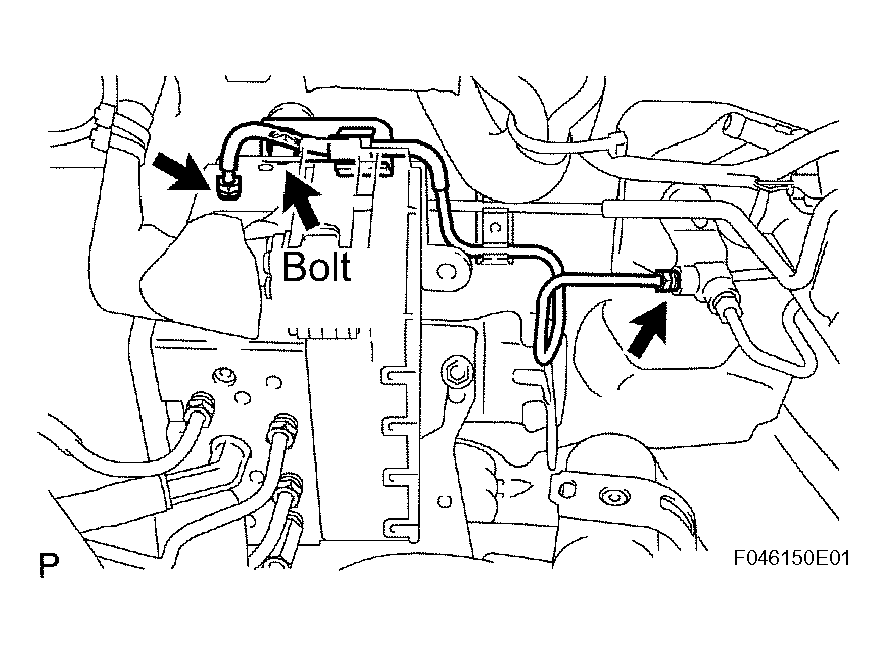

   Fig 5: Removing Bolt And No. 5 Front Brake Tube From The Bracket Of Brake Actuator

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Using SST, disconnect the No. 1 front brake tube.

   SST 09023-00101

6. Remove the bolt and No. 1 front brake tube from the bracket of the brake actuator.

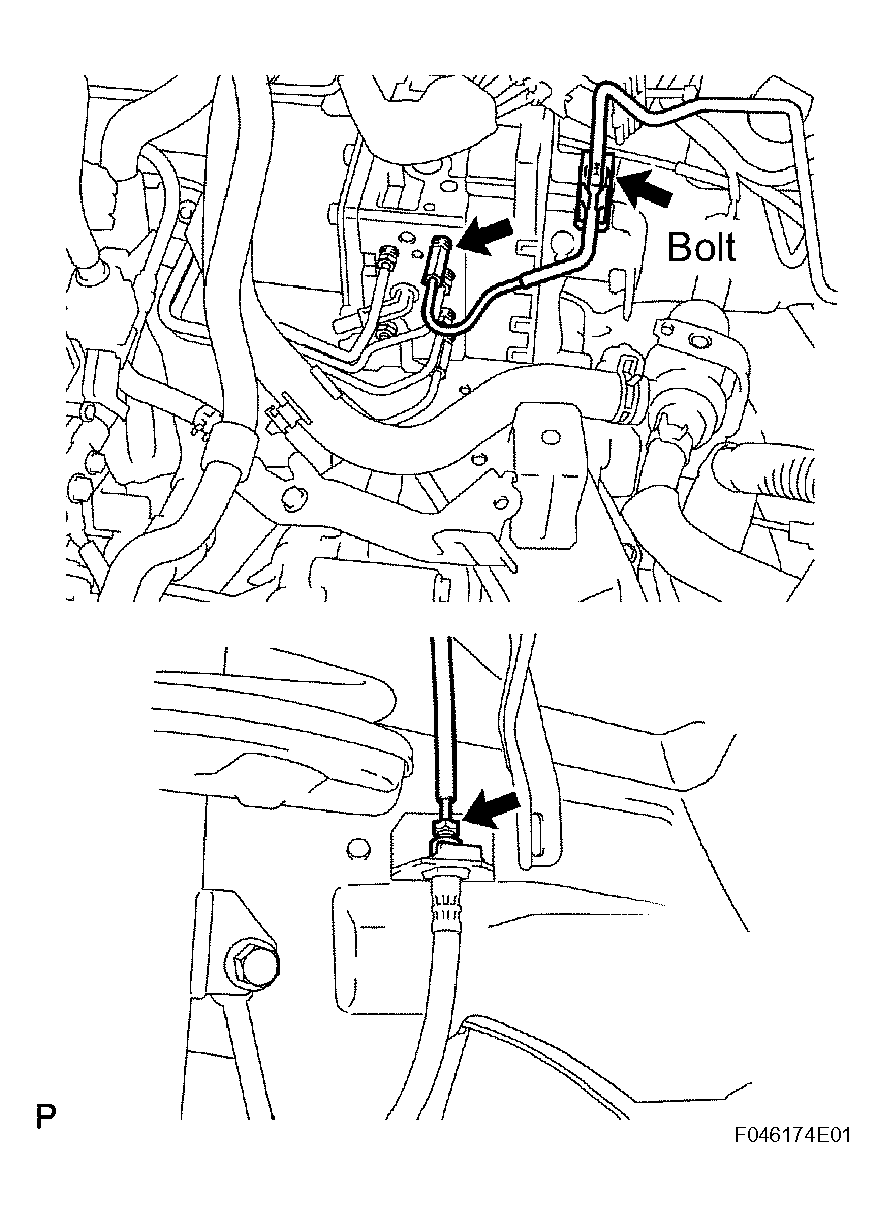

   Fig 6: Disconnecting No. 1 Front Brake Tube

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

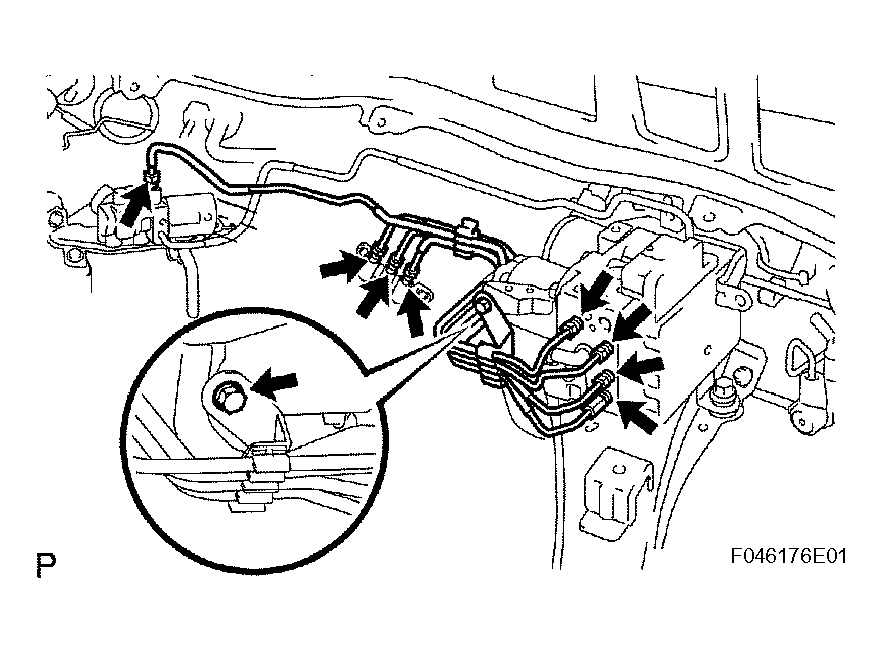

7. Remove the 3 nuts and brake actuator tubes from the brake stroke simulator cylinder and brake actuator.
   Fig 7: Removing Nuts And Brake Actuator Tubes

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Remove the bolt from the brake actuator.
9. Using SST, remove the 4 brake tubes from the brake stroke simulator cylinder and brake actuator.

   SST 09023-00101

   Fig 8: Removing Bolt From Brake Actuator

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. Remove the bolt, 2 nuts and brake actuator with gusset.

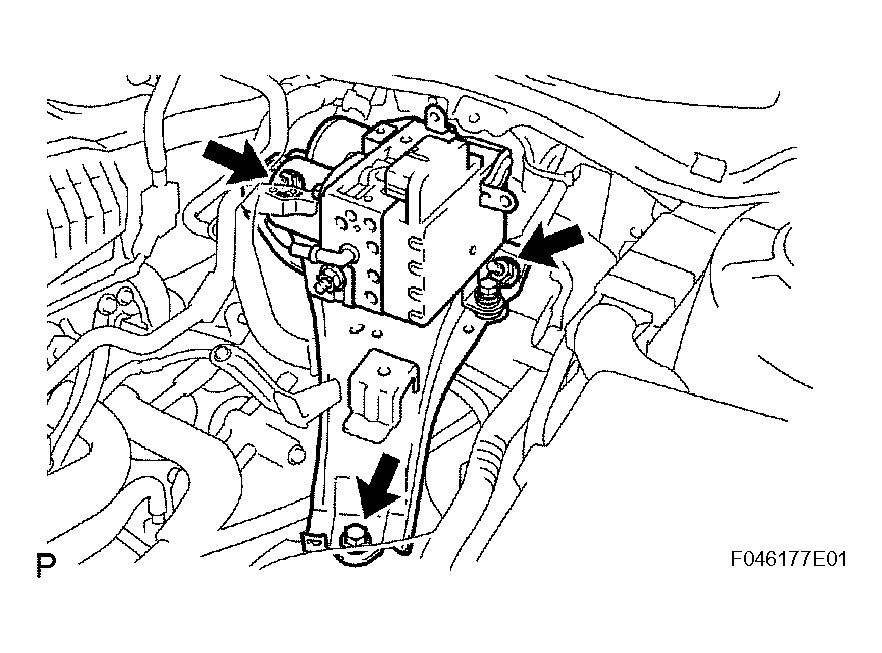

    Fig 9: Removing Bolt, Nuts And Brake Actuator With Gusset

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

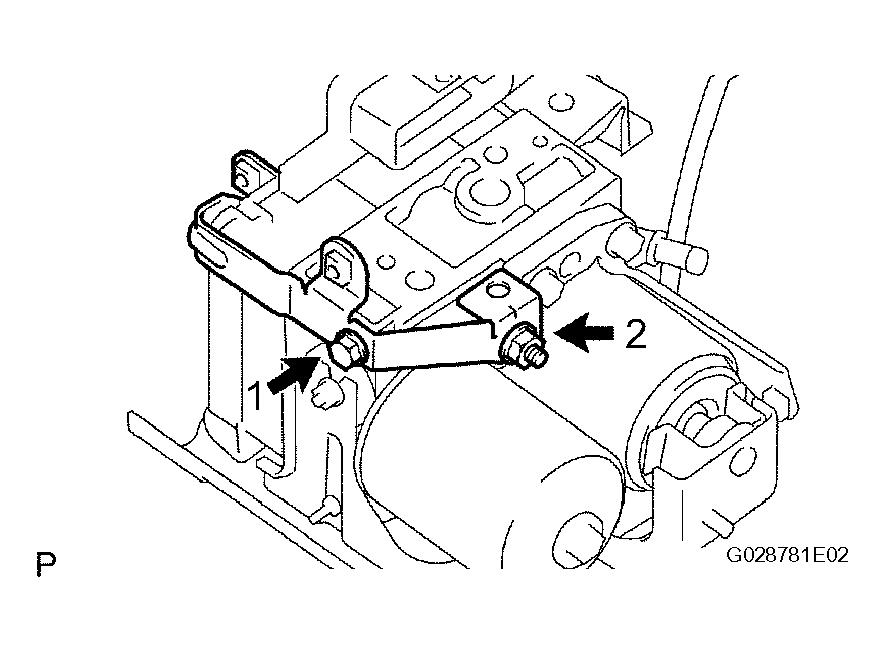

1. Remove the 2 bolts and brake actuator damper.

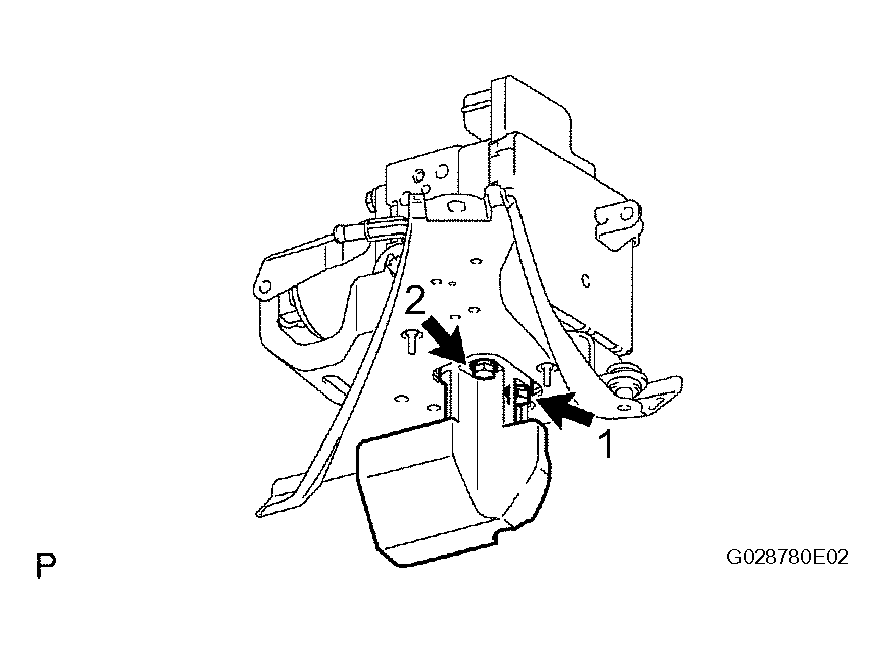

   Fig 10: Removing Bolts And Brake Actuator Damper

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

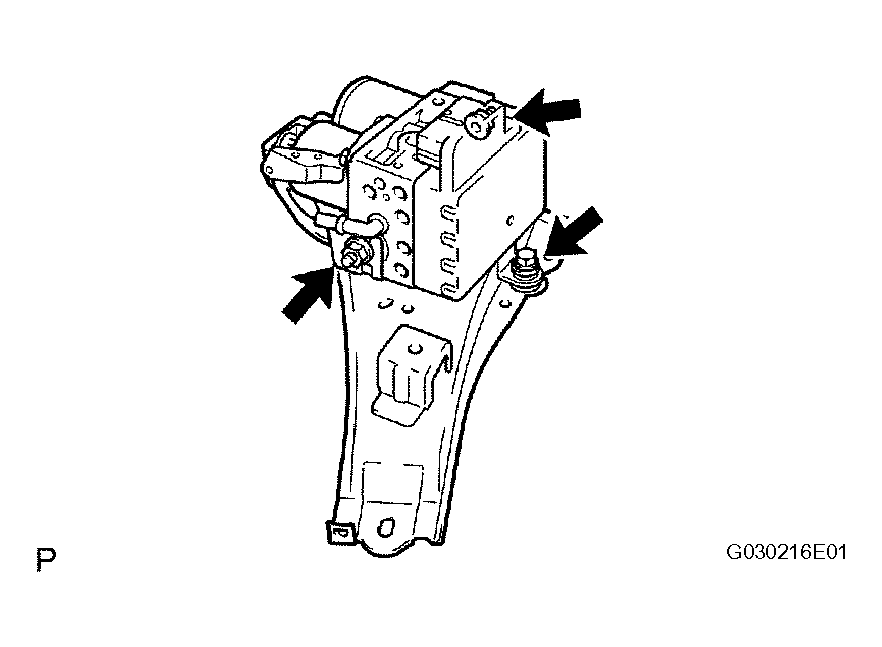

2. Remove the bolt, nut and bracket from the brake actuator.
   Fig 11: Removing Bolt, Nut And Bracket From Brake Actuator

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 nuts, bolt and brake actuator from the gusset.
   Fig 12: Removing Nuts, Bolt And Brake Actuator From Gusset

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the bolt and No. 2 brake actuator bracket from the brake actuator.

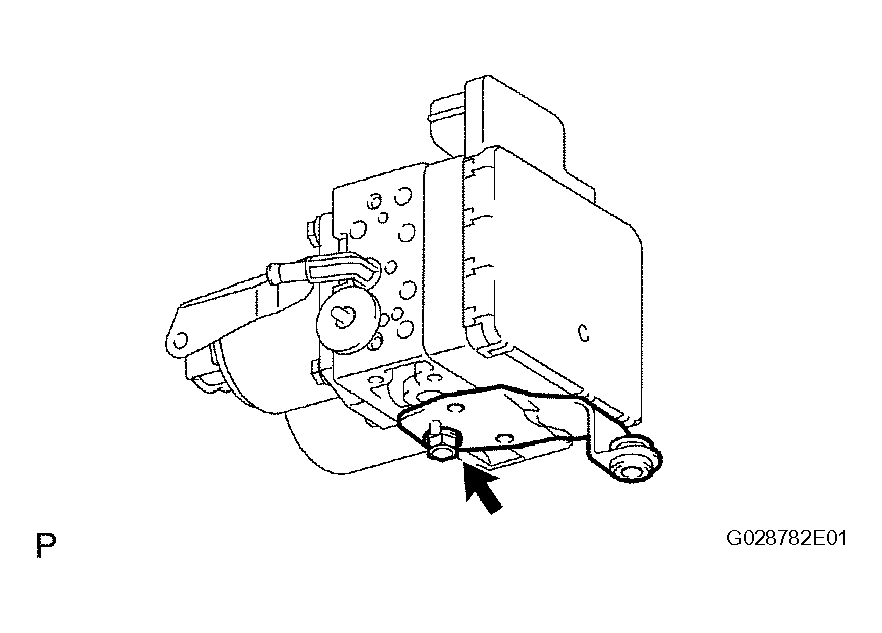

   Fig 13: Removing Bolt And No. 2 Brake Actuator Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Aligning the positioning pin, install the No. 2 brake actuator bracket to the brake actuator with the bolt.

   Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

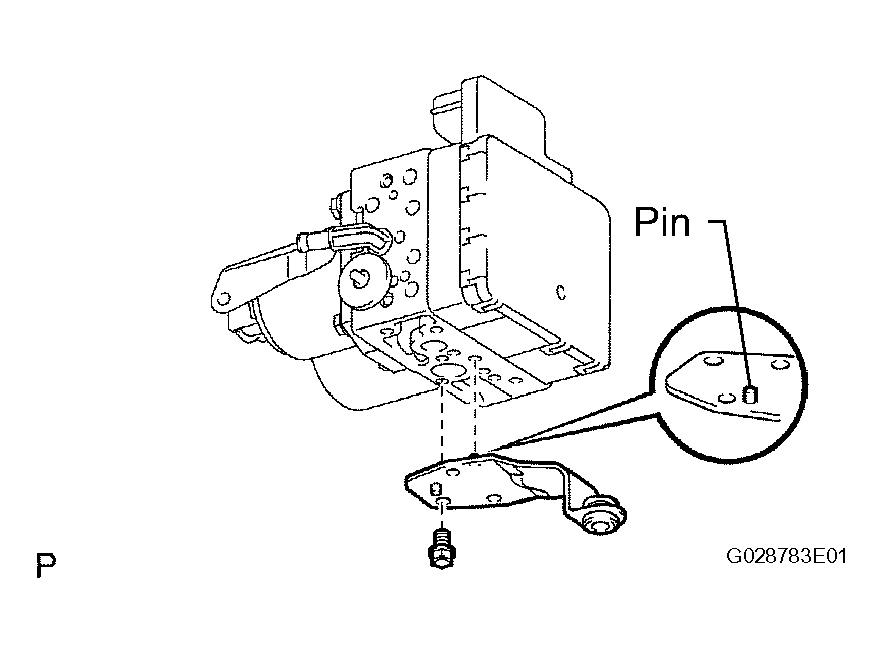

   Fig 14: Installing No. 2 Brake Actuator Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Aligning the positioning pin, install the brake actuator to the gusset with the 2 nuts and bolt.

   Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

   NOTE: Tighten the nuts and bolt in the order shown in the illustration.

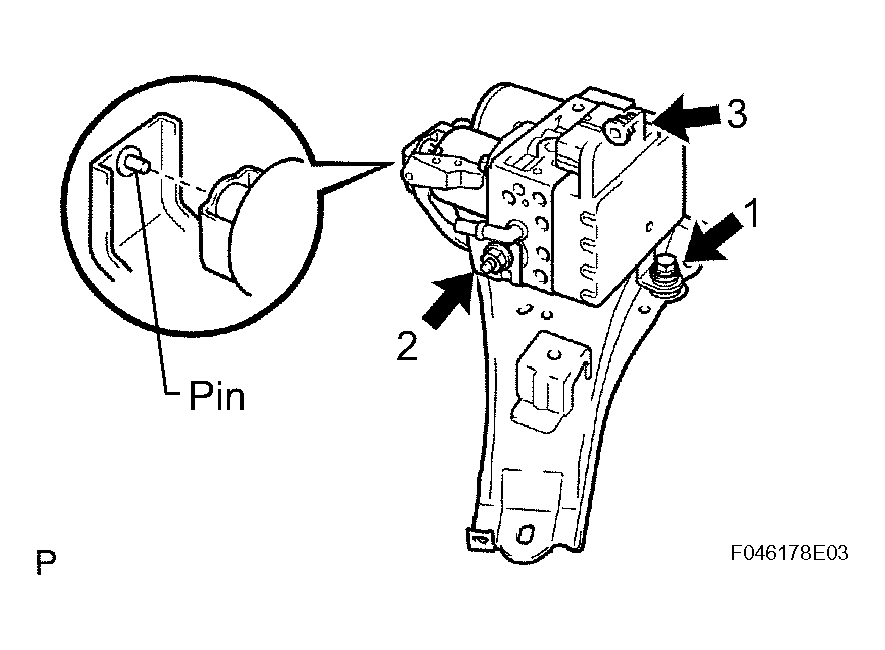

   Fig 15: Installing Brake Actuator To Gusset With Nuts And Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the bracket to the brake actuator with the bolt and nut.

   Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

   NOTE: Tighten the nut and bolt in the order shown in the illustration.
   Fig 16: Installing Bracket To Brake Actuator With Bolt And Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the brake actuator damper to the brake actuator with the 2 bolts.

   Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

   NOTE: Tighten the bolts in the order shown in the illustration.
   Fig 17: Installing Brake Actuator Damper To Brake Actuator With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the brake actuator with bracket.
   1. Install the brake actuator with gusset with the bolt and 2 nuts.

      Torque: 20 N*m (200 kgf*cm, 15 ft.*lbf)

      Fig 18: Installing Brake Actuator With Gusset With Bolt And Nuts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Using SST, install the 4 brake tubes to the brake stroke simulator cylinder and brake actuator.

      SST 09023-00101

      Torque: 15 N*m (155 kgf*cm, 11 ft.*lbf)

   3. Set the brake tube with the clamp bracket bolt.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

      Fig 19: Installing Brake Tubes To Brake Stroke Simulator Cylinder And Brake Actuator

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Install the brake actuator tube with the 2 nuts.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

      Fig 20: Installing Brake Actuator Tube With Nuts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. Set the brake actuator tube with the nut.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

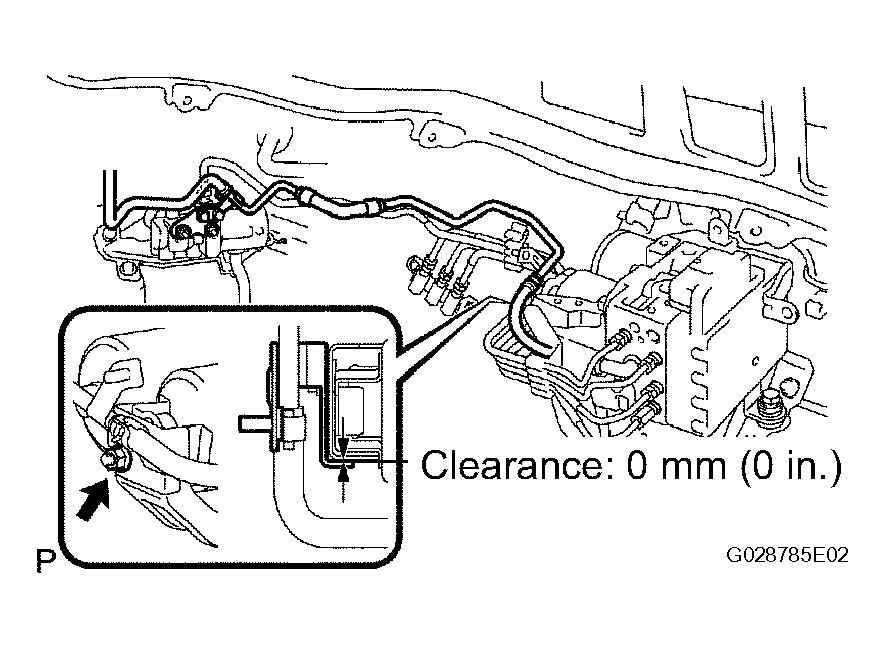

      NOTE: Press the brake actuator tube so that there is no clearance between the bracket and the actuator tube as shown in the illustration, and tighten the nut.
      Fig 21: Installing Brake Actuator Tube With Nut

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   6. Using SST, install the No. 1 front brake tube to the brake actuator and 2-way.

      SST 09023-00101

      Torque: 15 N*m (155 kgf*cm, 11 ft.*lbf)

   7. Install the No. 1 front brake tube to the bracket of the brake actuator with the bolt.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

      Fig 22: Installing Front Brake Tube To Bracket Of Brake Actuator With Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

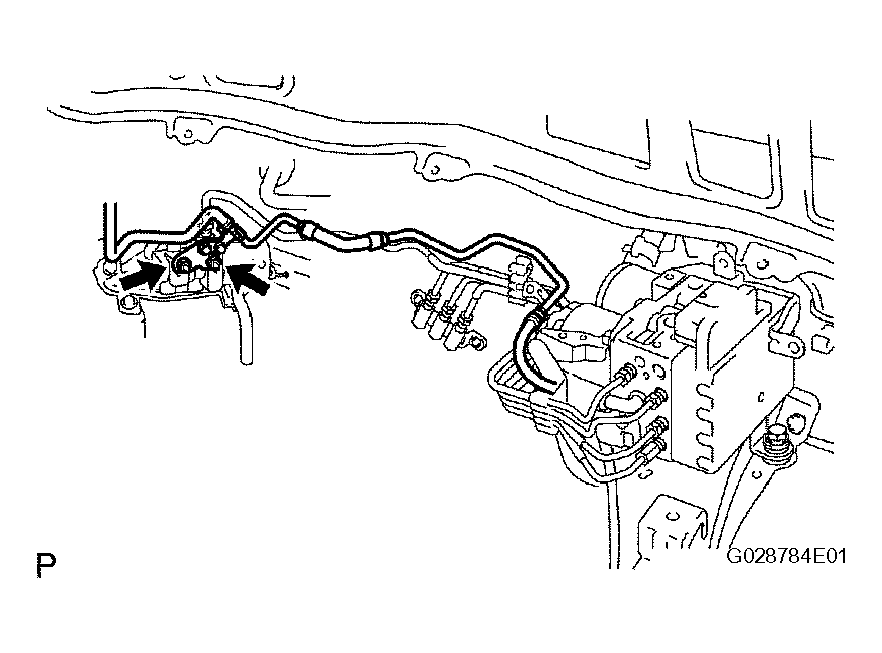

   8. Using SST, connect the No. 5 front brake tube.

      SST 09023-00101

      Torque: 15 N*m (155 kgf*cm, 11 ft.*lbf)

   9. Install the bracket of the No. 5 front brake tube with the bolt.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

      Fig 23: Connecting No. 5 Front Brake Tube

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

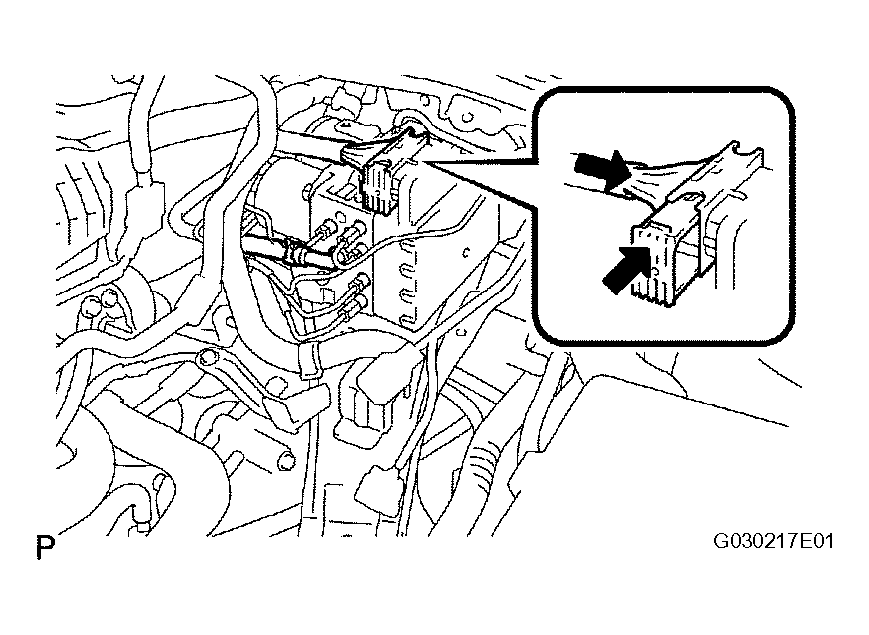

   10. Connect the brake actuator connector and fix it with the lock.
   11. Install the No. 2 brake actuator hose to the brake actuator with the clip.
       Fig 24: Connecting Brake Actuator Connector

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the water pump with motor and bracket.
   1. Install the heater hose bracket to the gusset with the 2 clamps and bolt.
      Fig 25: Installing Heater Hose Bracket To Gusset With Clamps And Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Install the heater water pump with the 2 bolts.

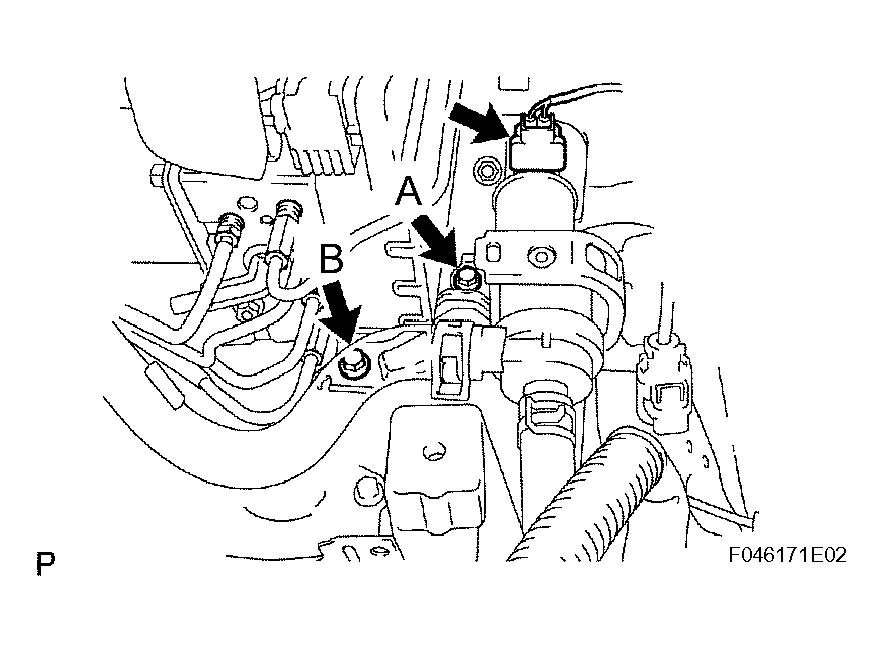

      NOTE: Tighten bolt A and then bolt B.
   3. Connect the heater water pump connector.

HINT:

Refer to the procedures from the installation of the inverter with converter up until the installation of the engine under cover LH.

Fig 26: Connecting Heater Water Pump Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Refer to the procedures from the installation of the windshield wiper motor and link assembly up until the installation of the front wiper arm LH/RH.

HINT:

Refer to the procedures from the removal of the No. 1 instrument panel register assembly up until the removal of the instrument panel sub-assembly.

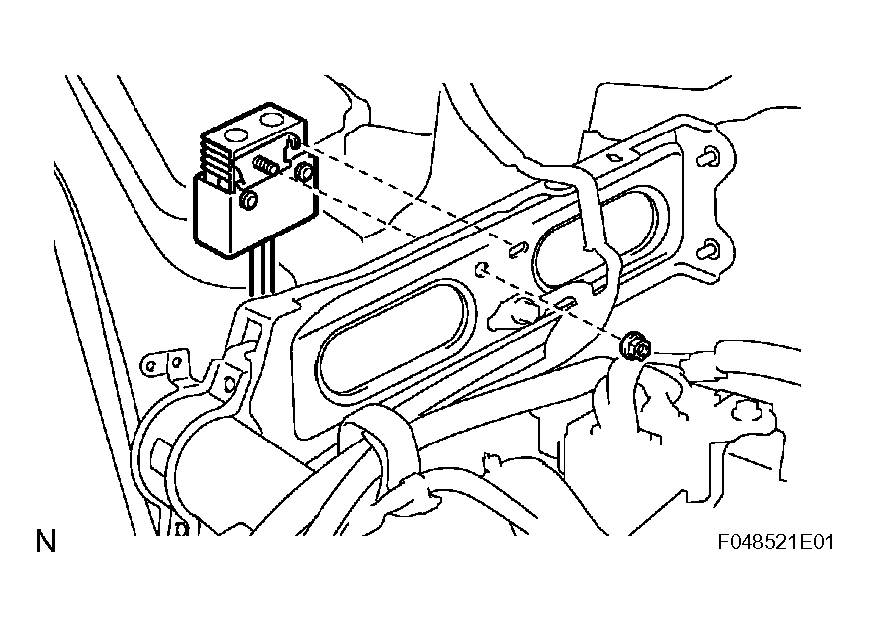

1. Remove the nut.
2. Disconnect the connector and remove the resistor.

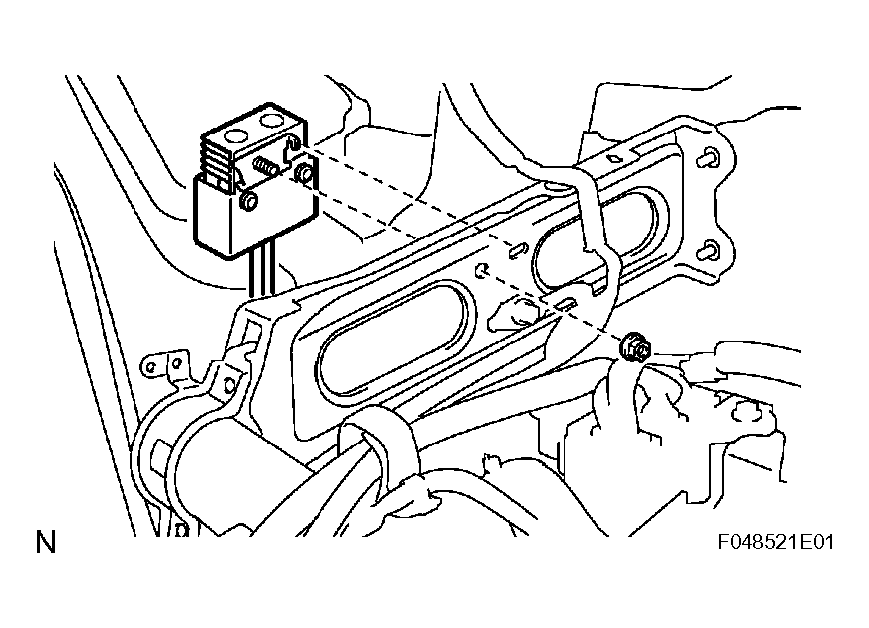

   Fig 27: Removing Nut And Brake Actuator Resistor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the connector and install the resistor.
2. Install the nut.

   Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

HINT:

Refer to the procedures from the installation of the instrument panel sub-assembly up until the installation of the No. 1 instrument panel register assembly.

Fig 28: Installing Brake Actuator Resistor With Nut
