Brake Control Power Supply: Components

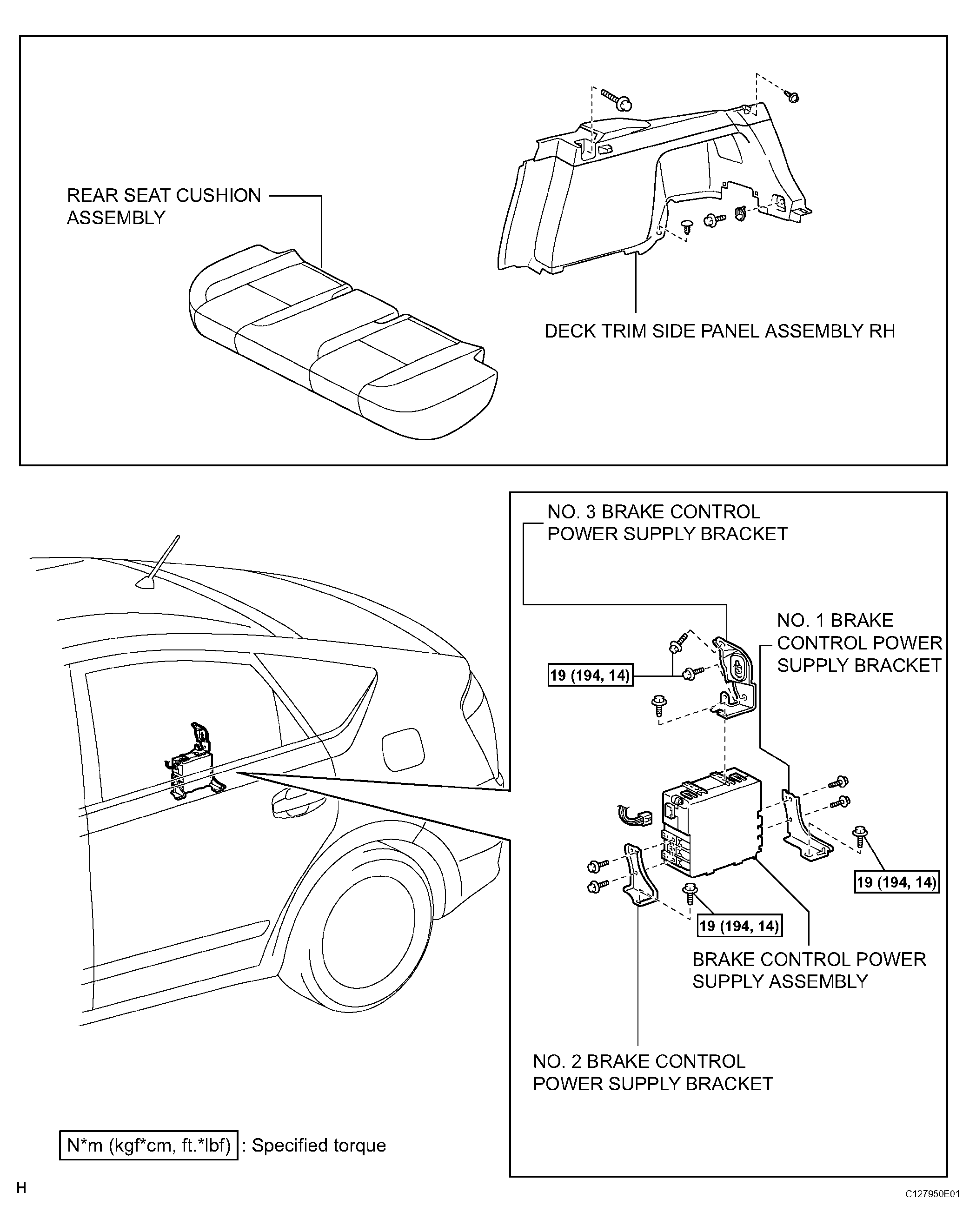

Fig 1: Identifying Brake Control Power Supply Components
G04474755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
