Front Speed Sensor: Installation

INSTALL FRONT SPEED SENSOR
NOTE:
- Do not twist the sensor wire harness during installation.
- Check that there is no foreign matter attached to the tip and connecting portion of the speed sensor.
1. Clean the connecting portion of the sensor.
2. Install the sensor with the bolt.
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
3. Install the clip to the front shock absorber.

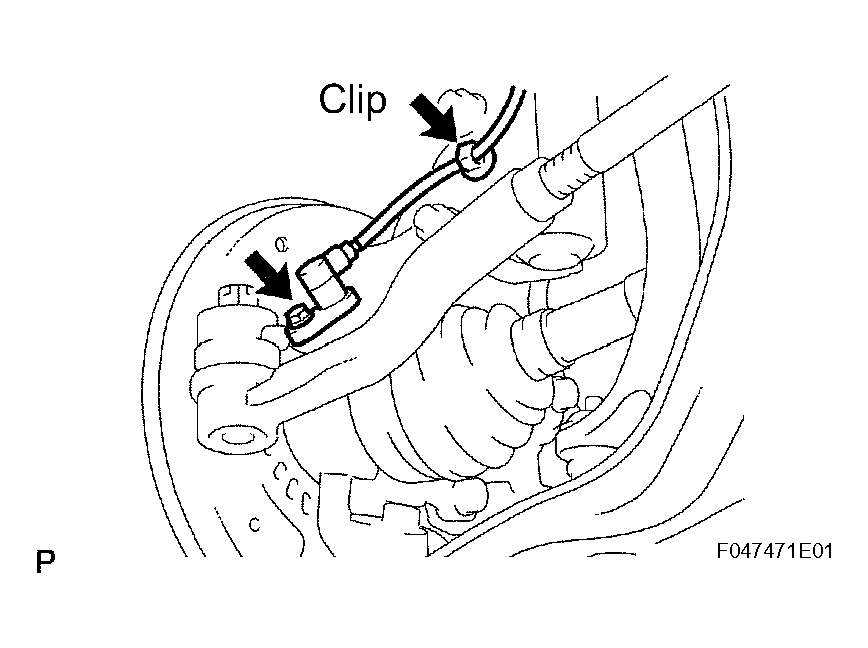

  Fig 1: Installing Clip To Front Shock Absorber
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the sensor clamps to the body and front shock absorber with the bolts A and B.
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf) for bolt A

  19 N*m (192 kgf*cm, 14 ft.*lbf) for bolt B

  NOTE: Tighten the bolt B together with the brake flexible hose clamp and sensor clamp. The brake flexible hose clamp should be placed above.

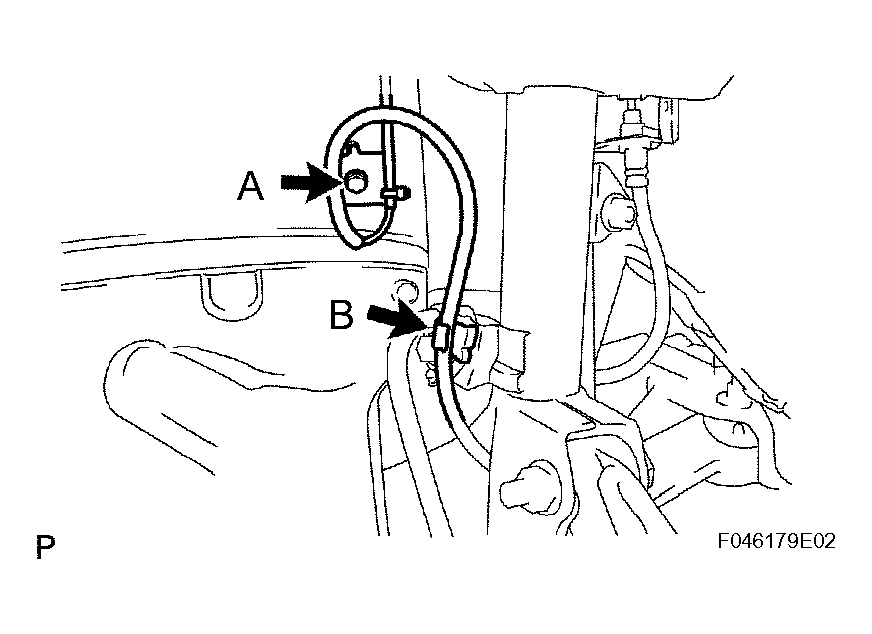

  Fig 2: Installing Sensor Clamps To Body And Front Shock Absorber With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the sensor connector.
INSTALL FRONT FENDER LINER
INSTALL FRONT WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
CHECK ABS SPEED SENSOR SIGNAL
1. Check the speed sensor signal (see TEST MODE PROCEDURE ).

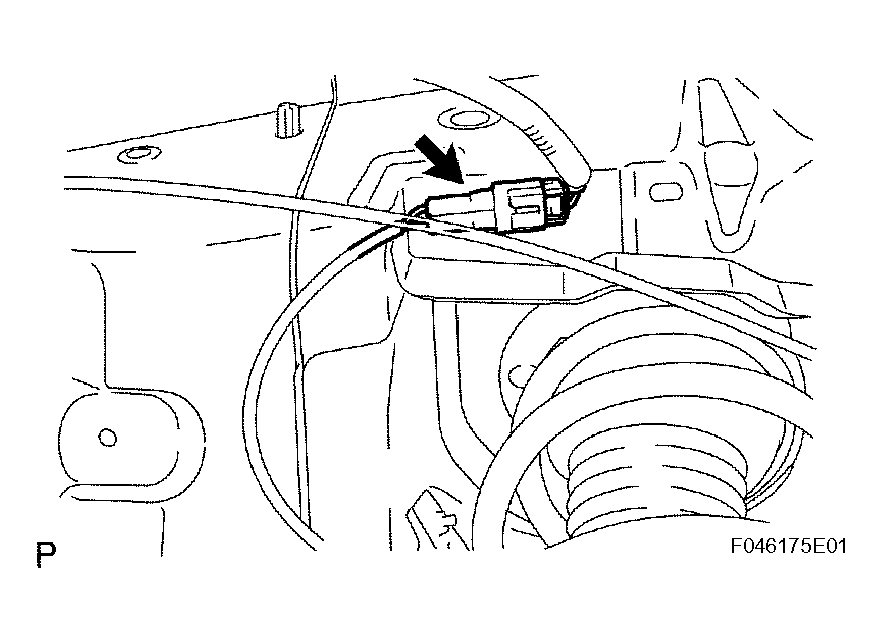

  Fig 3: Connecting Sensor Connector
