Front Speed Sensor: Removal

REMOVE FRONT WHEEL
REMOVE FRONT FENDER LINER
REMOVE FRONT SPEED SENSOR
1. Disconnect the sensor connector.

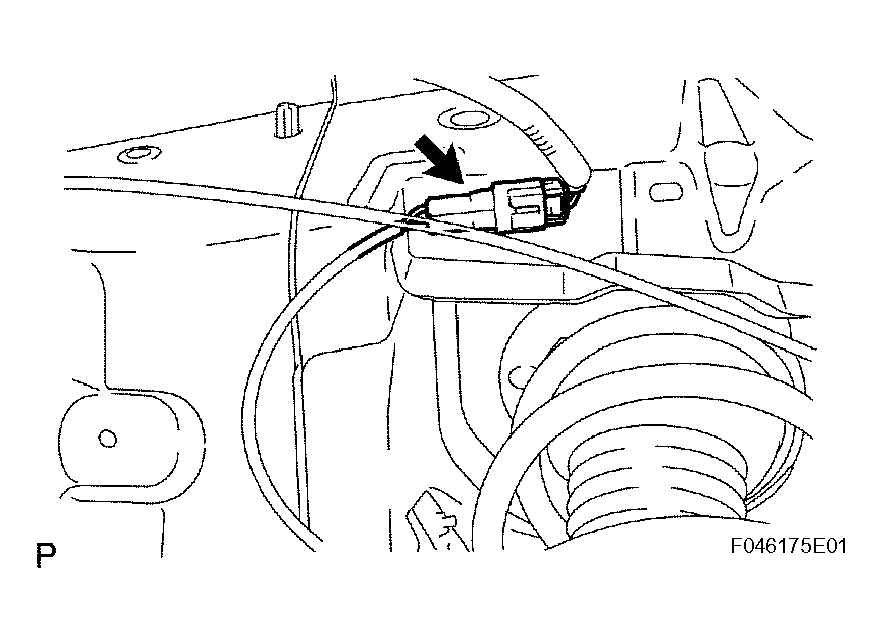

  Fig 1: Disconnecting Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts (A and B) and 2 sensor clamps from the body and front shock absorber.
  HINT:

  The bolt B is tightened together with the brake flexible hose clamp.

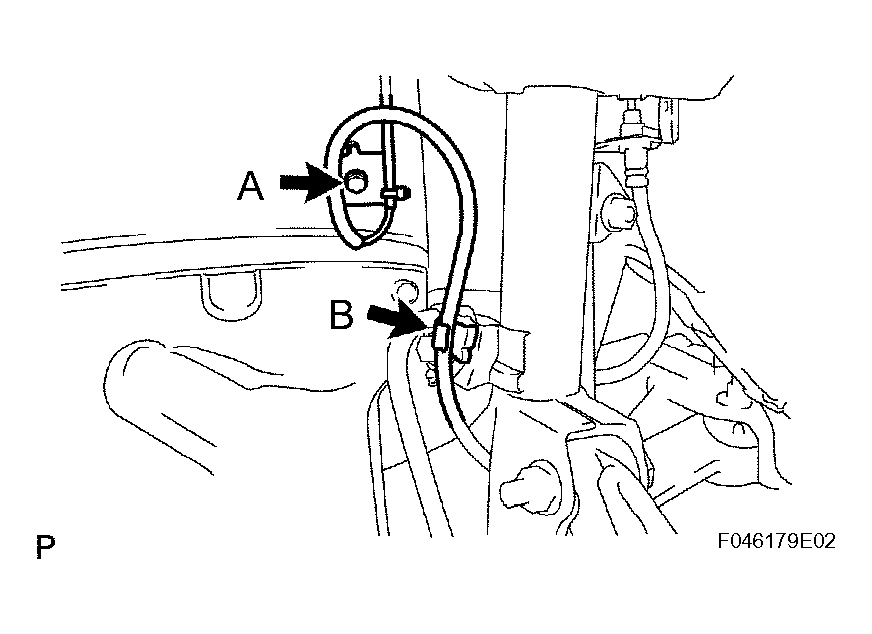

  Fig 2: Removing Bolts And Sensor Clamps From Body And Front Shock Absorber
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the clip from the front shock absorber.
4. Remove the bolt and sensor.
  NOTE: Do not allow foreign matter to attach to the tip or connecting portion of the speed sensor.

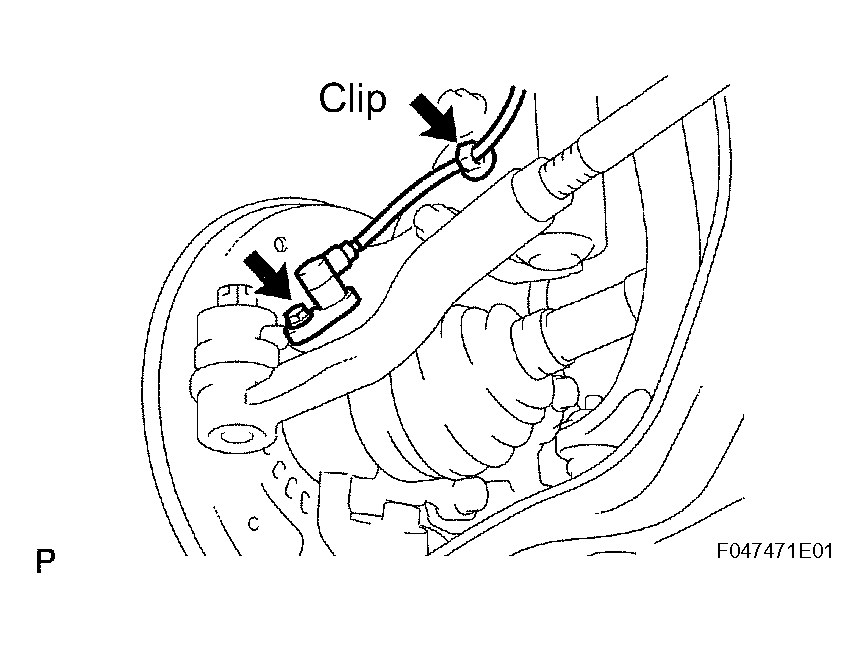

  Fig 3: Removing Clip From Front Shock Absorber
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
