Skid Control Sensor: Installation

1. Wipe off sealant attached to the sensor's fitting surface with white gasoline.
   NOTE: Prevent foreign matter from attaching to the sensor rotor.
2. Install a new sensor to the rear axle hub and bearing. The sensor connector should be placed in the lowest position.

   HINT:

   The narrow side of the rear axle hub and bearing should be placed below.

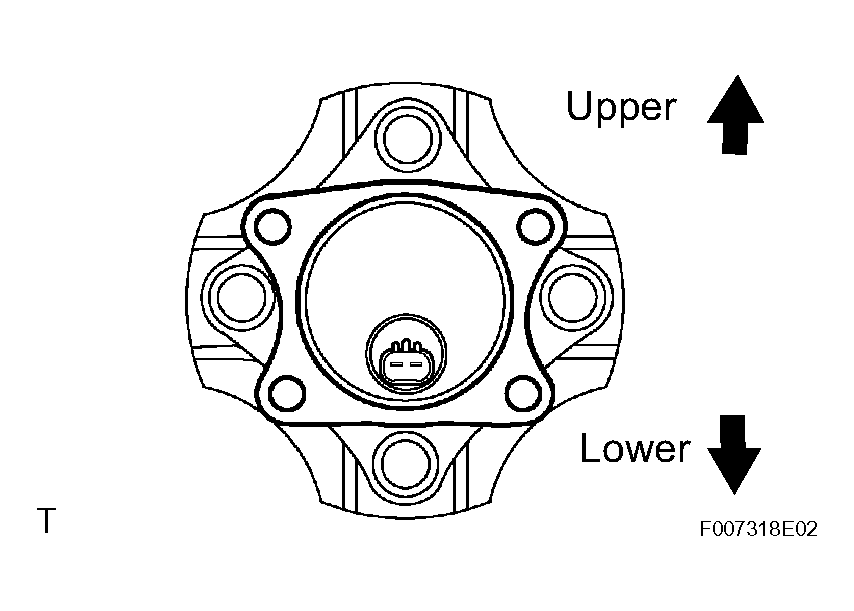

   Fig 1: Installing Skid Control Sensor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

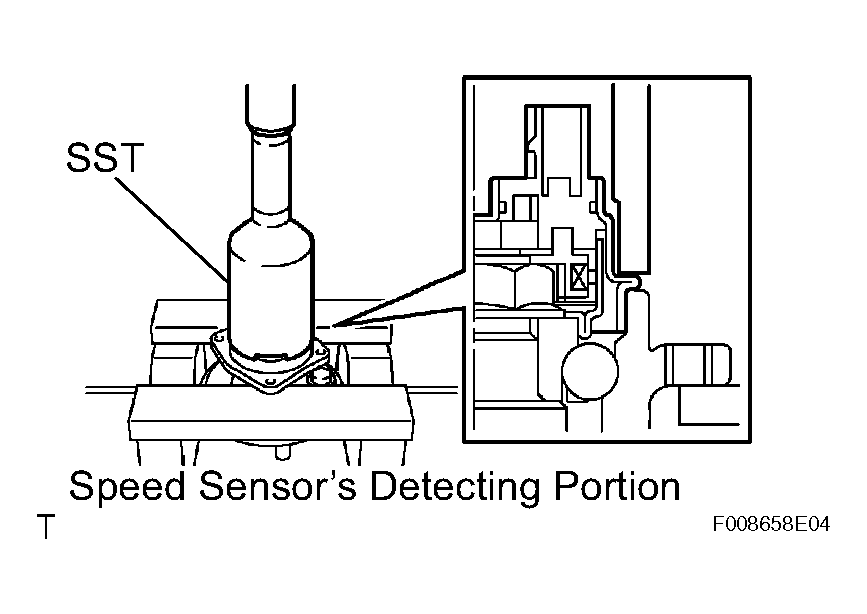

3. Using SST and a press, press the speed sensor so that it becomes flush with the rear axle hub and bearing.

   SST 09214-76011

   NOTE:

   • Do not use a hammer on the sensor.
   • Check that there is no foreign matter such as iron chips on the sensor's detecting portion.
   • Slowly press the sensor in straight.

Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

1. Inspect the rear wheel alignment (see REAR WHEEL ALIGNMENT ).

1. Check the speed sensor signal (see TEST MODE PROCEDURE  ).
