Skid Control Sensor: Removal

  1. REMOVE REAR WHEEL
  2. REMOVE REAR BRAKE DRUM SUB-ASSEMBLY (See  REMOVAL  )
  3. SEPARATE SKID CONTROL SENSOR WIRE
  4. REMOVE REAR AXLE HUB AND BEARING ASSEMBLY (see  REMOVAL  )
  5. REMOVE SKID CONTROL SENSOR
    1. Install the 4 hub nuts to the 4 rear axle hub bolts. Placing an aluminum plate below the rear axle hub and bearing, place them into the vise.
      NOTE: Replace the rear axle hub and bearing if it is dropped or receives a strong shock.
    2. Using a pin punch (3 mm) or hammer, remove the 2 pins from SST (09520-00031) and separate the attachment (09521-00010).
    3. Using SST and 2 bolts (90101-12007), remove the sensor from the rear axle hub and bearing.

      SST 09520-00031 (09520-00040), 09521-00020, 09950-00020

      NOTE:
      • Pull the sensor off straight, being careful not to make contact with the sensor rotor.
      • If the sensor rotor is damaged or deformed, replace the rear axle hub and bearing.
      • Do not scratch the area where the sensor contacts the rear axle hub and bearing.
      • Do not allow foreign matter to attach to the sensor rotor.

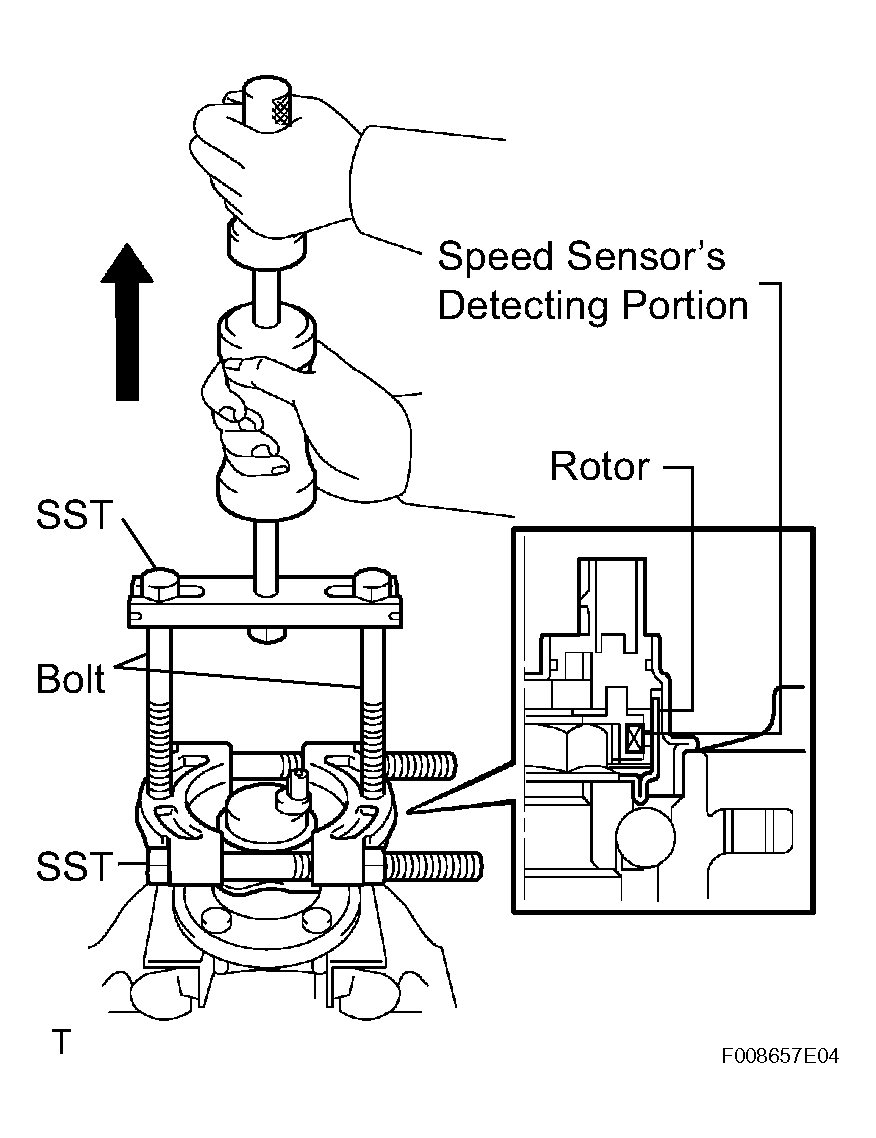

        Fig 1: Removing Sensor From Rear Axle Hub And Bearing
        G04474743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
