Steering Angle Sensor: Components

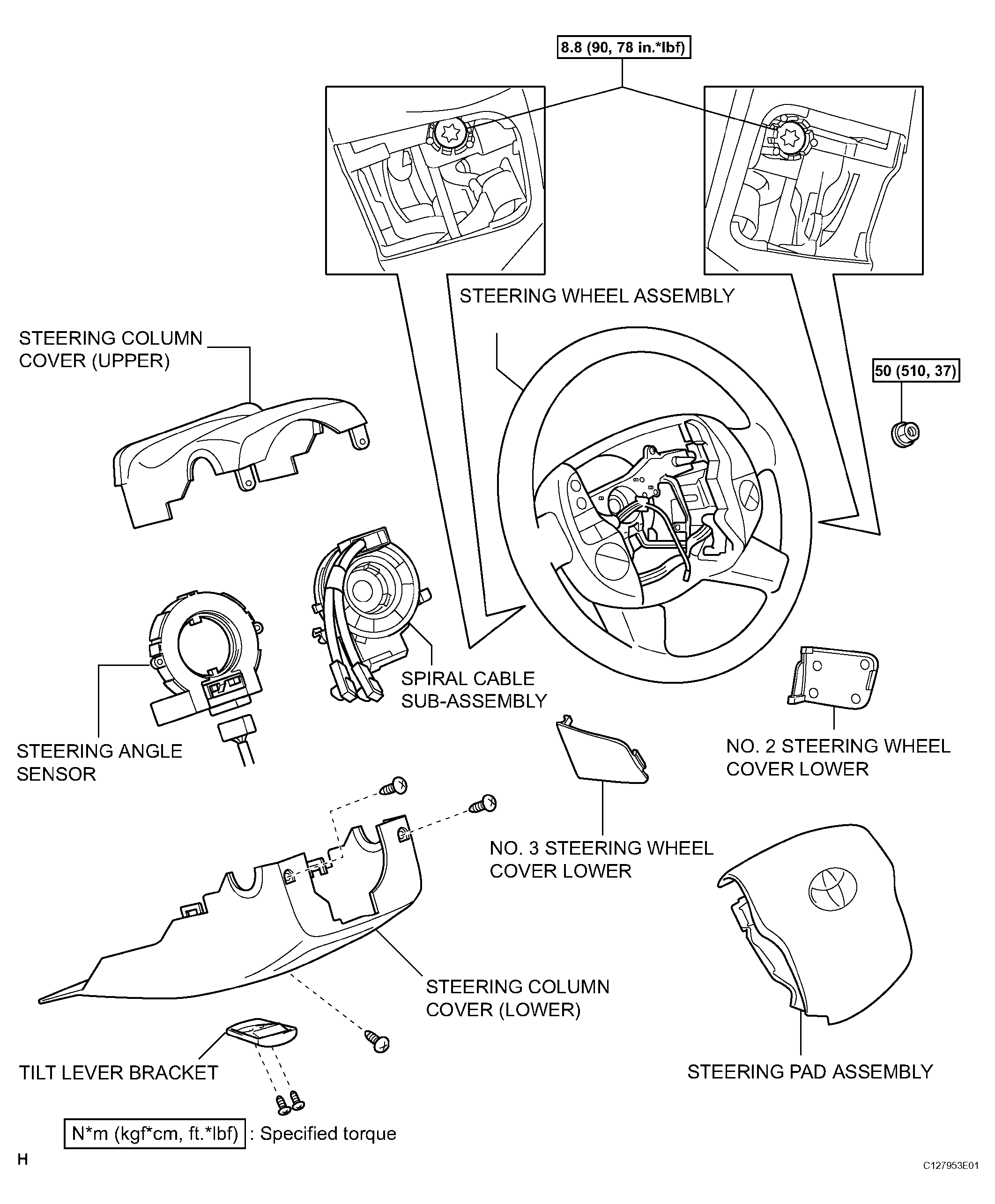

Fig 1: Identifying Steering Angle Sensor Components
G04474749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
