Steering Angle Sensor: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE NO. 2 STEERING WHEEL COVER LOWER
  3. REMOVE NO. 3 STEERING WHEEL COVER LOWER
  4. REMOVE STEERING PAD ASSEMBLY (See  REMOVAL  )
  5. REMOVE STEERING WHEEL ASSEMBLY (See  REMOVAL  )
  6. REMOVE TILT LEVER BRACKET (See  REMOVAL  )
  7. REMOVE STEERING COLUMN COVER (See  REMOVAL  )
  8. REMOVE SPIRAL CABLE SUB-ASSEMBLY (See  REMOVAL  )
  9. REMOVE STEERING ANGLE SENSOR
    1. Detach the 6 claws and remove the sensor from the spiral cable.

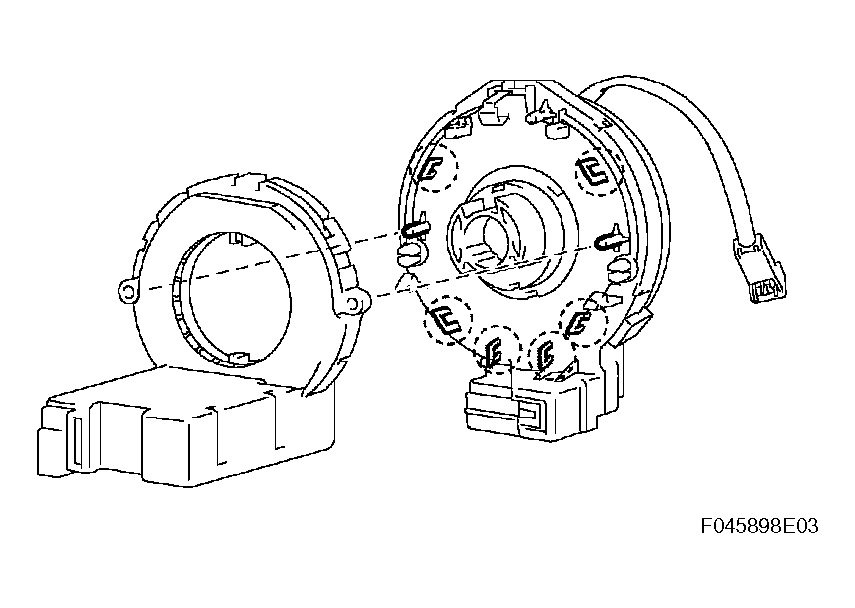

      Fig 1: Detaching Claws And Removing Sensor From Spiral Cable
      G04474750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
