Camshaft Position Sensor: Components

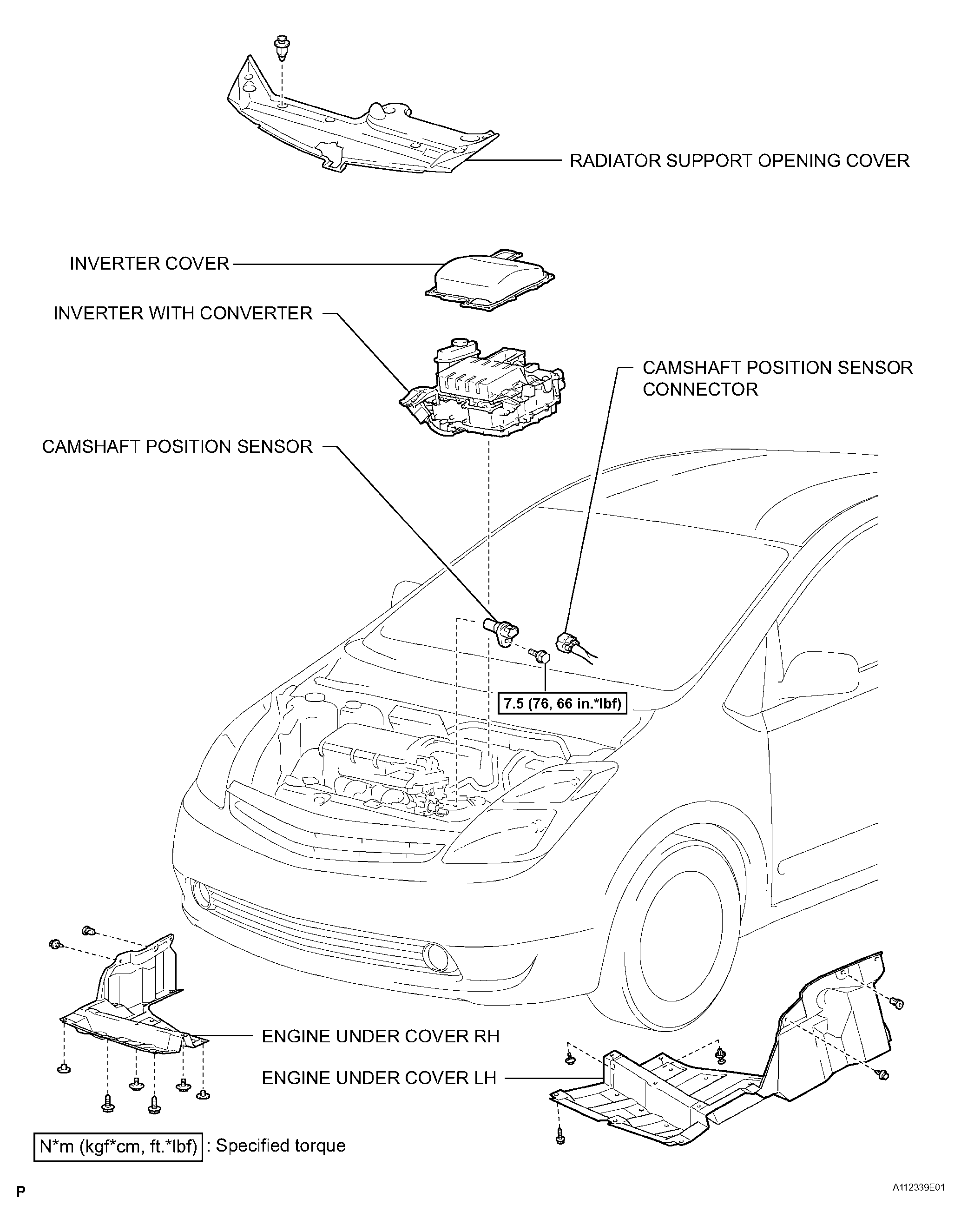

Fig 1: Identifying Camshaft Position Sensor Components
G04472303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
