Camshaft Timing Oil Control Valve Assembly: Components

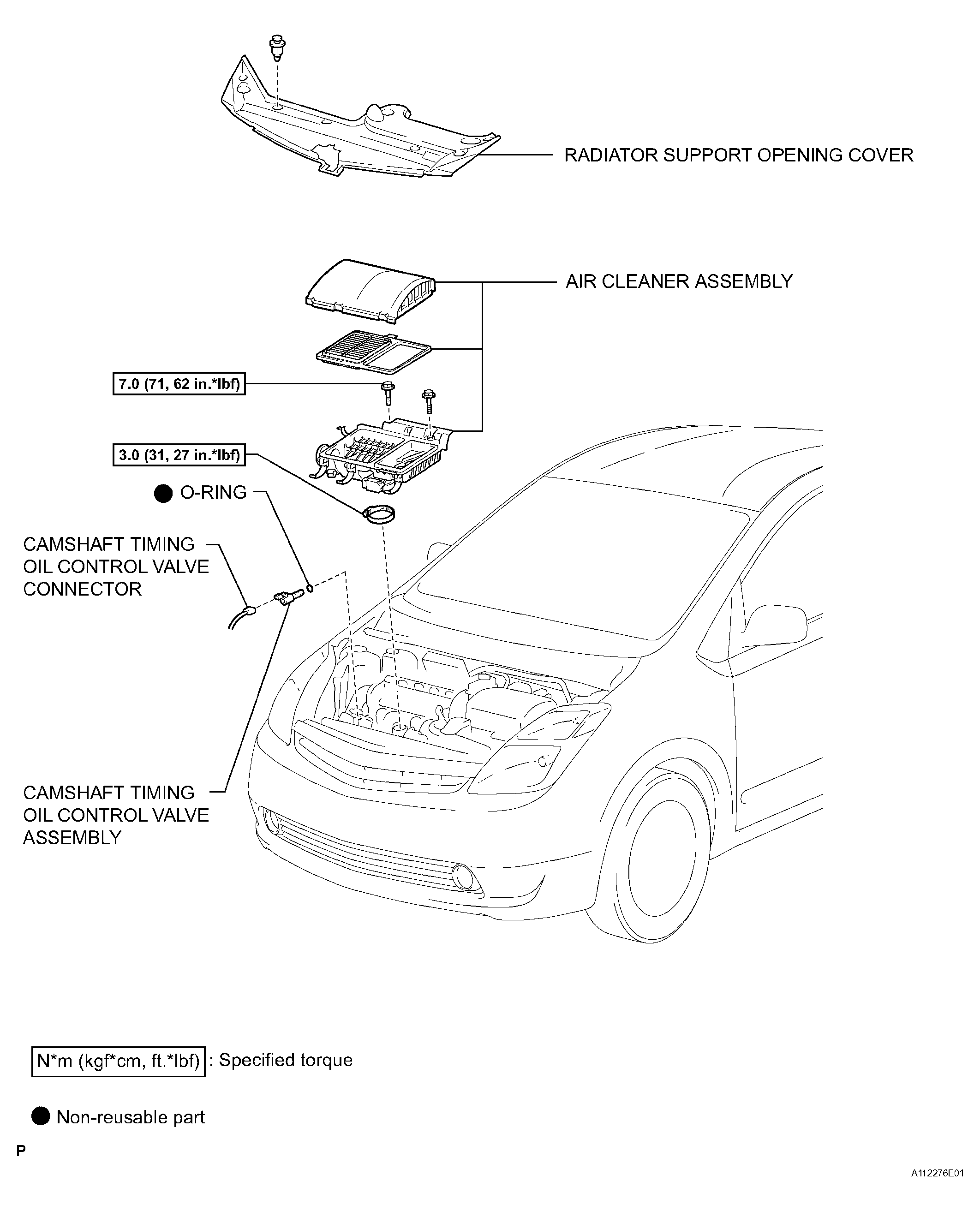

Fig 1: Identifying Camshaft Timing Oil Control Valve Assembly Components
G04472299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
