Crankshaft Position Sensor: Components

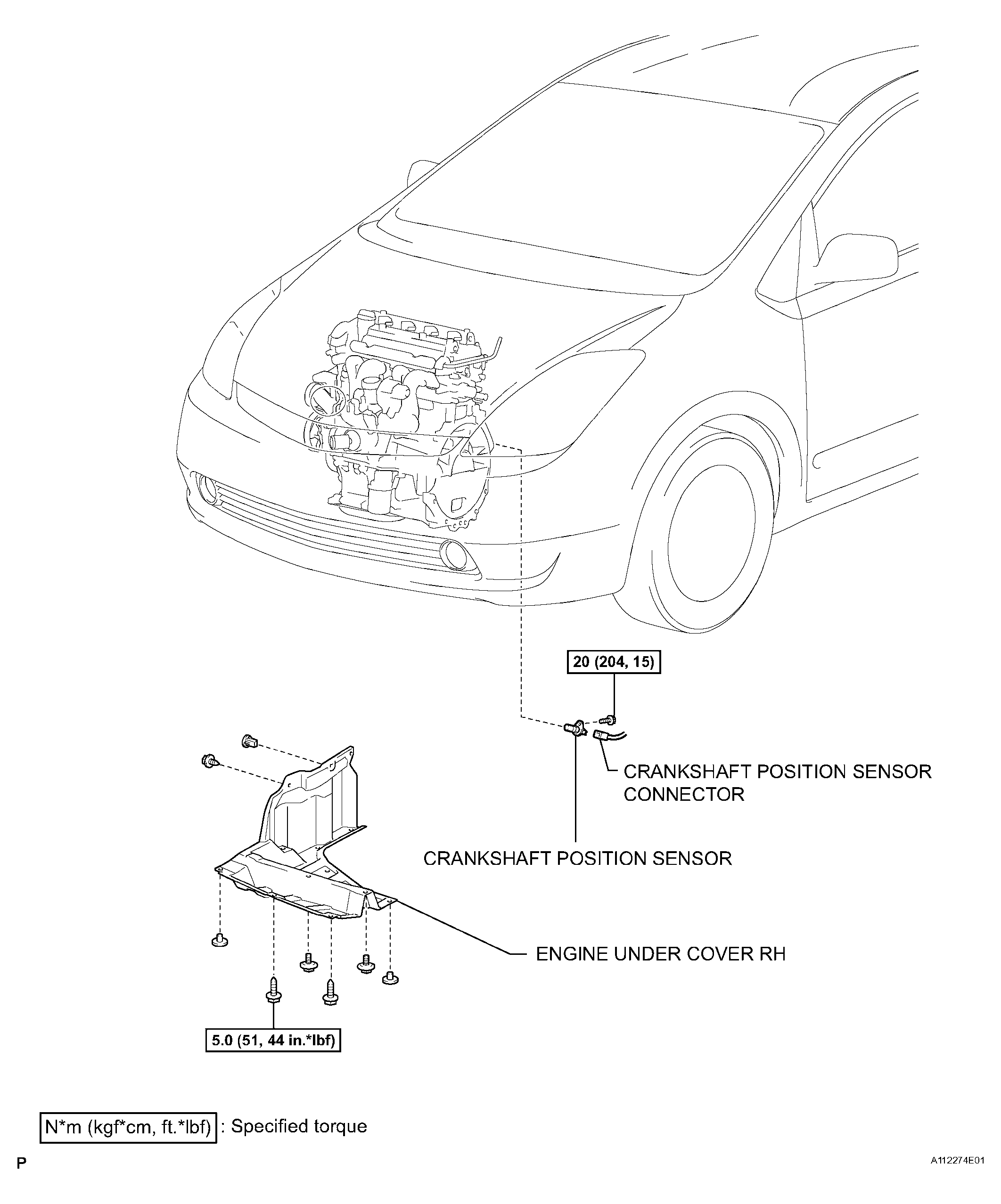

Fig 1: Identifying Crankshaft Position Sensor Components
G04472305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
