Engine Control System (1NZ-FXE): ECM: Components

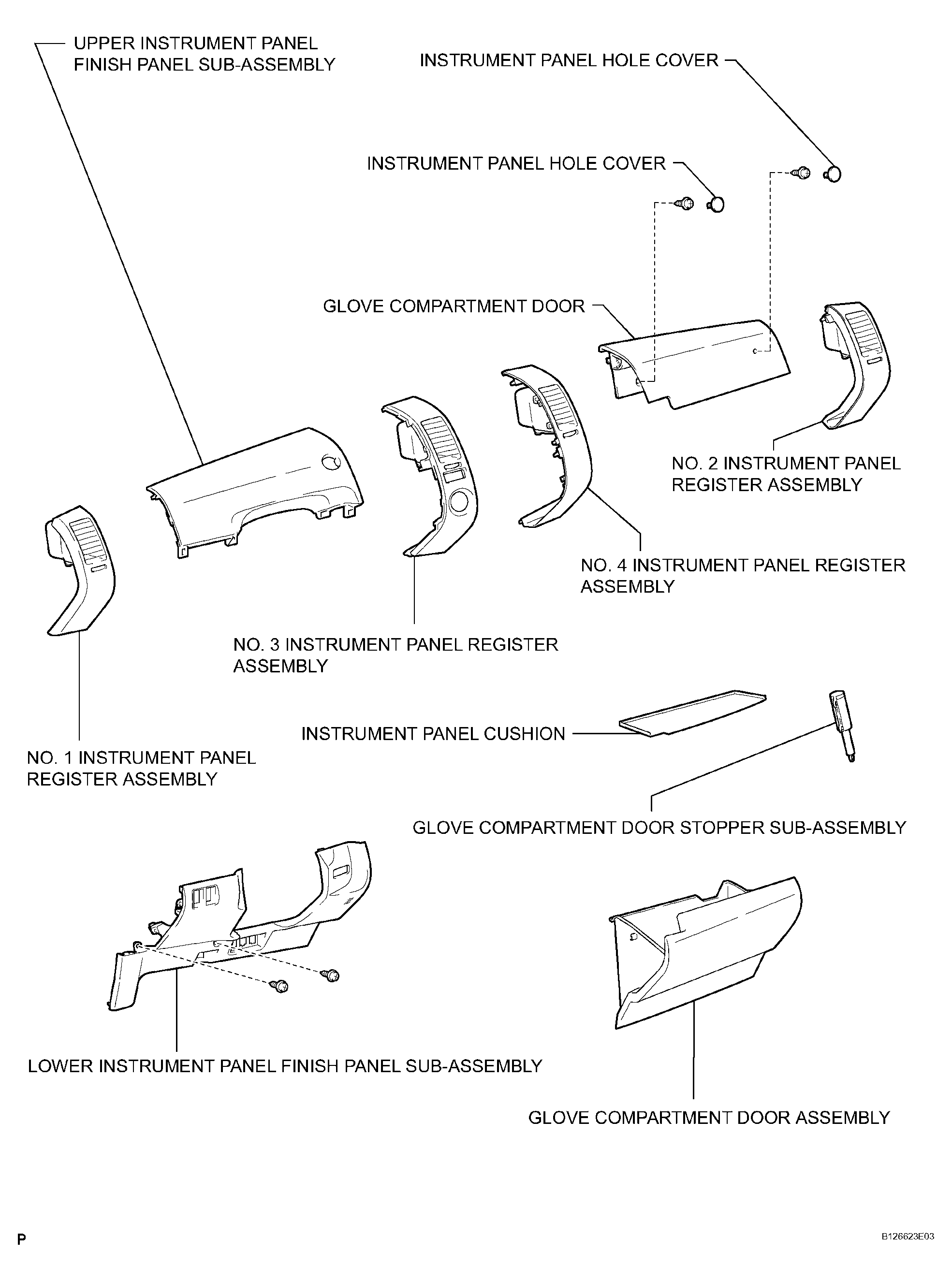

Fig 1: Identifying ECM Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

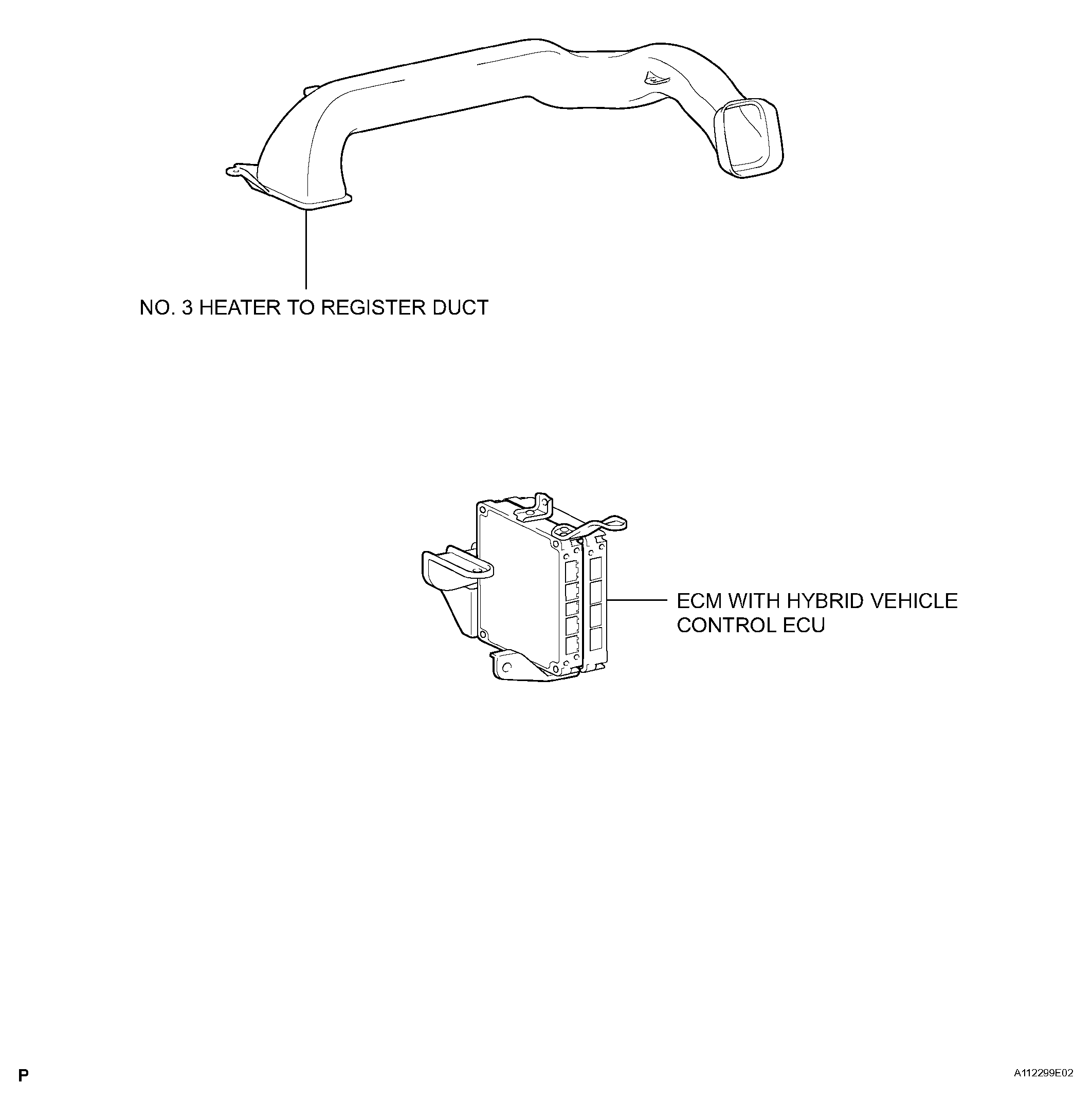

Fig 2: Identifying ECM Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

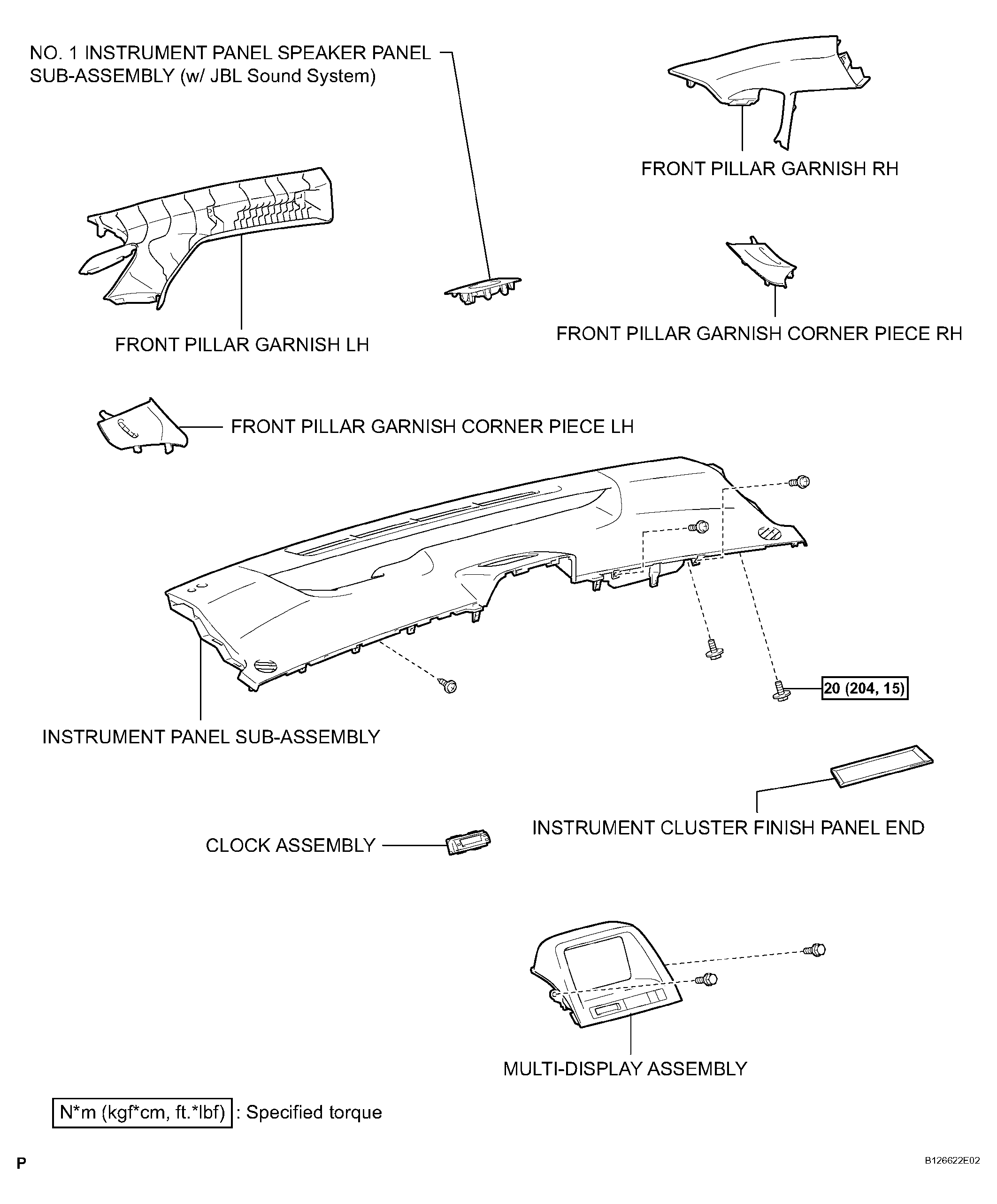

Fig 3: Identifying ECM Components (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

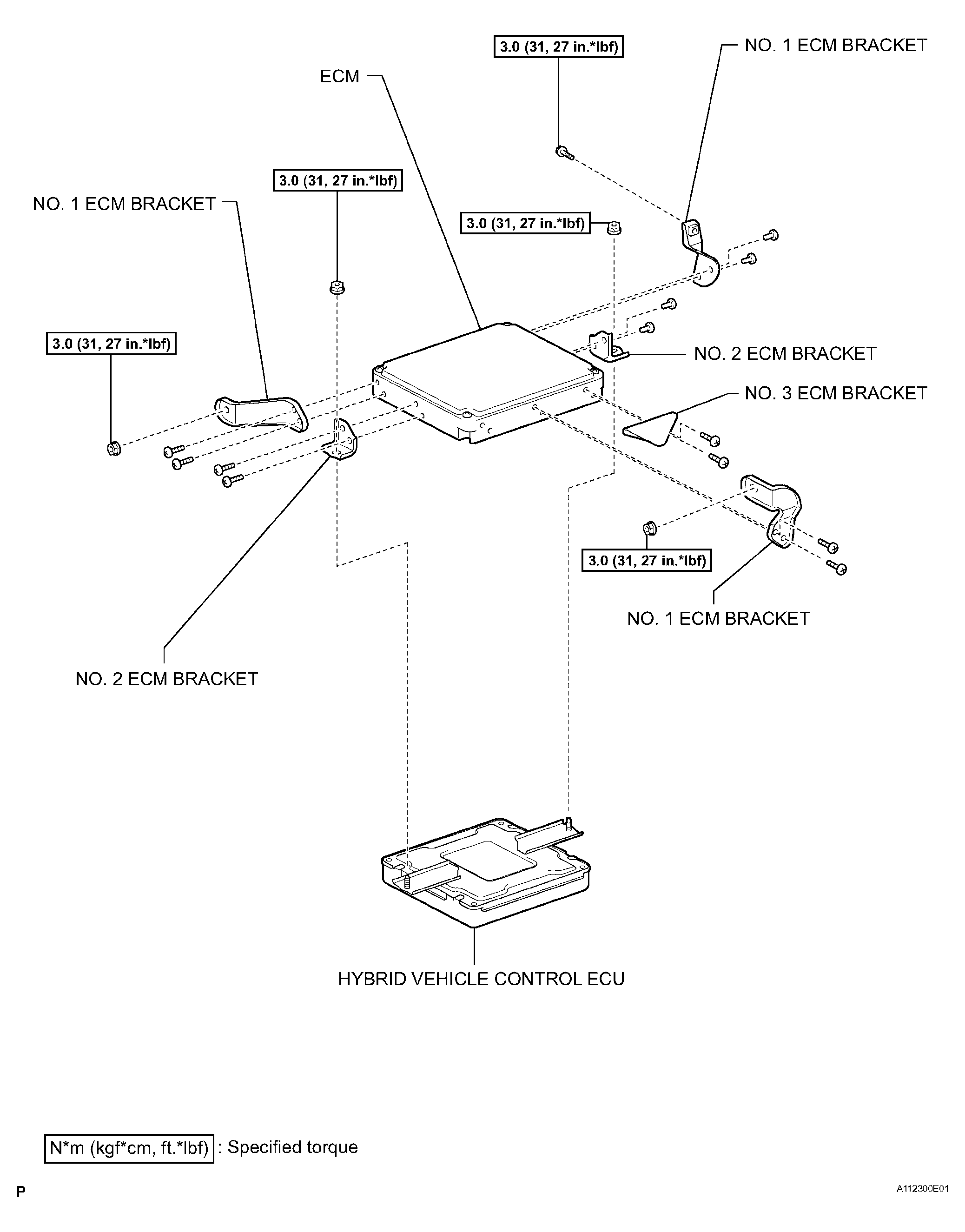

Fig 4: Identifying ECM Components (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
