Engine Control System (1NZ-FXE): ECM: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE INSTRUMENT PANEL SUB-ASSEMBLY
1. Remove the instrument panel (see REMOVAL ).
REMOVE NO. 3 HEATER TO REGISTER DUCT (See REMOVAL )
REMOVE ECM
1. Disconnect the 4 ECM connectors.
2. Disconnect the 4 hybrid vehicle control ECU connectors.

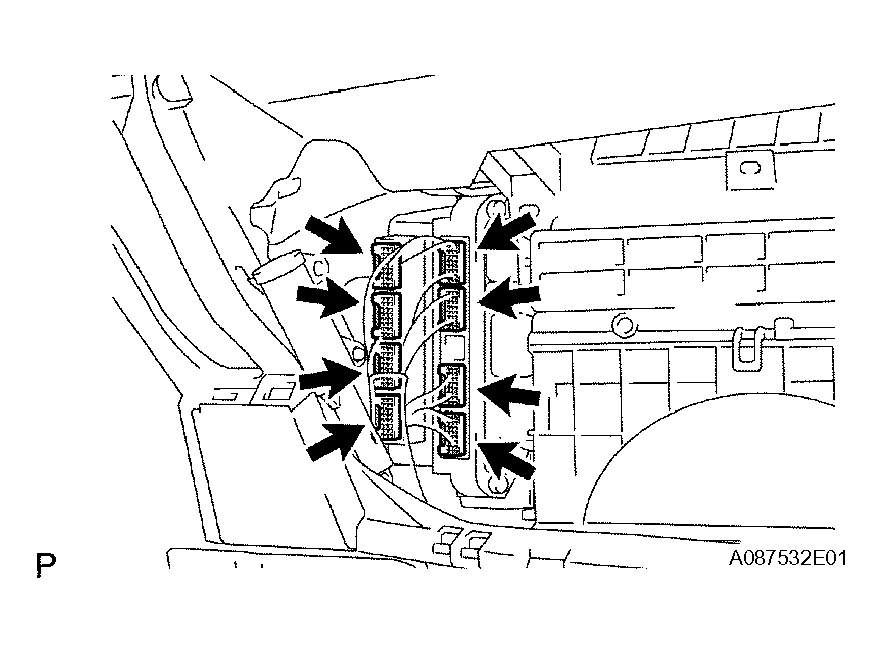

  Fig 1: Disconnecting 4 ECM Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

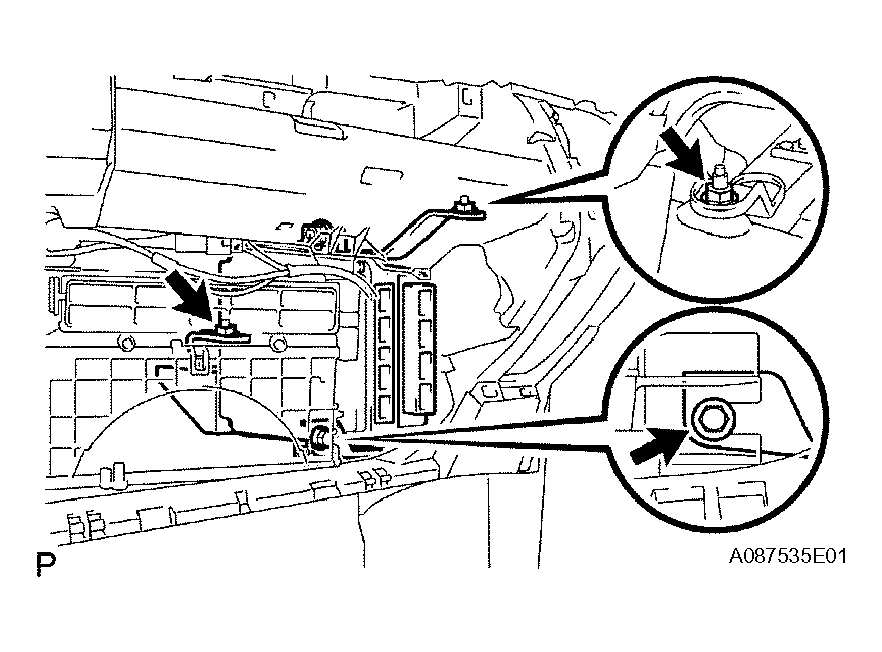

3. Remove the 2 nuts and bolt, and ECM with bracket.

  Fig 2: Removing ECM With Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

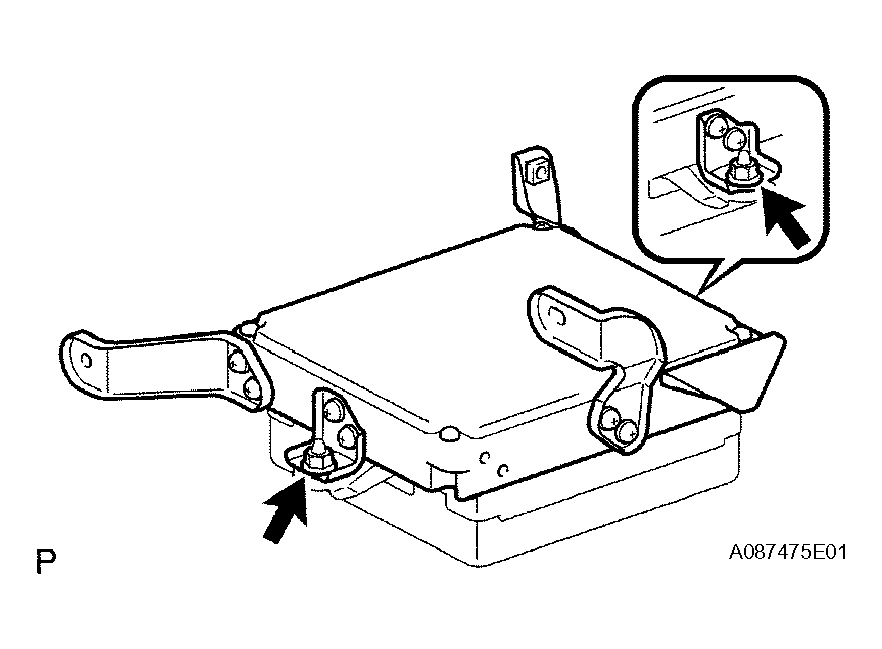

4. Remove the 2 nuts and ECM.

  Fig 3: Removing Nuts And ECM
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

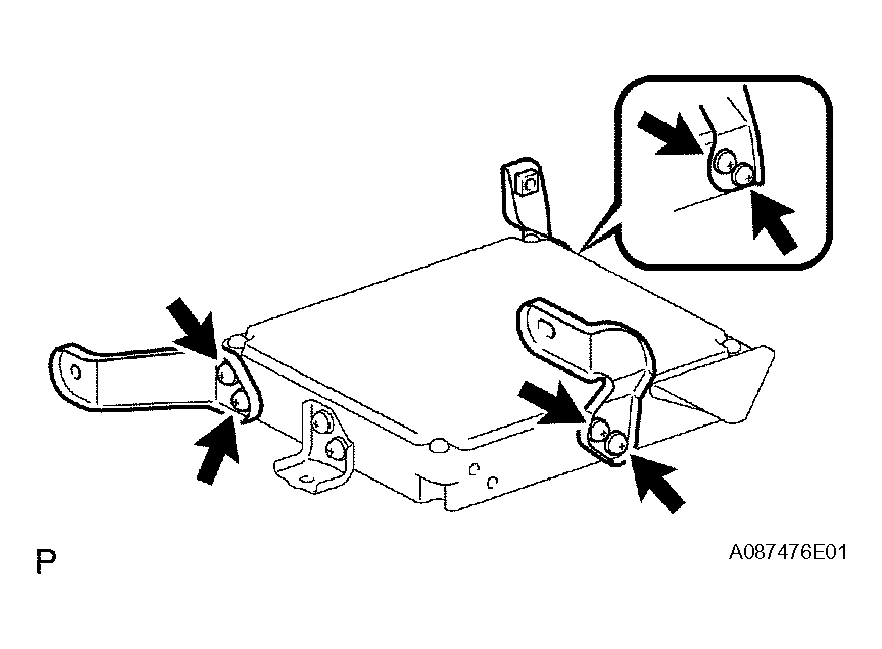

5. Remove the 6 screws and 3 No. 1 ECM brackets.

  Fig 4: Removing Screws And 3 No. 1 ECM Brackets
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

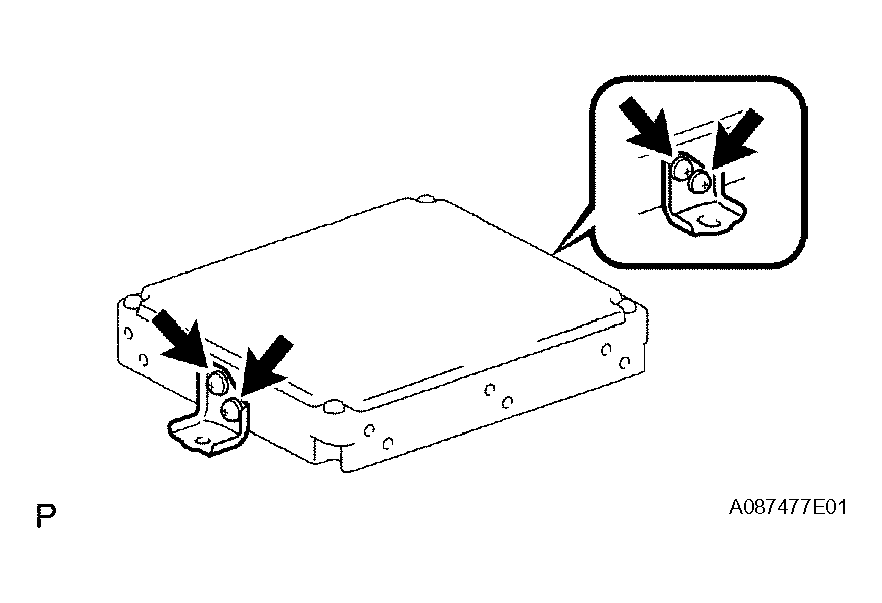

6. Remove the 4 screws and 2 No. 2 ECM brackets.

  Fig 5: Removing Screws And 2 No. 2 ECM Brackets
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

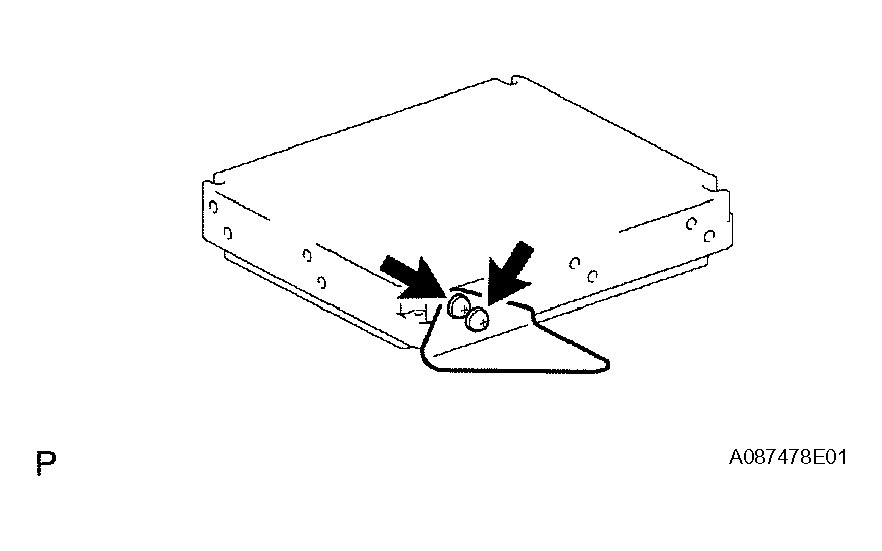

7. Remove the 2 screws and No. 3 ECM bracket.

  Fig 6: Removing Screws And No. 3 ECM Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
