Knock Sensor: Installation

INSTALL KNOCK SENSOR
1. Install the knock sensor with the nut.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

  NOTE: Be careful to install the knock sensor in the correct direction.
2. Connect the knock sensor connector.

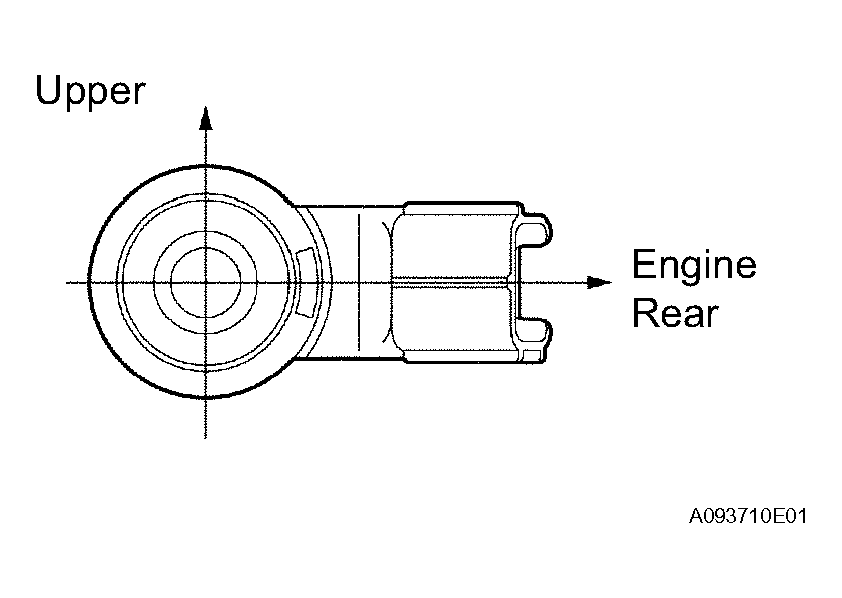

  Fig 1: Installing Knock Sensor With Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INTAKE MANIFOLD
1. Install a new gasket to the cylinder head.

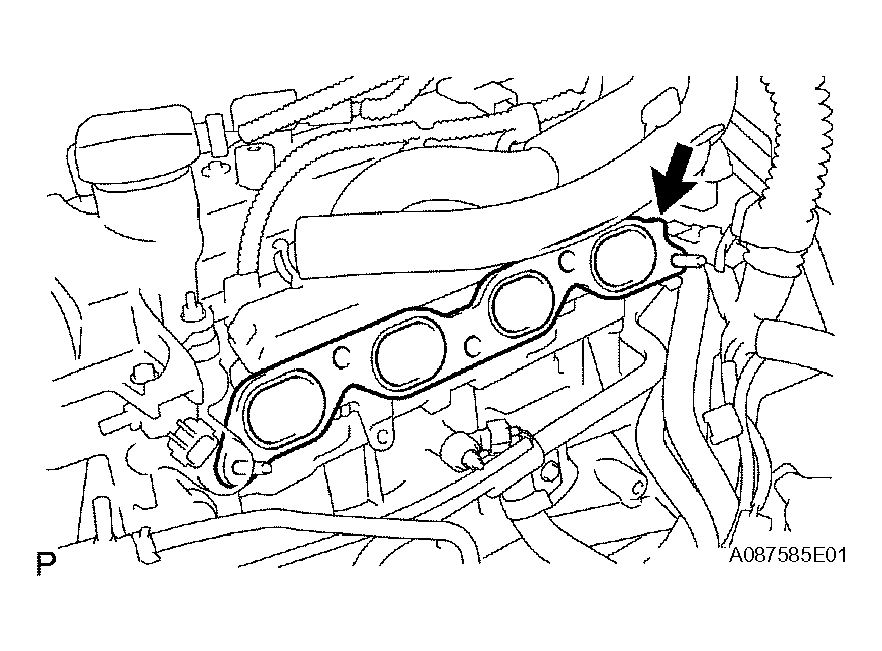

  Fig 2: Installing New Gasket To Cylinder Head
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the intake manifold with the 3 bolts and 2 nuts.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
3. Install the No. 1 fuel vapor feed hose to the hose clamp.

  Fig 3: Installing Fuel Vapor Feed Hose To Hose Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the harness clamp bracket with the bolt.
  Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)
5. Install the connector clamp.
6. Install the 3 wire harness clamps.

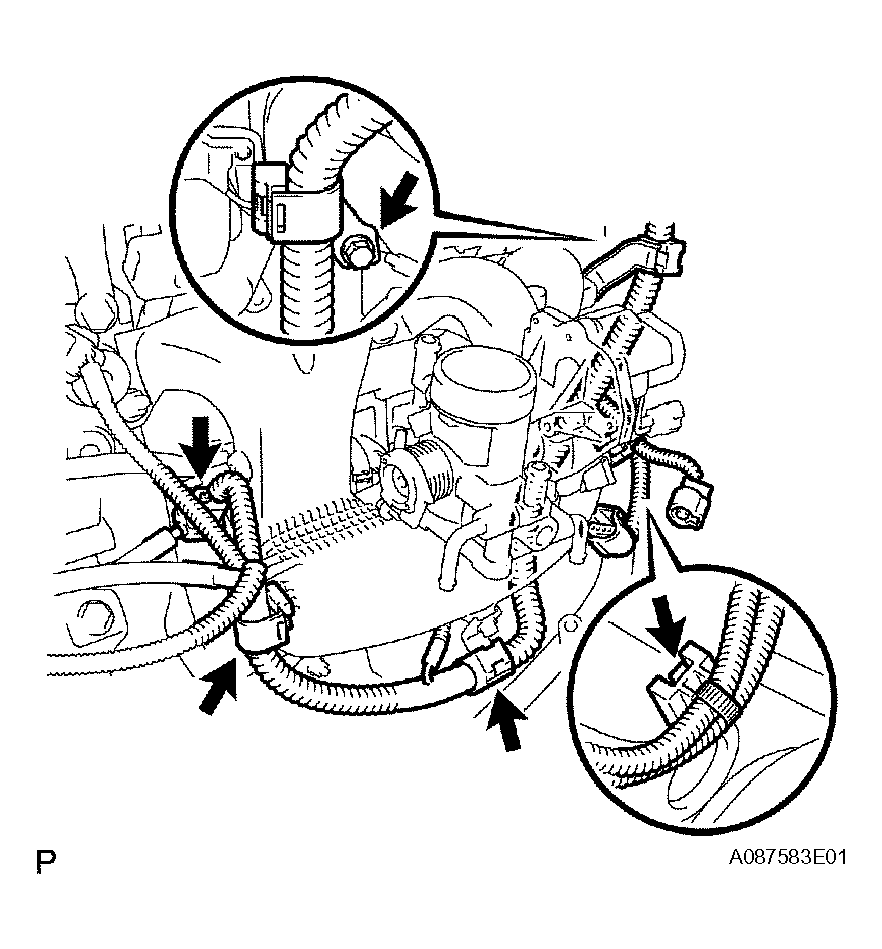

  Fig 4: Installing Connector Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Connect the throttle position sensor connector.
8. Connect the throttle control motor connector.

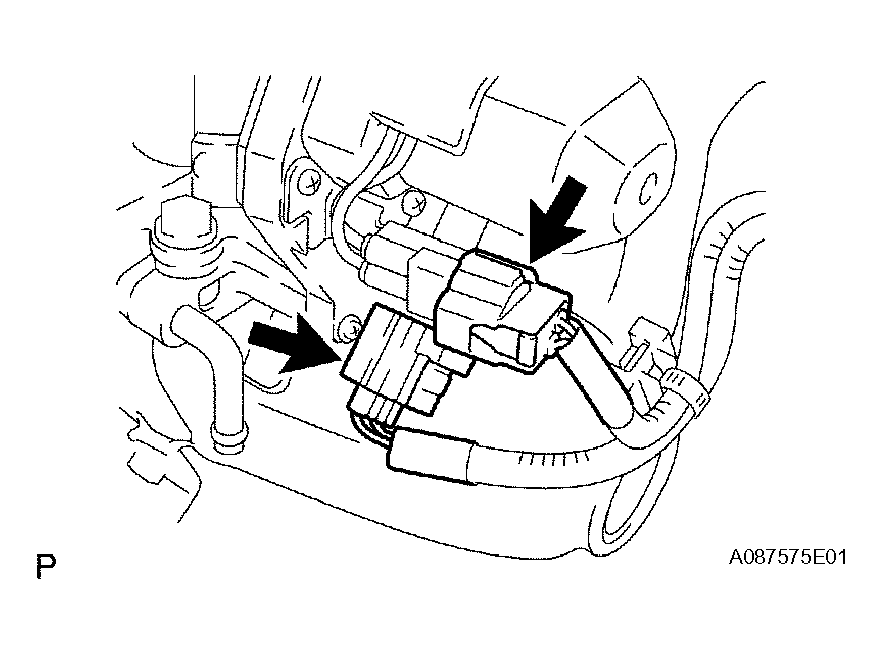

  Fig 5: Connecting Throttle Position Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Connect the No. 2 water by-pass hose.
10. Connect the water by-pass hose.

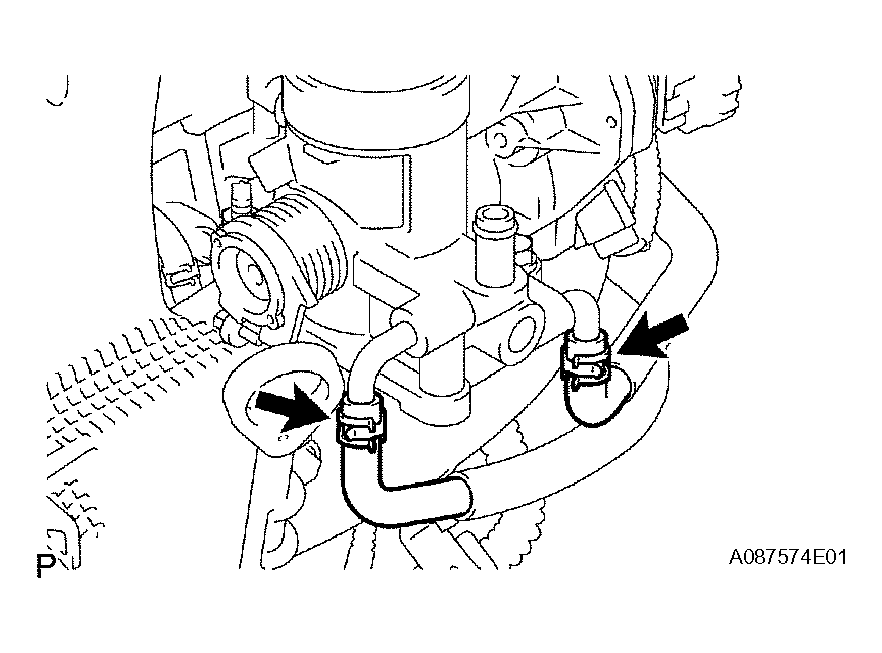

  Fig 6: Connecting Water By-Pass Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. Connect the No. 1 fuel vapor feed hose.
12. Connect the No. 2 ventilation hose.
13. Connect the ventilation hose.

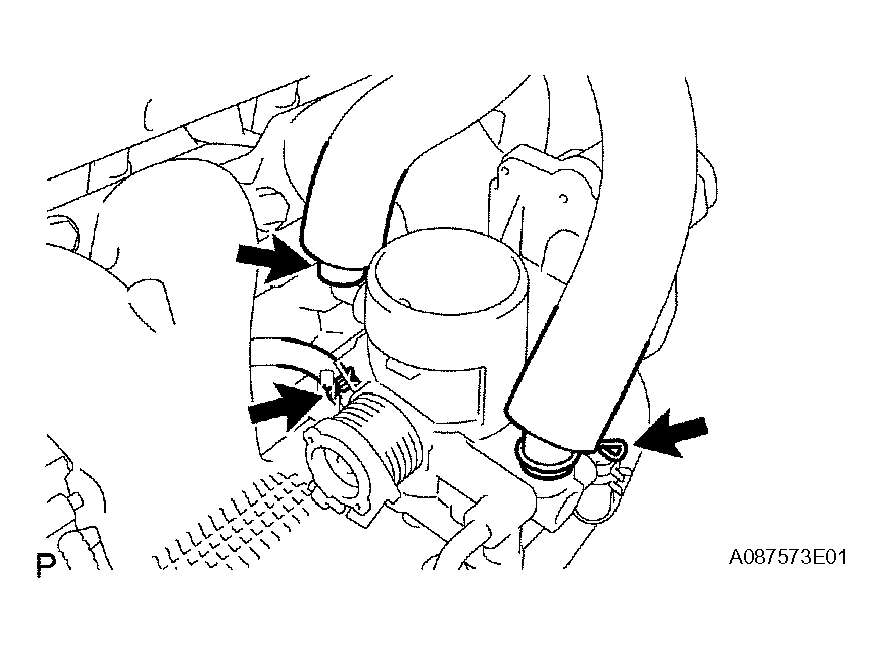

  Fig 7: Connecting No. 1 Fuel Vapor Feed Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OIL DIPSTICK GUIDE
1. Apply a light coat of engine oil to a new O-ring and install it to the dipstick guide.

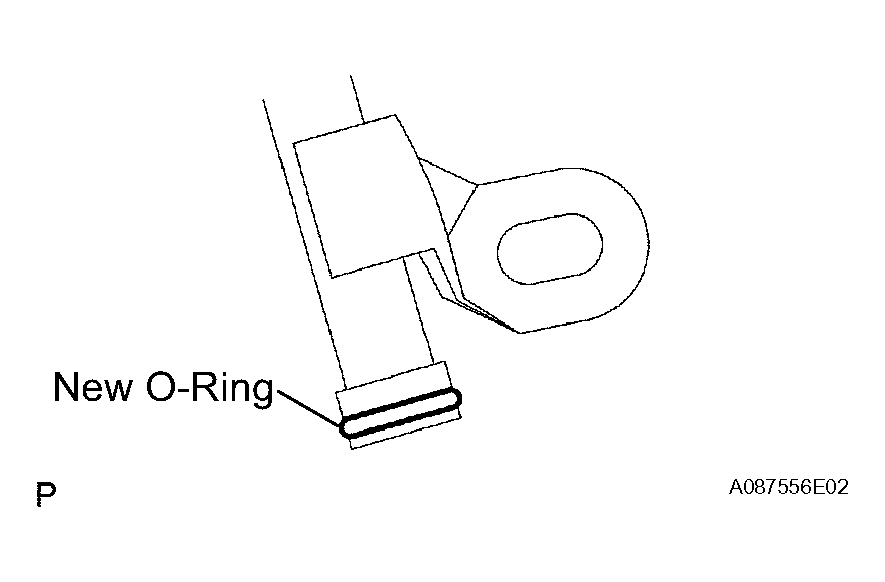

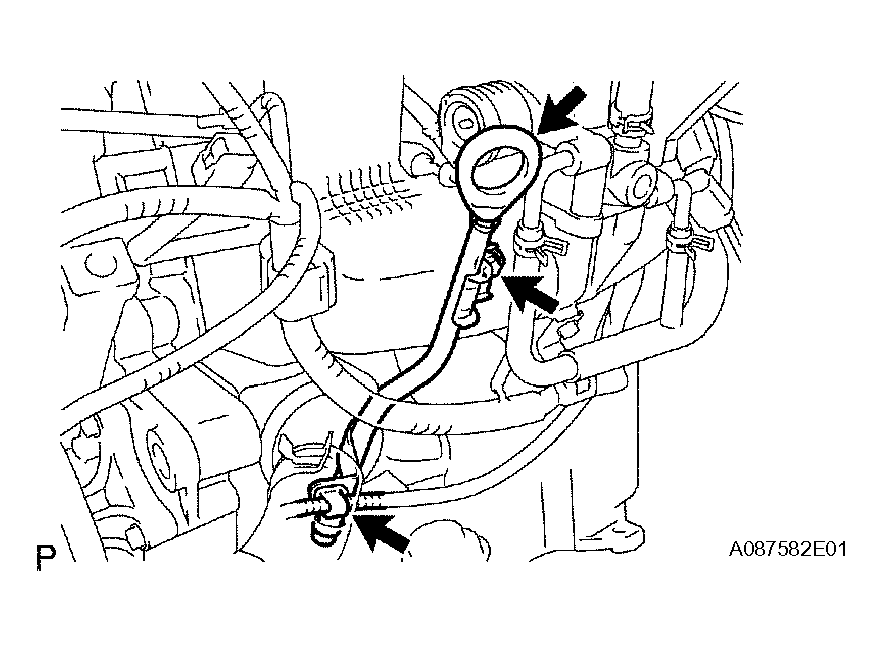

  Fig 8: Installing O-Ring And To Dipstick Guide
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the dipstick guide with the bolt.
  Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

  NOTE: Be careful that the O-ring is not cracked or jammed when installing it.
3. Connect the wire harness clamp.
4. Install the dipstick.
INSTALL AIR CLEANER ASSEMBLY (See INSTALLATION )

Fig 9: Installing Dipstick Guide With Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
ADD ENGINE COOLANT (See ON-VEHICLE INSPECTION )
CHECK FOR ENGINE COOLANT LEAKS (See ON-VEHICLE INSPECTION )
INSTALL ENGINE UNDER COVER LH
INSTALL RADIATOR SUPPORT OPENING COVER (See INSTALLATION )
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
