Throttle Body: Components

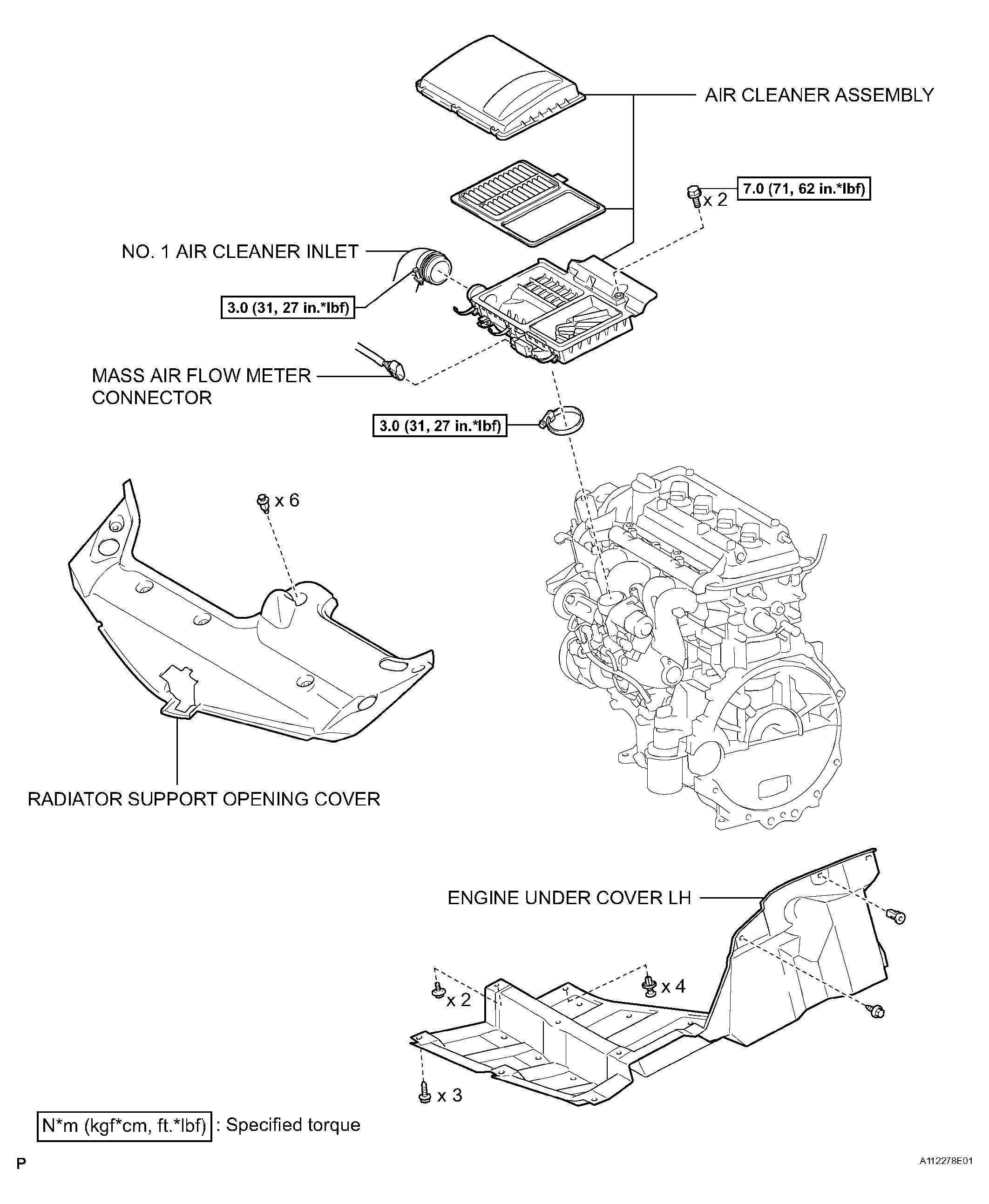

Fig 1: Identifying Throttle Body Components (1 Of 2)
G04472311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

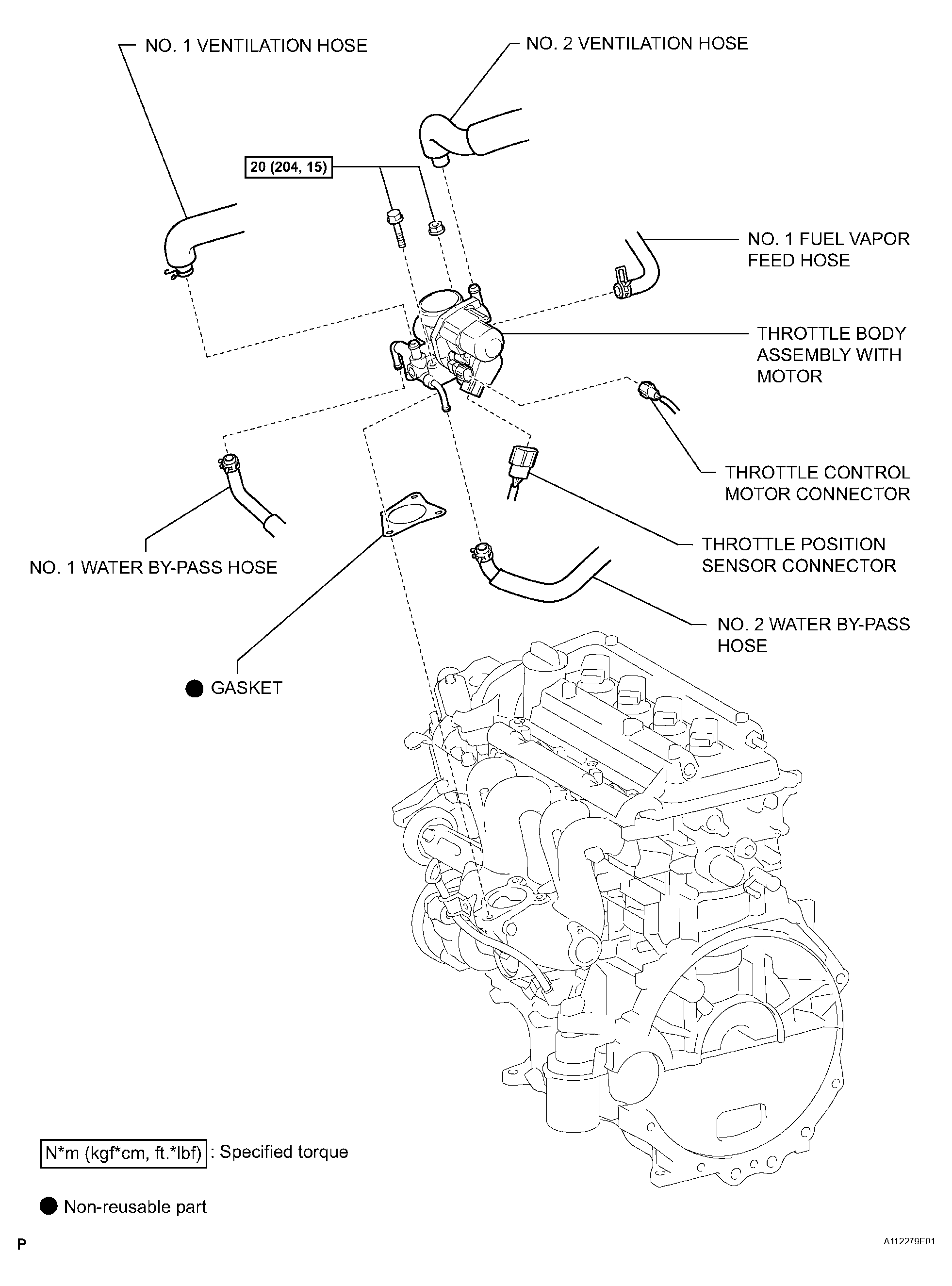

Fig 2: Identifying Throttle Body Components (2 Of 2)
G04472312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
