Throttle Body: Installation

INSTALL THROTTLE BODY ASSEMBLY WITH MOTOR

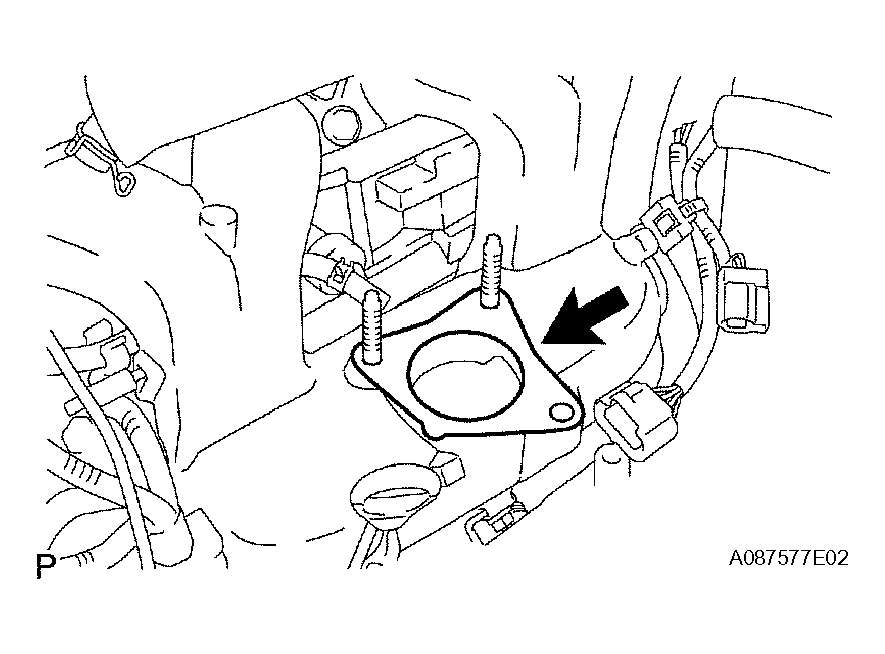

1. Install a new gasket to the intake manifold.

  Fig 1: Installing Gasket To Intake Manifold
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

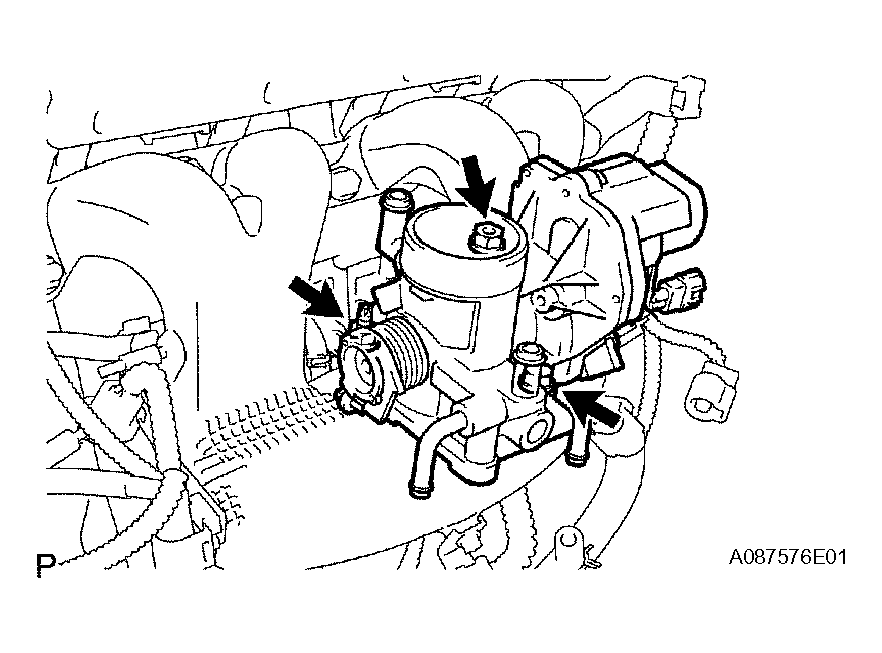

2. Install the throttle with motor body with the bolt and 2 nuts.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

  Fig 2: Installing Throttle With Motor Body With Bolt And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

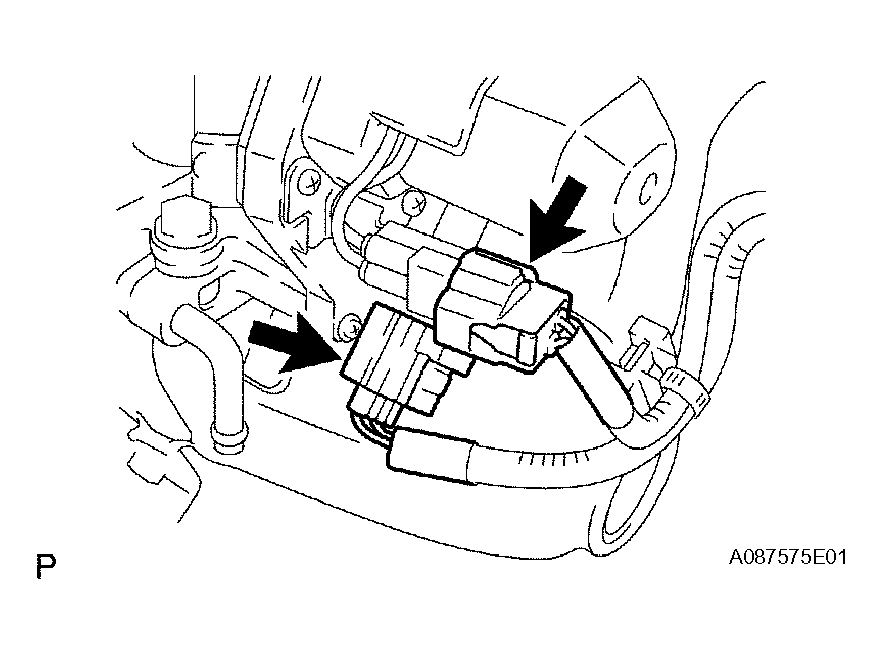

3. Connect the throttle position sensor connector.
4. Connect the throttle control motor connector.

  Fig 3: Connecting Throttle Position Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

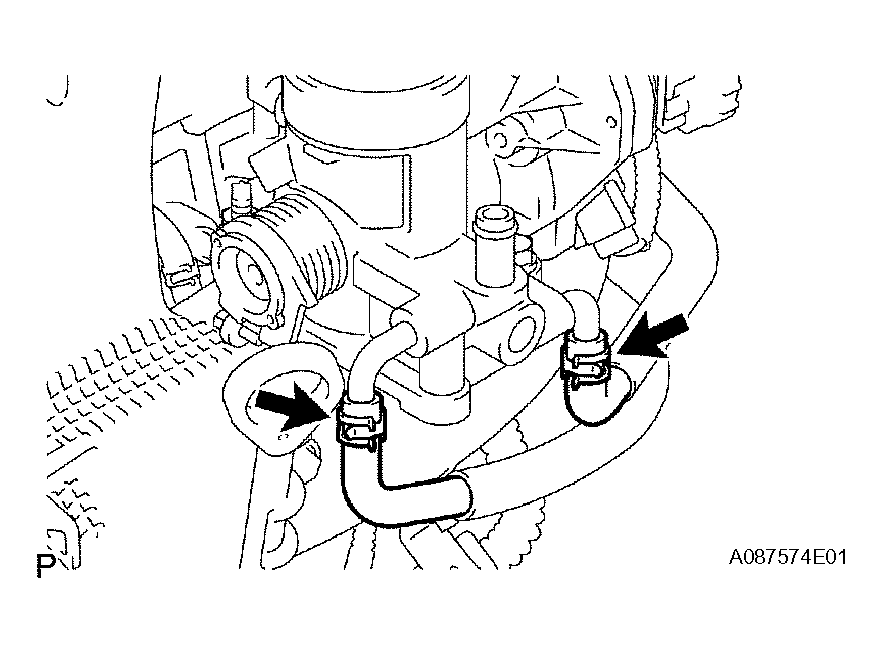

5. Connect the No. 2 water by-pass hose.
6. Connect the water by-pass hose.

  Fig 4: Connecting Water By-Pass Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

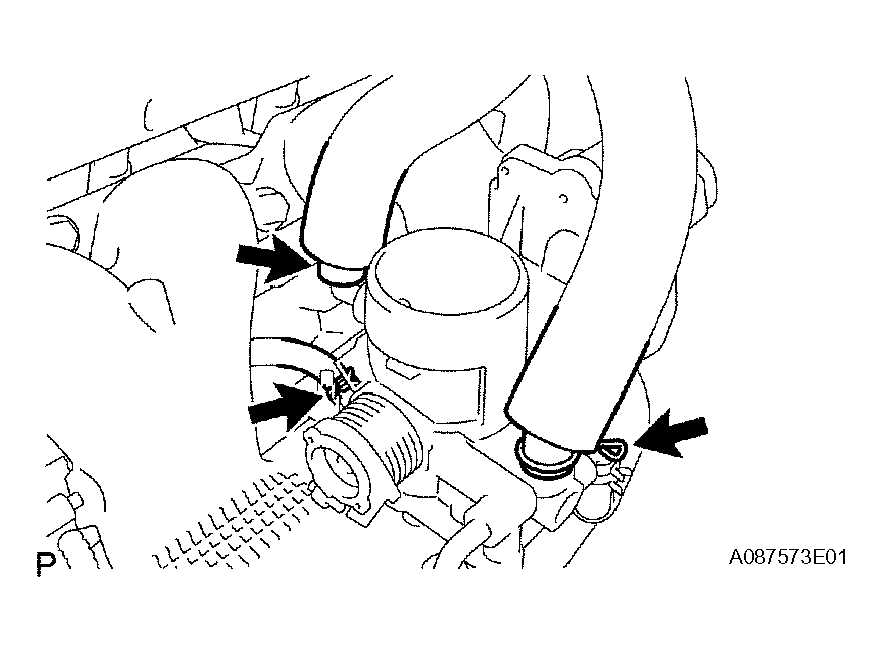

7. Connect the No. 1 fuel vapor feed hose.
8. Connect the No. 2 ventilation hose.
9. Connect the ventilation hose.

  Fig 5: Connecting Ventilation Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER ASSEMBLY

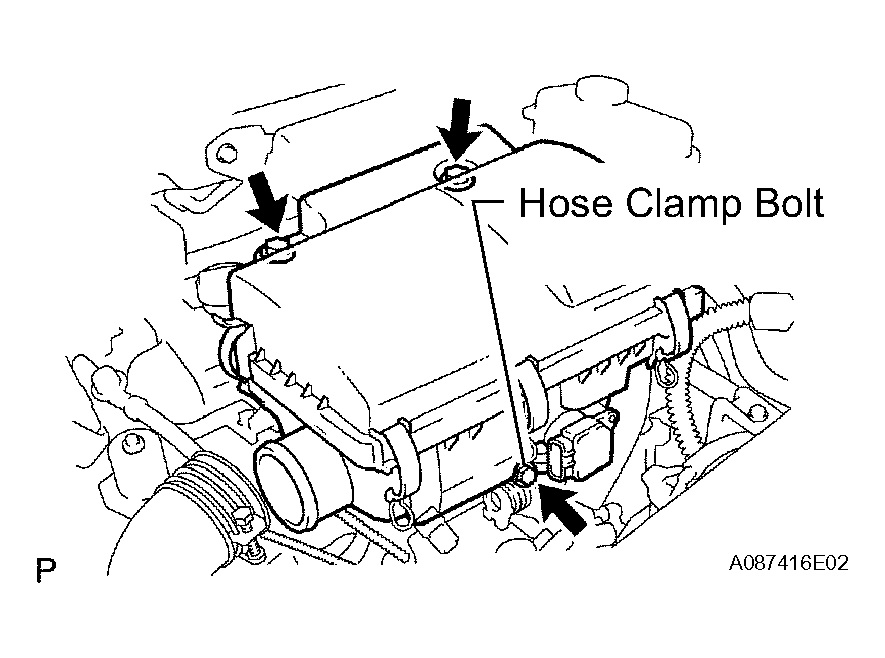

1. Install the air cleaner with the 2 bolts.
  Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)
2. Tighten the hose clamp bolt.
  Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)
3. Connect the No. 1 air cleaner inlet, and tighten the hose clamp bolt.
  Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)
4. Connect the MAF meter connector.

  Fig 6: Connecting MAF Meter Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
ADD ENGINE COOLANT (See ON-VEHICLE INSPECTION )
CHECK FOR ENGINE COOLANT LEAKS (See ON-VEHICLE INSPECTION )
INSTALL ENGINE UNDER COVER LH

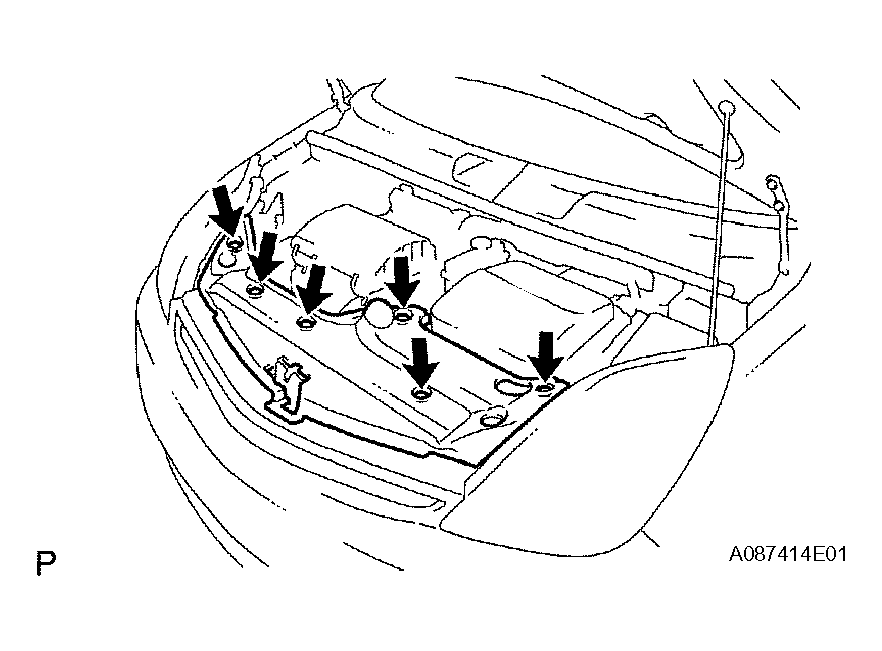

INSTALL RADIATOR SUPPORT OPENING COVER
1. Install the cover with the 6 clips.
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

  Fig 7: Installing Cover With Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
